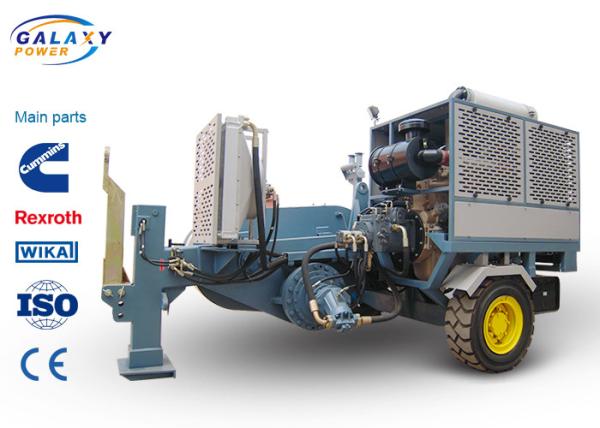

Hydraulic Pullers Cable Pulling Equipment 280KN For Overhead Line Construction
Hydraulic Pullers Cable Pulling Equipment 280KN For Overhead Line Construction
Specifications
Brand Name :
GALAXY
Model Number :
GX280
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
30 days
Packaging Details :
bulk
Maximum tractive force :
280KN
Maximum sustained traction :
250KN
Maximum sustained tractive speed :
5km/h
Diameter of traction wheel :
960mm
Dimensions of the whole machine :
5800×2500×2850mm
Total weight :
12800kg
Description

Overhead Line Construction or Cable Pulling Equipment 280KN in Stringing Equipment Hydraulic Pullers

Performance Parameter

Maximum tractive force 280KN
Maximum sustained traction 250KN
Correspending speed 2.5km/h
Maximum sustained tractive speed 5km/h
Corresponding tension 120KN

Structure Parameter

Diameter of traction wheel 960mm
Slot number 11
Maximum wire rope diameter 38mm
Allow for maximum connector diameter 1600mm
Total weight 12800kg
Dimensions of the whole machine 5800×2500×2850mm

Main Configuration Instructions

Engine Cummins
Main variable pump German Rexroth
The main motor, reduction gears German Rexroth
Tailstock motor America Eton
Hydraulic instrument German

Hydraulic puller fit to pull one rope in stringing operations of overhead transmission lines.

One hydraulic circuit lets to vary continuously the speed in both directions by operating one only control device.

  • One pair of multigrooved steel capstans fit for stringing obe steel rope.

  • Machine control panel equipped with hydraulic dynamometer and mechanical metercounter.

  • metercounter and speedometer.

  • Chassis with rigid axle, overrun brake and detachable drawbar for towing at low speed in workplace.

  • Heat exchanger to cool the oil in the hydraulic circuit.

  • Reelwinder fit for a 1900-mm-dia reel, with automatic ropewinder.
