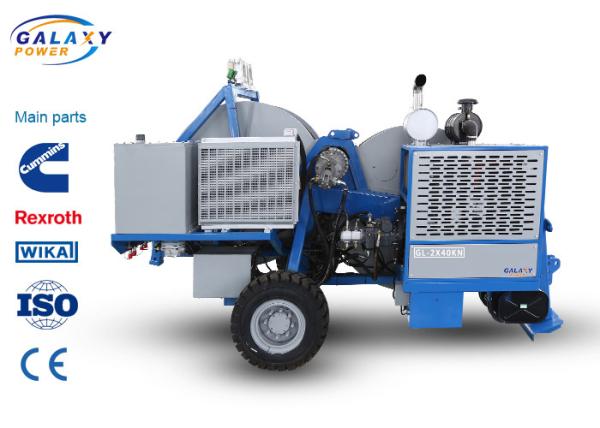

6230kg Hydraulic Cable Tensioner 5km/H Max Reverse Pulling Speed 40mm Trial Traverse
6230kg Hydraulic Cable Tensioner 5km/H Max Reverse Pulling Speed 40mm Trial Traverse
6230kg Hydraulic Cable Tensioner 5km/H Max Reverse Pulling Speed 40mm Trial Traverse
6230kg Hydraulic Cable Tensioner 5km/H Max Reverse Pulling Speed 40mm Trial Traverse
6230kg Hydraulic Cable Tensioner 5km/H Max Reverse Pulling Speed 40mm Trial Traverse
6230kg Hydraulic Cable Tensioner 5km/H Max Reverse Pulling Speed 40mm Trial Traverse
Specifications
Brand Name :
GALAXY
Model Number :
GL2×40
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
30 days
Packaging Details :
Bulk
Type :
Hydraulic Tensioner
Max intermittent tension :
2x45/1x90kN
Max continuous tension :
2x40/1x80kN
Bull-wheel diameter :
1300/1500mm
Overall dimension :
4300×2250×2700mm
Max reverse pulling speed :
5km/h
Description

Transmission Line Equipment Max Continuous Tension: 2X40KN Hydraulic Laying Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains.

It can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains.

Configuration

  1. Hydraulic dynamometers
  2. Hydraulic oil cooling system
  3. Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
  4. Digital speed and meter counter
  5. Hydraulic front stabilizer
  6. Grounding connection point

Hydraulic Transmission

  1. Hydraulic Tensioner can realize step less speed
  2. Hydraulic Tensioner is provided with tension presetting system

Additional Devices

  1. Lighting system for the trailer
  2. Trailer for towing at max speed of 30 km/h
  3. Swivel guide rope roller
  4. Digital speed and meter counter
  5. 2 hydraulic rope/conductor clamp (extra charge)

Performance parameter

Model Maximum intermittent tension Maximum sustained tension Correspending speed Maximum pay-off speed Corresponding tension Maximum back-traping force Maximum back-traping speed
KN KN km/h km/h KN KN km/h
GL1×20 20 5
GL1×40 45 40 2.5 5 20 35 5
GL1×50 50 40 2.5 5 25 45 2.4
GL2×35 2×40/1×80 2×35/1×70 2.5 5 2×20/1×40 2×20/1×40 5
GL2×40 2×45/1×90 2×40/1×80 2.5 5 2×20/1×40 2×35/1×70 5
GL2×50 2×55/1×110 2×50/1×100 2.5 5 2×25/1×50 2x45/1x90 5
GL2×70 2×70 2×65 2.5 5 2×25 2×60/1×120 5

Structure parameter
Bottom diameter of tension wheel groove 1300/1500mm
Trial traverse diameter 40mm
Slot number 2×5
Total weight 6230kg
Boundary dimension 4300×2250×2700mm

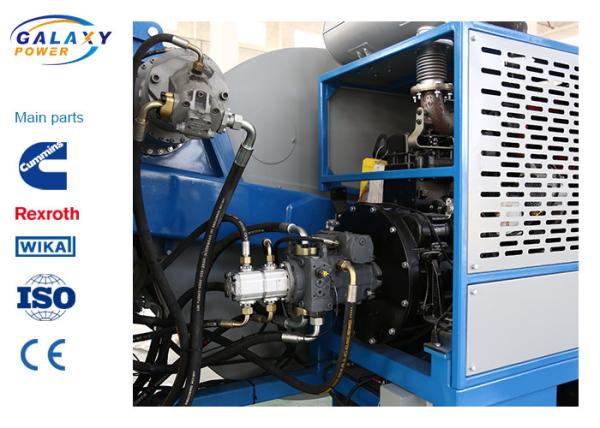

Engine
Diesel 77kw(103hp)
Cooling system Water
Electric system 24V

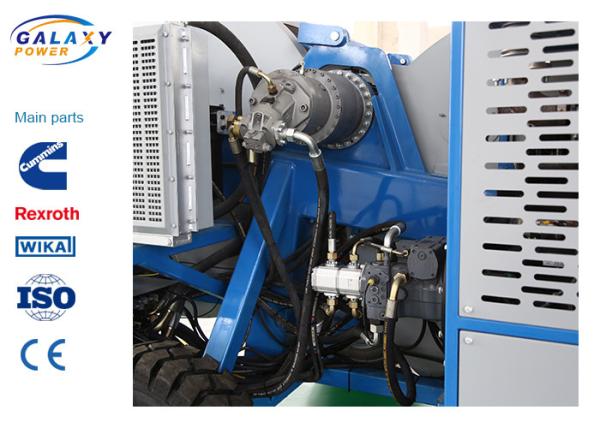

Main configuration instructions
Engine Cummins
Reduction gear German Rexroth
Hydraulic motor German Rexroth
Pressure gage German
Pressure pump German Rexroth
Operating handle German Rexroth

6230kg Hydraulic Cable Tensioner 5km/H Max Reverse Pulling Speed 40mm Trial Traverse
