Specifications
Brand Name :
GALAXY
Model Number :
GX120
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
bulk
Maximum Tractive Force :
120KN
Corresponding Tension :
50KN
Diameter of Traction wheel :
600mm
Cooling System :
water
Feeding :
disel
Electric System :
24V
Description

Stringing Equipment 12T in Main Variable Pump German Rexroth and Hydraulic Instrument German

Product Presentation

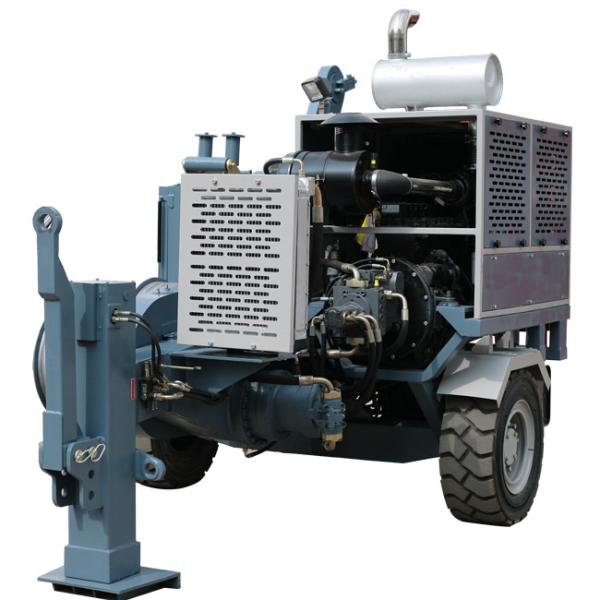

Hydraulic puller fit to pull one rope in stringing operations of overhead transmission lines.

One hydraulic circuit lets to vary continuously the speed in both directions by operating one only control device.

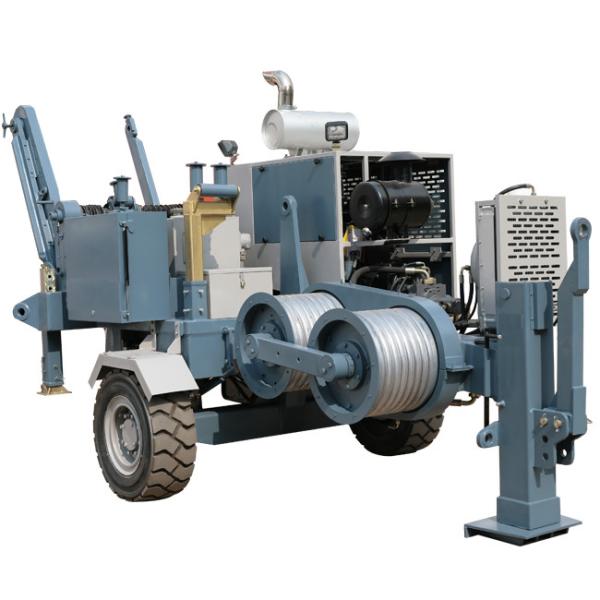

  • One pair of multigrooved steel capstans fit for stringing obe steel rope.
  • Machine control panel equipped with hydraulic dynamometer and mechanical metercounter.
  • Device for setting the pull force, that adjust the speed in order to maintain the force set.
  • Chassis with rigid axle, overrun brake and detachable drawbar for towing at low speed in workplace.
  • Hydraulic back stabilisers and manual front stabilisers.
  • Attachments for anchorage and for lifting.
  • Heat exchanger to cool the oil in the hydraulic circuit.
  • Reelwinder fit for a 1600-mm-dia reel, with automatic ropewinder.

Structure Parameter

Diameter of traction wheel 600mm
Dimensions of the whole machine 4000×2300×2300mm
Allow for maximum connector diameter 1400mm
maximum wire rope diameter 24mm
Slot number 10
Total weight 4800kg

Performance Parameter

Maximum tractive force 120KN
Maximum sustained traction 100KN
Correspending speed 2.5km/h
Maximum sustained tractive speed 5km/h
Corresponding tension 50KN

Main Configuration Instructions

Engine cummins
Main variable pump German Rexroth
The main motor, reduction gears German Rexroth
Tailstock motor America Eton
hydraulic instrument German

Engine

Feeding diesel
Cooling system water
Electric system 24V
