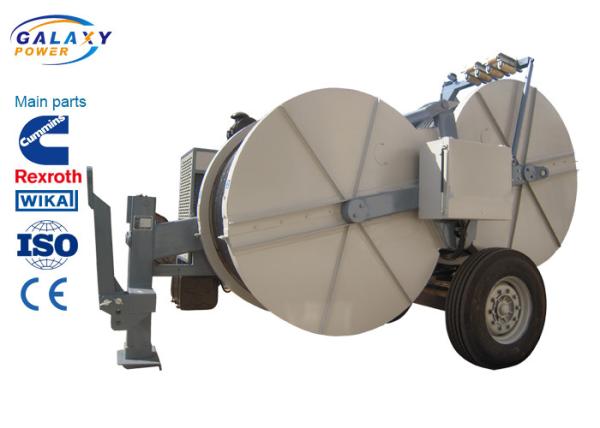

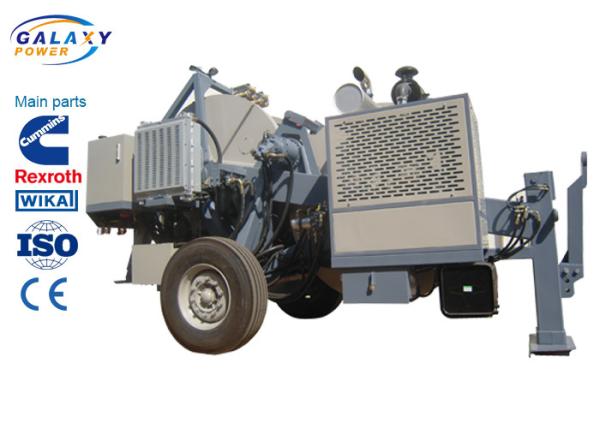

3.5T Transmission Line Equipment Cable Pulling Oil Cooling System Total 2200kg
3.5T Transmission Line Equipment Cable Pulling Oil Cooling System Total 2200kg
3.5T Transmission Line Equipment Cable Pulling Oil Cooling System Total 2200kg
3.5T Transmission Line Equipment Cable Pulling Oil Cooling System Total 2200kg
Specifications
Brand Name :
GALAXY
Model Number :
GX35TP
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
30 days
Packaging Details :
bulk
Bottom diameter of tension wheel groove :
1200mm
Trial traverse diameter :
34mm
Total weight :
2200kg
Boundary dimension :
4000×2000×2300mm
Maximum intermittent tension :
35KN
Correspending speed :
4.5km/h
Description

Transmission Line Equipment Hydraulic Puller-Tensioner Equipment 3.5T with Cummins Engine

Structure Parameter

Bottom diameter of tension wheel groove 1200mm
Trial traverse diameter 34mm
Total weight 2200kg
Boundary dimension 4000×2000×2300mm

Performance Parameter

Maximum intermittent tension 35KN
Maximum pull 35KN
Maximum sustained pull 20KN
Correspending speed 4.5km/h

Main Configuration Instructions

Engine Cummins
Reduction gear German Rexroth
Hydraulic motor German Rexroth
Pressure gage German
Pressure pump German Rexroth

Engine

Feeding diesel
Cooling system water
Electric system 24V

Product Introduction

Hydraulic puller-tensioner GX35TP designed to operate either as a tensioner and a puller, fit to string one rope or conductor.

One hydraulic circuit lets to tension at constant force even varying the speed of stringing.

  • pairs of steel capstans lined with multi-grooved nylon sectors.

    Device to control low-force tensioons(1-15KN), fit for OPGW cables.

  • Chassis with rigid axle, manual brake and detachable drawbar for towing at low speed in workplace.

  • Stabilisers, share and attachments for anchoring the machine.

  • Oil cooling system.

  • Auxiliary hydraulic circuit for additional equipment.

  • Grounding connection point.

3.5T Transmission Line Equipment Cable Pulling Oil Cooling System Total 2200kg

3.5T Transmission Line Equipment Cable Pulling Oil Cooling System Total 2200kg
