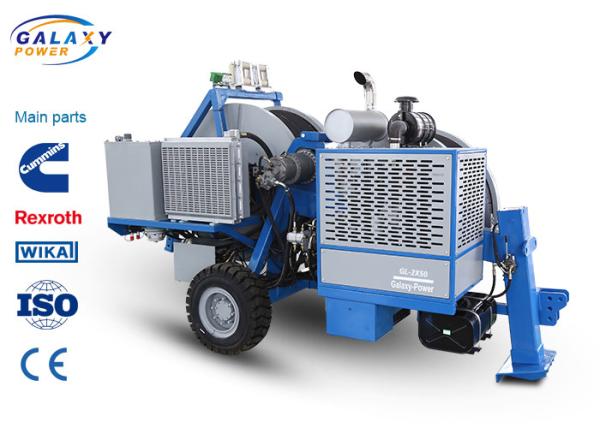

Pulling Type Conductor Stringing Machine , 2x50KN Tension Stringing Equipment
Pulling Type Conductor Stringing Machine , 2x50KN Tension Stringing Equipment
Pulling Type Conductor Stringing Machine , 2x50KN Tension Stringing Equipment
Pulling Type Conductor Stringing Machine , 2x50KN Tension Stringing Equipment
Pulling Type Conductor Stringing Machine , 2x50KN Tension Stringing Equipment
Pulling Type Conductor Stringing Machine , 2x50KN Tension Stringing Equipment
Specifications
Brand Name :
GALAXY
Model Number :
GL2×50
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
30 days
Packaging Details :
Bulk
Max intermittent tension :
2×55/1×110KN
Maximum sustained tension :
2×50/1×100KN
Bull-wheel diameter :
1300/1500mm
Overall dimension :
4700x2300x2700mm
Max reverse pulling speed :
5km/h
Type :
Hydraulic Tensioner
Description

Hydraulic Tensioner For Transmission Line Equipment Pulling Type 2x50KN Cable Tensioner Machine

Hydraulic Tensioner GL2x50 allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains. And it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains.

Configuration

  1. Hydraulic oil cooling system
  2. Hydraulic front stabilizer
  3. Grounding connection point
  4. 2 digital speed meters and meter counters
  5. Control instrument for hydraulic system and disel engine
  6. 2 hydraulic dynamometers
  7. Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Additional Devices

  1. Digital speed and meter counter
  2. Lighting system for the trailer
  3. Air brake system for the trailer(extra charge)
  4. 2 hydraulic conductor clamps for drum change operations (extra charge)

Performance parameter

Model Maximum intermittent tension Maximum sustained tension Correspending speed Maximum pay-off speed Corresponding tension Maximum back-traping force Maximum back-traping speed
KN KN km/h km/h KN KN km/h
GL1×20 20 5
GL1×40 45 40 2.5 5 20 35 5
GL1×50 50 40 2.5 5 25 45 2.4
GL2×35 2×40/1×80 2×35/1×70 2.5 5 2×20/1×40 2×20/1×40 5
GL2×40 2×45/1×90 2×40/1×80 2.5 5 2×20/1×40 2×35/1×70 5
GL2×50 2×55/1×110 2×50/1×100 2.5 5 2×25/1×50 2x45/1x90 5
GL2×70 2×70 2×65 2.5 5 2×25 2×60/1×120 5

Structure parameter
Bottom diameter of tension wheel groove 1300mm
Trial traverse diameter 40mm
Slot number 2×5
Total weight 4500kg
Boundary dimension 4300×2250×2700mm
Engine
Diesel 77kw(103hp)
Cooling system Water
Electric system 24V
Main configuration instructions
Engine Cummins
Hydraulic pump GermanRexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Hydraulic meter German
Speed reducer German Rexroth
Operating handle German Rexroth

Pulling Type Conductor Stringing Machine , 2x50KN Tension Stringing Equipment
