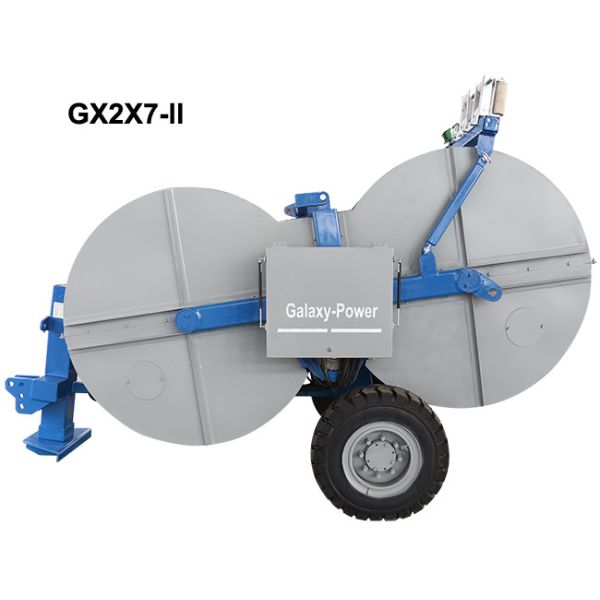

77kw Diesel Conductor Hydraulic Tensioner Power Line Stringing Equipment
77kw Diesel Conductor Hydraulic Tensioner Power Line Stringing Equipment
77kw Diesel Conductor Hydraulic Tensioner Power Line Stringing Equipment
77kw Diesel Conductor Hydraulic Tensioner Power Line Stringing Equipment
77kw Diesel Conductor Hydraulic Tensioner Power Line Stringing Equipment
77kw Diesel Conductor Hydraulic Tensioner Power Line Stringing Equipment
Specifications
Brand Name :
GALAXY
Model Number :
GL2×70-ll
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
30 days
Packaging Details :
Bulk
Type :
Power Line Stringing Equipment
Max intermittent tension :
2x70/1x140kN
Speed at max pull :
2.5km/h
Overall dimension :
5500x2280x2700mm
Groove number :
2×6
Total weight :
10000kg
Bull-wheel diameter :
1500mm
Diesel :
77kw(103hp)
Description

77kw Diesel Conductor Hydraulic Tensioner Power Line Stringing Equipment

Power Line Stringing Equipment

► Hydraulic Tensioner GL2×70 allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains.

► The machine can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrain.

Hydraulic Tensioner Power Line Stringing Equipment Configuration

► 2 hydraulic dynamometers

► 2 digital meter counters

► 2 digital speed meters

► Control instruments for hydraulic system and diesel engine

► Hydraulic front stabilizer

► Hydraulic oil cooling system

► Grounding connection point

► Hydraulic power pack to control up to 4 separated drum stands with hydraulic motor

77KW Power Line Stringing Equipment Engine

► Diesel: 77kw(103hp)

► Cooling system: water

► Electrical system: 24V

Diesel Power Line Stringing Equipment Hydraulic Transmission

► Hydraulic Tensioner GL2×70-ll can realize step less speed

► This machine is provided with tension presetting system

Conductor Power Line Stringing Equipment Additional Devices

► Lighting system for the trailer

► Digital speed and meter counter

► Air brake system for the trailer(extra charge)

► 4 hydraulic conductor clamps for drum change operations (extra charge)

Power Line Stringing Equipment Performance

Model Max intermittent tension Max continuous tension Speed at max pull Max speed Tension at max speed Max reverse pulling force Max reverse pulling speed
kN kN km/h km/h kN kN km/h
GL1×20 20 5
GL1×20-II 20 4
GL1×30 30 2.5 5 15 20
GL1×40 45 40 2.5 5 20 35
GL1×50 50 40 2.5 5 25 45 2.4
GL2×35 2x40/1x80 2x35/1x70 2.5 5 2x20/1x40 2x30/1x60 5
GL2×40 2x45/1x90 2x40/1x80 2.5 5 2x20/1x40 2×35/1x70 5
GL2×50 2x55/1x110 2x50/1x100 2.5 5 2x25/1x50 2x45/1x90 5
GL2×70 2x70/1x140 2x65/1x130 2.5 5 2x25/1x50 2x60/1x120 5
GL2×70-II 2x70/1x140 2x65/1x130 2.5 5 2x25/1x50 2x60/1x120 5
GL1×140 1x140 1x120 2.5 5 35 1x120 1.2

Power Line Stringing Equipment Characteristics

Model Bull-wheel diameter Max conductor diameter Max Optical fiber cable diameter Groove width Groove number Total weight Overall dimension
mm mm mm mm kg mm
GL1×20 1300 40 21 55 5 1920 4080x1930x2300
GL1×20-II 800 23 45 5 950 2400x1500x1650
GL1×30 1300 40 21 60 5 2064 3700×1950×2150
GL1×40 1300 40 21 55 5 3430 4000x2000x2300
GL1×50 1300/1500 55 21 68 2x6 2400 4000×1900×2300
GL2×35 1300 40 2×5 4500 4300x2250x2700
GL2×40 1300/1500 40 2x5 6230 4300×2250×2700
GL2×50 1300/1500 40 2x5 6000 4700x2300x2700
GL2×70 1700 40 2×8 7500 4700×2300×2700
GL2×70-II 1500 40 2×6 10000 5500x2280x2700
GL1×140 1500 40 16 10000 5500×2280×2700
