120KN Transmission Line Equipment With 10 Groove Number Max Speed 5km/h
120KN Transmission Line Equipment With 10 Groove Number Max Speed 5km/h
120KN Transmission Line Equipment With 10 Groove Number Max Speed 5km/h
120KN Transmission Line Equipment With 10 Groove Number Max Speed 5km/h
120KN Transmission Line Equipment With 10 Groove Number Max Speed 5km/h
120KN Transmission Line Equipment With 10 Groove Number Max Speed 5km/h
Specifications
Brand Name :
GALAXY
Model Number :
GS120
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Delivery Time :
45days
Packaging Details :
Bulk
Product name :
Transmission Line Equipment
Groove number :
10
Max intermittent pull :
120KN
Max diameter of rope reel :
1400mm
Total weight :
4800kg
Application :
Power transmission
Description

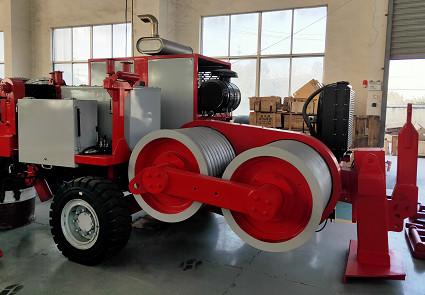

129kw 173hp 120KN Transmission Line Equipment Hydraulic Puller With 10 Groove Number

Quick Detail:

  • Model: GS120
  • Dimensions of the whole machine: 4000*2300*2300mm

The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.

Configuration:

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

Hydraulic front stabilizer

Grounding connection point

Main configuration:

  • Main pump: German Rexroth
  • Main motor speed reducer: German Rexroth
  • Tail bracket hoisting motor: America Eton
  • Hydraulic meter: German
  • Operating handle: German Rexroth

Hydraulic Transmission:

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices:

  • ·Lighting system for the trailer
  • ·Hydraulic rope clamp for reel change
  • ·Swivel guide rope roller
  • ·Trailer for towing at max speed of 30 km/h
  • ·Extra shaft
  • ·Digital speed and meter counter

Specifications:

Model GS40 GS60 GS90 GS120 GS150 GS180 GS220 GS280 GS380
Max intermittent pull KN 40 60 90 120 150 180 220 280 380
Max continuous pull KN 30 50 80 100 120 150 180 250 350
Speed at max pull km/h 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 5 5 5 5
Pull at max speed KN 20 25 40 50 60 75 90 120 170
Diesel kw(hp) 77(103) 77(103) 118(158) 129(173) 129(173) 239(320) 239(320) 298(400) 440(590)
Cooling system Water Water Water Water Water Water Water Water Water
Electrical system V 24 24 24 24 24 24 24 24 24
Bull-wheel diamete mm 400 450 540 600 600 700 760 960 960
Groove number 7 7 8 10 10 10 10 11 11
Max rope diameter mm 16 18 21 24 24 27 30 38 38
Max diameter of rope reel mm 1200 1400 1400 1400 1600 1400 1600 1600 1900
Total weight kg 3000 3500 4680 4800 5500 6800 6800 12800 13600


Transmission Line Equipment

  • Lighting system for the trailer
  • Hydraulic rope clamp for reel change
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h
  • Extra shaft
  • Digital speed and meter counter (extra charge)

120KN Transmission Line Equipment With 10 Groove Number Max Speed 5km/h

COMPANY PROFLIE


Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.

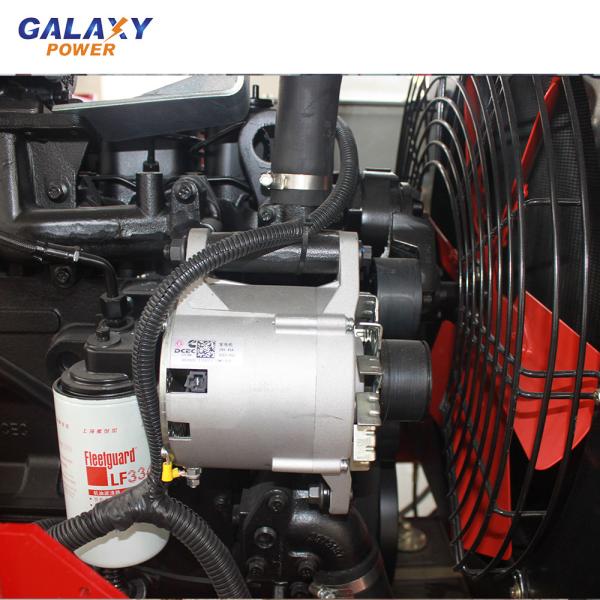

1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.

120KN Transmission Line Equipment With 10 Groove Number Max Speed 5km/h
