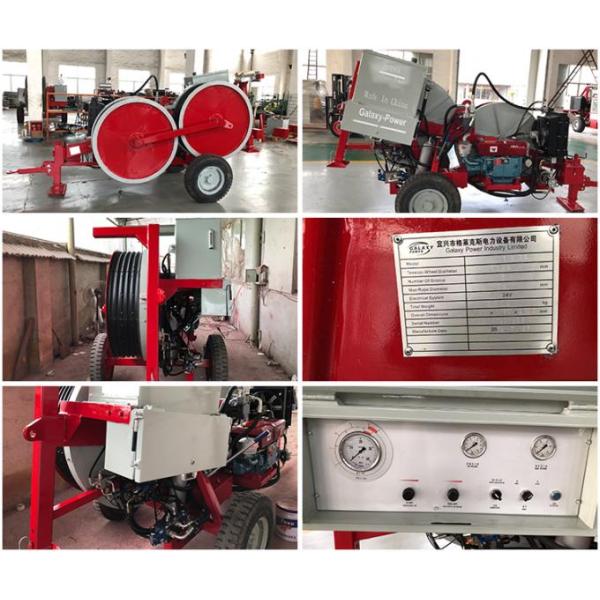

1x30KN 12kw(16hp) Diesel Hydrauic Tensioner Transmission Line Equipment
1x30KN 12kw(16hp) Diesel Hydrauic Tensioner Transmission Line Equipment
1x30KN 12kw(16hp) Diesel Hydrauic Tensioner Transmission Line Equipment
1x30KN 12kw(16hp) Diesel Hydrauic Tensioner Transmission Line Equipment
1x30KN 12kw(16hp) Diesel Hydrauic Tensioner Transmission Line Equipment
1x30KN 12kw(16hp) Diesel Hydrauic Tensioner Transmission Line Equipment
Specifications
Brand Name :
GALAXY
Model Number :
GL1x30
Certification :
ISO/CE
Place of Origin :
JiangSu Province,China
MOQ :
1set
Price :
Negotiable
Supply Ability :
80 sets per month
Delivery Time :
15-30days
Packaging Details :
Container
Product Name :
Transmission Line Equipment
Max Continuous Tension :
30KN
Continuous Tension Force :
25KN
Bull-wheel Diameter :
1300mm
Max conductor diameter :
40mm
Groove number :
5
Diesel :
77kw(103hp)
Application :
Conductor Stringing Equipment
Description

1x30KN 12kw(16hp) Diesel Hydrauic Tensioner Transmission Line Equipment

3Ton Transmission Line Equipment Description:

3 Ton Hydraulic Cable Tensioner is used for single conductor or OPGW stringing on overhead transmisson line.

It is equipped with water cooled Cummins diesel engine and German Rexroth hydraulic pump,

Main motor,Hydraulic meter,Operating handle

3Ton Transmission Line Equipment Performance:

Model GL1x30
Max. Tension Force (KN) 30
Continuous Tension Force (KN) 25
Max. Stringing Speed(km/h) 5
Max. Pullback force (KN) 20
Max. Pullback speed (km/h) 2.5
Diameter of wheel (mm) Φ1300
Number of grooves 5
Max. Conductor Diameter (mm) Φ40
Power of Engine 12KW
Electrical system: DC12V
Weight (kg) 2064
Dimension (m) 3.7x1.95x2.15

3Ton Transmission Line Equipment Characteristics:

Model Bull-wheel diameter Max conductor diameter Max optical fiber cable diameter Groove width Groove number Total weight Overall damension
mm mm mm mm kg mm
GL1X7.5 1100 24 21 220 1 850 2300x1250x1620
GL1X20 1300 40 21 55 5 1920 4080x1930x2300
GL1X20II 800 23 45 5 950 2400x1500x1650
GL1X20III 800 22.5 55 5 1150 2500x1500x1700
GL1X30 1300 40 21 60 5 2064 3700x1950x2150
GL1X40 1300 40 21 55 5 3430 4000x2000x2300
GL1X50 1300/1500 55 21 68 6 2400 4000x1900x2300
GL140IV 1500 40 16 10000 5500x2280x2700
GL2X35 1300 40 2x5 4500 4300x2250x2700
GL2X40 1300/1500 40 2x5 6230 4300x2250x2700
GL2X50 1300/1500 40 2x5 6000 4700x2300x2700
GL2X70 1700 40 2x6 7500 4700x2300x2700
GL2x70IV 1500 40 2x8 10000 5500x2280x2700
GL2X90 1900 50 2x6 7500 5400x2300x2700
GL4x50 1500 40 4x5 13000 5900x2300x2700

3Ton Transmission Line Equipment Main configuration:

Engine Cummins
Hydraulic pump German Rexroth
Main motor German Rexroth
Speed reducer German Rexroth
Hydraulic meter German
Operating handle German Rexroth

3Ton Transmission Line Equipment Remarks:

There are three important steps for selection of hydraulic conductor tensioner:

First, it is important to know the diameter or model of biggest conductor in transmission line project,

because the weight of conductor can be used to calculate the tension force on conductor.

Second, how many conductors in one phase of transmission line? Is it single conductor, two conductors,

or four conductors transmission line?

Third, How is working condition of construction site? Is it Mountain area or flat lands? Are there big rivers

or forest in the stringing section? Are there any corner towers in one stringing section? How many towers

are there is one tension section?

3Ton Transmission Line Equipment Application:

It is suitable for single conductor, earth wire, OPGW and ADSS optic fiber cable stringing in overhead transmission

line stringing operation.

1x30KN 12kw(16hp) Diesel Hydrauic Tensioner Transmission Line Equipment
Company Information:

Galaxy power industry limited was established in 2016, a high-tech enterprise in China, We are specializing in

R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic

puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing

accessories and technical service for customer. Galaxy has developed as one of the largest stringing

equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.

1x30KN 12kw(16hp) Diesel Hydrauic Tensioner Transmission Line Equipment

Production Line:

We have five production lines.

Main configurations of our machine are from Germany and USA

Engine: American Cummins

Main pump: German Rexroth

Main motor: German Rexroth

Speed reducer: German Rexroth

Tail bracket hoisting motor: Amercian Eton

Hydraulic meter: German

Operating handle: German Rexroth

1x30KN 12kw(16hp) Diesel Hydrauic Tensioner Transmission Line Equipment

OEM&ODM:

We can do OEM/ODM. All of our products comply with international quality standards and are greatly

appreciated in a variety of different markets throughout the world.Our products sell in Australia,

Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc.

Our products are also very popular and best-selling in China.
