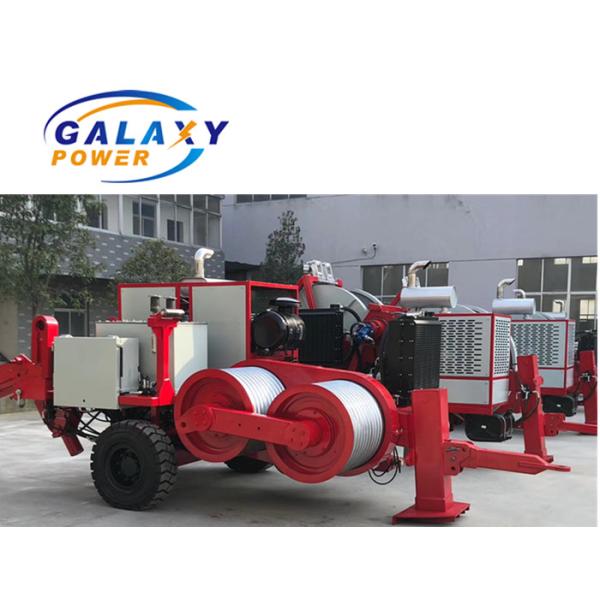

Max 180KN 10 Grooves 24V Electrical Transmission Line Stringing Equipment

18T Transmission Line Stringing Equipment Description:

The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below

in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands;

besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV

traction stringing in various terrains.

18T Transmission Line Stringing Equipment Application:

It is suitable to string four or two bundled conductors in overhead transmission line.

18T Transmission Line Stringing Equipment Performance :

18T Transmission Line Stringing Equipment Characteristics:

18T Transmission Line Stringing Equipment Engine:

18T Transmission Line Stringing Equipment Main configuration:

18T Transmission Line Stringing Equipment Configuration:

Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600
Hydraulic front stabilizer
Grounding connection point

Hydraulic Transmission:

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with

a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by

automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices:

Lighting system for the trailer
Hydraulic brake system for the trailer
Extra rollers for an additional pilot rope
Hydraulic rope clamp for reel change operations
Extra shaft
Electronic pull and speed recorder

Company Information:

Galaxy power industry limited was established in 2016, a high-tech enterprise in China, We are specializing in R & D,

manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner,

underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical

service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China

which supply more than 200 varieties kinds of goods now.
