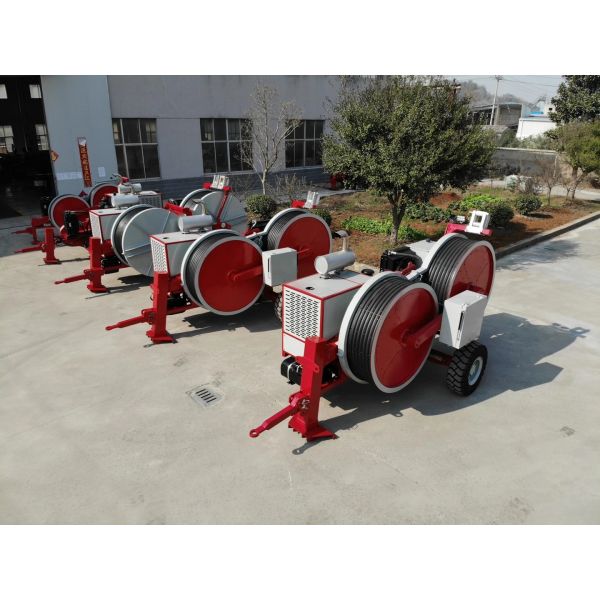

2X70KN 40mm Conductor Cable Wire Stringing Equipment stepless speed
2X70KN 40mm Conductor Cable Wire Stringing Equipment stepless speed
2X70KN 40mm Conductor Cable Wire Stringing Equipment stepless speed
2X70KN 40mm Conductor Cable Wire Stringing Equipment stepless speed
2X70KN 40mm Conductor Cable Wire Stringing Equipment stepless speed
2X70KN 40mm Conductor Cable Wire Stringing Equipment stepless speed
Specifications
Brand Name :
Galaxy
Model Number :
GL2X70
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 sets/month
Delivery Time :
45 days
Packaging Details :
Carton
Type :
Hydraulic Tensioner
Application :
Power Construction and Tower Erection
Max Intermittent Pull :
2X70KN
Bull-wheel Diameter :
1700mm
Max Conductor Diameter: :
40mm
Overall Dimension (length*width*height) :
4700x2300x2700mm
Description

Hydraulic Cable Tensioner For Stringing Equipment Is Used For Electric Construction

The machine is suitable to string one or two ropes or bundled conductors on bull-wheels with two pair of bull-wheels with completely independent controls. The bull-wheel grooves are made of wear-proof interchangeable nylon sectors. The machine is completely electronically controlled.

2X70KN 40mm Conductor Cable Wire Stringing Equipment stepless speed

2X70KN 40mm Conductor Cable Wire Stringing Equipment stepless speed

Characteristics

Bull-wheel diameter: 1700mm

Max rope diameter : 24mm

Max conductor diameter: 46mm

Total weight: 8000kg

Overall dimension (length*width*height): 4700×2300×2700mm

Performance

Puller

Max pull: 2x70kN/1x140kN

Speed at max pull: 2km/h

Max speed: 4.5km/h

Pull at max speed: 2x30kN/1x60kN

Tensioner

Max tension: 2x70kN/1x140kN

Max speed: 4.5km/h

Engine

Diesel 129kw(173hp)

Cooling system water

Electrical system 24V

Main configuration

Engine: Cummins

hydraulic pump: German Rexroth

Main motor: German Rexroth

speed reducer: German Rexroth

Hydraulic meter: German WIKA

Operating handle: German Rexroth

Hydraulic Transmission

2 closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with 2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Digital meter counters

Control instruments for hydraulic system and diesel engine

Rigid axles for towing at max speed of 30km/h with mechanical parking brake

Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders with independent controls

Hydraulic front stabilizer

Grounding connection point

Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp(extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter
