Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment
Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment
Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment
Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment
Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment
Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment
Specifications
Brand Name :
GALAXY
Model Number :
GL1x30
Certification :
ISO/CE
Place of Origin :
Jiangsu Province,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per month
Delivery Time :
15-25 days
Packaging Details :
Container
Key Words :
Transmission Line Stringing Equipment ,Overhead line Stringing Equipment ,tensioner Stringing Equipment
Max continuous tension :
30KN
Max reverse pulling force :
20KN
Bull-wheel diameter :
1300mm
Gasoline :
HONDA
Max conductor diameter :
40mm
Max Optical fiber cable diameter :
21mm
Groove width :
60mm
Groove Number :
5
Application :
Relese Single Bundle And Earth Wire
Description

Relese Single Bundle And Ground Wire 3Ton Tensioner Stringing Equipment

3Ton Tensioner Stringing Equipment

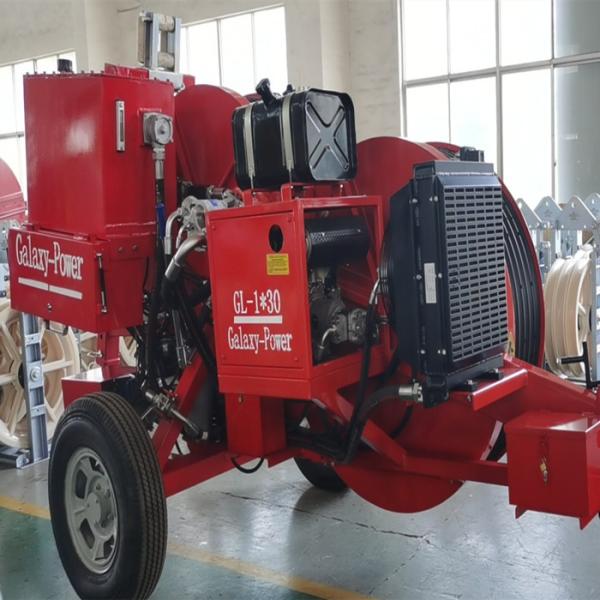

3Ton Hydraulic Tensioner Stringing equipment GL1x30 is used for stringing

single conductor, earth wire, OPGW and ADSS optic fiber cable on

overhead transmission line. It is main tension stringing equipment

on 35KV - 110KV transmission line, and for OPGW stringing operation

Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment

3Ton Conductor Stringing Equipment Performance :
Max continuous tension 30kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 15kN
Max reverse pulling force 20kN

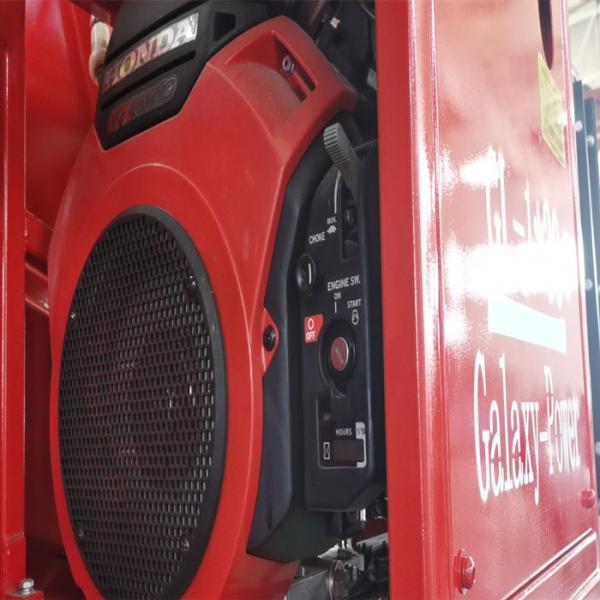

3Ton Conductor Stringing Equipment Engine :
Gassoline engine 12kw(16hp)

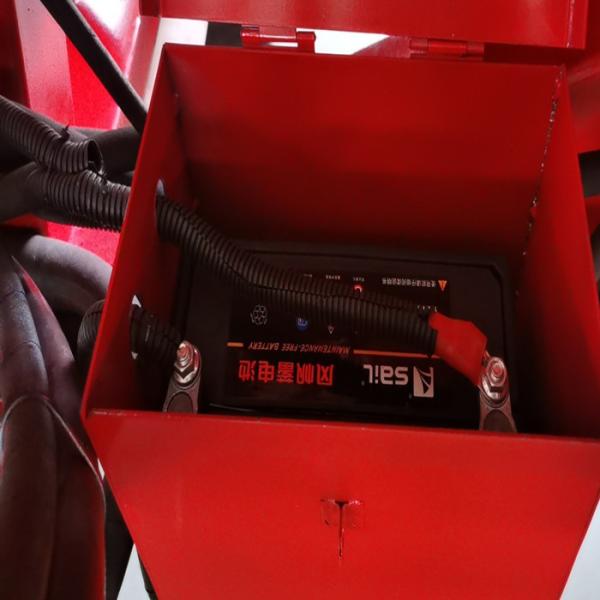

Electrical system 12V

3Ton Hydraulic Tensioner Stringing Equipment Characteristics :

  • Bull-wheel diameter : 1300mm
  • Max conductor diameter : 40mm
  • Max Optical fiber cable diameter : 21mm
  • Groove width : 60mm
  • Groove number : 5
  • Total weight : 2064kg
  • Overall dimension 3700×1950×2150mm
3Ton Hydraulic Tensioner Stringing Equipment Main Configuration :
Engine Japan Honda (or Robin)
Hydraulic pump Tianjin Parker
Main motor Tianjin Permco
Speed reducer German Rexroth / Italy Brevini
Hydraulic meter German WIKA
3Ton Hydraulic Tensioner Stringing Equipment Configuration:
·Hydraulic dynamometers
·Hydraulic oil cooling system
·Grounding connection point
3Ton Hydraulic Tensioner Stringing Equipment Hydraulic Transmission :
·The machine can realize step less speed
·The machine is provided with tension presetting system
3Ton Hydraulic Tensioner Stringing Equipment Additional Devices :
·Air brake system for the trailer (extra charge)
·Hydraulic conductor clamps for drum change operations (extra charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment
