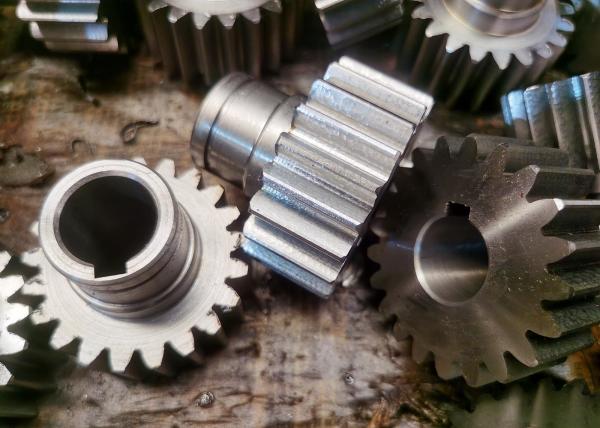

Transmission Pinion Spur Gear 40Cr Forged Alloy Steel 2 Module
Transmission Pinion Spur Gear 40Cr Forged Alloy Steel 2 Module
Specifications
Brand Name :
YIZGEAR
Model Number :
SPG22082701
Place of Origin :
CHINA
MOQ :
5 Pieces
Price :
$10/Piece
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
1500 Pieces/Month
Delivery Time :
50 Dyas
Packaging Details :
Plywood Crate
Material :
40Cr
Module :
2
Manufacturing Process :
Gear Teeth Hobbing
Width :
25
Profile Type :
Spur Gear
Quality Grade :
ISO 6-7 Grade
Description

Transmission Gears 40Cr Forged Alloy Steel 2 Module Pinion Spur Gear

1) Description of Spur Gear

Los engranajes rectos son un tipo de engranaje cilíndrico, con ejes paralelos y coplanares,

y dientes rectos y orientados paralelos a los ejes. Podría decirse que son el tipo de engranaje más simple y común,

fácil de fabricar y adecuado para una amplia gama de aplicaciones.

Los dientes de un engranaje recto tienen un perfil involuntario y engranan un diente a la vez.

La forma involuta significa que los engranajes de dientes rectos solo producen fuerzas radiales (no fuerzas axiales),

pero el método de engrane de dientes provoca una gran tensión en los dientes del engranaje y una gran producción de ruido.

Debido a esto, los engranajes rectos generalmente se usan para aplicaciones de baja velocidad,

aunque se pueden usar a casi cualquier velocidad.

Products Spur Gear
Custom Made √
Gear Profile Type Cylindrical Gears
Gear Teeth manufacturing Gear Hobbing
Gear Teeth Grinding √
Module (M) 2
Number of Teeth (Z) 14
Pressure Angle (α) 20°
Helix Angle (β) 0
Teeth Accuracy Grade ISO 6-7 Grade
Heat Treatment Induction Hardening
Surface Hardness 40-45 HRC

STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　
