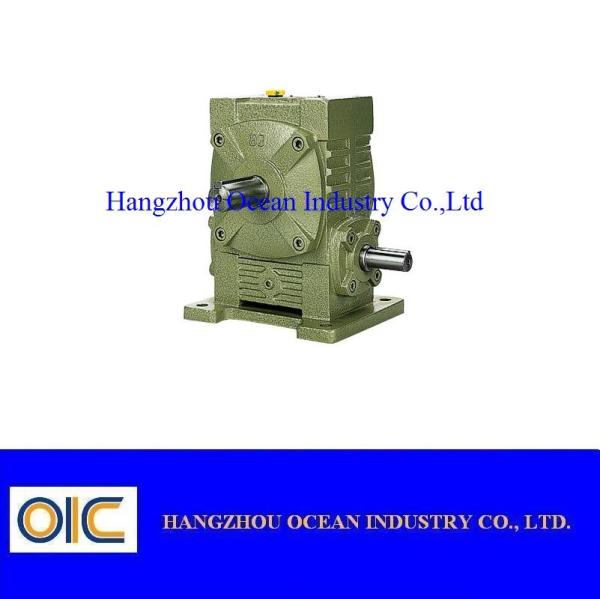

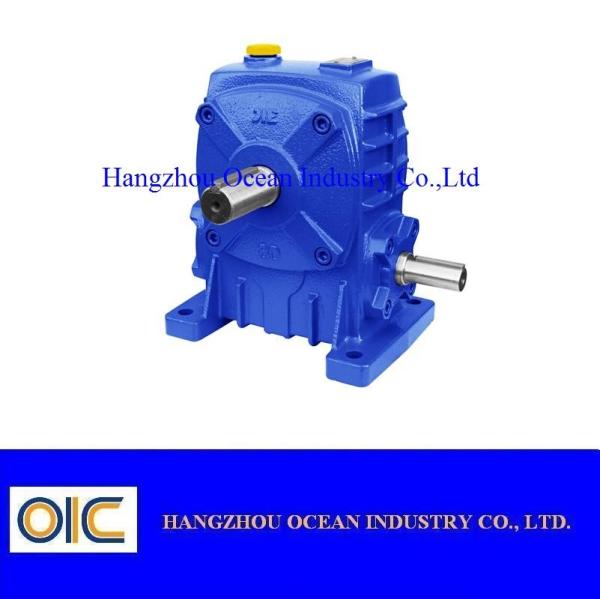

Single speed worm gear reducer RATIO 110-160 WPA WPS WPO WPX WPDA WPDS WPDO WPDX WPKA WPKS

Specifications

Place of Origin :

China

Brand Name :

Certification :

ISO

Model Number :

WPA, WPS, WPO, WPX, WPDA,WPDS,WPDO,WPDX, WPKA, WPKS

MOQ :

10 Pieces

Price :

Negotiation

Packaging Details :

As per customer's request

Delivery Time :

Negotiation

Payment Terms :

T/T, L/C

Supply Ability :

10000Pieces /Month

Description

Single speed worm gear reducer RATIO 110-160 WPA WPS WPO WPX WPDA WPDS WPDO WPDX WPKA WPKS

Quick Detail:

Single speed worm gear reducer (RATIO 110-160)

Material is cast iron and steel

Standard and non-standard available
With high quality and competitive price

Prompt delivery

Packing as per customer’s demand.

Description:

Single speed worm gear reducer (RATIO 110-160)

China gearbox and speed reducer manufacturer(supplier),Specialist in: worm reducers, worm gearboxes, planetary gearboxes, cycloidal speed reducers, variators, helical gear, sprial bevel gears, agricultural gearboxes, marine gearbox, tractor gears, truck gears, electric motors, screw actuators.

We can also supply WJ Series Worm-gear Speed Reducer as below:

WPA, WPS, WPO, WPX, WPDA,WPDS,WPDO,WPDX, WPKA, WPKS

We can also supply Gearbox, planetary gearbox, worm gearbox, flender gearbox, marine gearbox, comer gearbox, reduction gearbox, transmission gearbox, gearbox, mower gearbox, rotary cutter gearbox, small transmission gearbox, gearbox for conveyor, agricultural gearbox, bevel gearbox, helical gearbox, swing gearbox, variable speed gearbox, differential gearbox, small planetary gearbox, reducer gearbox, tiller gearbox, pto gearbox, gearbox reducer, hollow shaft gearbox, speed reduction gearbox, industrial gearbox, planetary reduction gearbox, lawn mower gearbox, rotary tiller gearbox, gearbox transmission, worm reduction gearbox, aluminum gearbox, forklift gearbox, nmrv 075 worm gearbox, nmrv030 worm gearbox, shaft mounted gearbox, nmrv 050 worm gearbox, gearbox for agricultural machinery, power tiller gearbox, manual worm gearbox, spiral bevel gearbox, nmrv gearbox, worm wheel gearbox, reduce speed gearbox, industrial transmission gearbox, worm reducer gearbox, gearbox rpm reducer, helical gearbox reducer, wheel planetary gearbox, nmrv040 worm gearbox, worm gearbox reducer, nmrv worm gearbox, aluminium worm gearbox, gearbox reduction, rv series worm gearbox, worm speed gearbox, nmrv050 worm gearbox, gear reducer, worm gear reducer, helical gear reducer, gear speed reducer, worm gear speed reducer, shaft mounted gear reducer, planetary gear reducer, helical gear speed reducer, worm gear wheel reducer, speed gear reducer, bevel gear reducer, planetary gear speed reducer, spur gear reducer, aluminum worm gear reduce, nmrv worm gear reducers, helical-worm gear reducer, helical bevel gear reducers, high speed gear reducer, gear speed reducers, industrial gear reducer, high torque gear reducers

Applications:

WJ Series Worm-gear Speed Reducer is a power transmission and reduction transmission equipment.

Specification:

WPA:

Size	Ratio	A	AB	B	BB	CC	E	F	H	HL	LL	M	N
40	1/5 1/10 1/15 1/20 1/25 1/30 1/40 1/50 1/60	142	85	112	74	40	70	80	135	40	80	90	100
50		175	105	145	95	50	95	110	180	50	100	120	140
60		195	120	165	110	60	105	120	210	60	120	130	150
70		234	140	195	130	70	115	150	243	70	140	150	190
80		264	160	210	140	80	135	180	273	80	160	170	220
100		300	178	245	163	100	155	220	340	100	200	190	260
120		385	230	285	185	120	180	260	405	120	240	230	320
135		435	260	320	210	135	200	290	455	135	270	250	350
155		507	300	387	252	155	220	320	490	135	290	280	390
175		550	325	407	262	175	250	350	565	160	335	310	430
200		594	350	480	305	200	290	390	625	175	375	360	480
250		710	420	560	360	250	380	480	730	200	450	460	560

Size	G	Z	Input Shaf			Output Shaft			Weight Kg	Oil Weight L
Size	G	Z	HS	U	TxV	LS	S	W¡ÁY	Weight Kg	Oil Weight L
40	12	10	25	12	4¡Á2.5	28?	14	5¡Á3	3.8	0.14
50	15	11	30	12	4¡Á2.5	40	17	5¡Á3	7	0.17
60	20	11	40	15	5?¡Á3	50	22	7¡Á4	10.5	0.23
70	20	15	40	18	5¡Á3	60	28	7¡Á4	14.5	0.5
80	20	15	50	22	7¡Á4	65	32	10¡Á4.5	22	0.7
100	25	15	50	25	7¡Á4	75	38	10¡Á4.5	36	1.6
120	30	18	65	30	7¡Á4	85	45	12¡Á4.5	63	3.0
135	30	18	75	35	10¡Á4.5	95	55	15¡Á5	80	3.5
155	38	20	85	40	10¡Á4.5	110	60	15¡Á5	114	3.6
175	40	20	85	45	12¡Á4.5	110	65	18¡Á6	150	4.5
200	42	22	95	50	12¡Á4.5	125	70	20¡Á7	218	6.4
250	42	27	110	60	15¡Á5	155	90	24¡Á8	363	8.5

WPS:

Size	Ratio	A	AB	B	BB	CC	E	F	H	HL	LL	M	N
40	1/5 1/10 1/15 1/20 1/25 1/30 1/40 1/50 1/60	142	85	112	74	40	70	80	135	100	60	90	100
50		175	105	145	95	50	95	110	180	130	80	120	140
60		195	120	165	110	60	105	120	205	150	90	130	150
70		234	140	195	130	70	115	150	235	175	105	150	190
80		264	160	210	140	80	135	180	265	200	120	170	220
100		300	178	245	163	100	155	220	327	250	150	190	260
120		385	230	285	185	120	180	260	388	300	180	230	320
135		435	260	320	210	135	200	290	445	350	215	250	350
155		507	300	387	252	155	220	320	483	390	235	280	390
175		550	325	407	262	175	250	350	550	435	260	310	430
200		594	350	480	305	200	290	390	610	490	290	360	480
250		710	420	560	360	250	380	480	755	600	350	460	560

Size	G	Z	Input Shaft			Output Shaft			Weight Kg	Oil Weight L
Size	G	Z	HS	U	T×V	LS	S	W×Y	Weight Kg	Oil Weight L
40	12	10	25	12	4×2.5	28	14	5×3	3.8
50	15	11	30	12	4×2.5	40	17	5×3	7	0.4
60	20	11	40	15	5×3	50	22	7×4	10.5	0.5
70	25	15	40	18	5×3	60	28	7×4	14.5	0.7
80	25	15	50	22	7×4	65	32	10×4.5	22	1.1
100	25	15	50	25	7×4	75	38	10×4.5	36	2.3
120	30	18	65	30	7×4	85	45	12×4.5	63	4.5
135	30	18	75	35	10×4.5	95	55	15×5	80	6.0
155	38	20	85	40	10×4.5	110	60	15×5	114	6.2
175	40	20	85	45	12×4.5	110	65	18×6	150	8.0
200	42	22	95	50	12×4.5	125	70	20×7	218	9.0
250	48	27	110	60	15×5	155	90	24×8	363	17.0

Gearbox,RC series helical gear box,vertical roller mill gearbox,DP series high power planetary gearbox,helical gear reducer,industrial bevel helical gearbox,Mechanical Power Transmission Industrial Mechanical PC Motor Helical Electric Gearbox,low rpm high torque gearbox,transmission gearbox China hotsale gearbox,Professional Manufacturer of Worm Reduction Gearbox,speed increasing gearbox,Hot saled cycloidal planetary gearbox,Advance marine transmission gearbox,speed reducer gearbox,Large/Heavy gearbox,speed reduction box,Helical precision planetary gearbox,Motovario Like NMRV 030-130 Worm drive gear reducer box,Motor Worm Gear Reducer,Cast iron case worm gear reducer,Bevel Helical Gear Reducer with Motor

Competitive Advantage:

More than 20 years advanced technology and experience of us will give strong support for the Single speed worm gear reducer (RATIO 110-160) you need. We will understand your need of product quickly, and give quick respond and good service. A lot of cases of our products will show you that it worth your trust.

Under the full quality control system, our products go through the precise product line and strict testing process. We have excellent working flow and standard to ensure stability, products reliable enough for using.

Take our scale economy, raw material superiority, and sincerity for clients to account, our price do have a great competitiveness. They are good value and cost effective than your imagine.

We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
