5-7 Accuracy Machined OEM Automatic FB Steel Spur Gears Spiral Coil Binding Machine
5-7 Accuracy Machined OEM Automatic FB Steel Spur Gears Spiral Coil Binding Machine
5-7 Accuracy Machined OEM Automatic FB Steel Spur Gears Spiral Coil Binding Machine
5-7 Accuracy Machined OEM Automatic FB Steel Spur Gears Spiral Coil Binding Machine
5-7 Accuracy Machined OEM Automatic FB Steel Spur Gears Spiral Coil Binding Machine
5-7 Accuracy Machined OEM Automatic FB Steel Spur Gears Spiral Coil Binding Machine
Specifications
Brand Name :
MW
Model Number :
no
Place of Origin :
CHINA
Pressure Angle :
20°
Warranty :
One Year
Length Of Pinion :
269mm
Surface :
Anti - Oil
Pitch Diameter :
3 Inches
Application :
Power Transmission
Export Markets :
Global
Accuracy :
5~7
Description

Product Description:

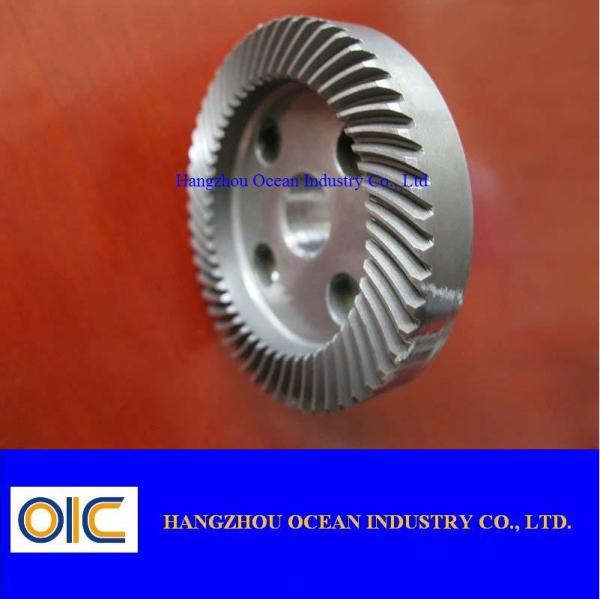

Our Spiral Bevel Gear is equipped with a Spline of 29, ensuring a secure and precise attachment to your equipment. With a Pressure Angle of 20°, this gear delivers maximum torque and efficiency, ensuring that your machinery operates at peak performance.

As a value-added service, we offer OEM customization options for our Spiral Bevel Gear. Our team of experts can work with you to create a tailored solution that meets your exact specifications, ensuring seamless integration into your existing systems.

Investing in our Spiral Bevel Gear means investing in a long-lasting, reliable solution for your industrial needs. We are proud to offer a One Year Warranty on this product, giving you peace of mind and confidence in your purchase.

Whether you're in need of a Flat Gear Motor, Helical Bevel Gear Reducer, or Helical Bevel Gear Motor, our Spiral Bevel Gear is the perfect choice. With its superior design, advanced features, and exceptional durability, it's sure to exceed your expectations.

Features:

  • Product Name: FB Steel Spur Gears
  • Direction: Left Hand
  • Length Of Pinion: 269mm
  • Application: Power Transmission
  • Gear Accuracy: Class 6-9
  • Pressure Angle: 20°
  • Uses Gear Forgings
  • Designed for Gear Forgings
  • Operated by Bevel Gear Operator

5-7 Accuracy Machined OEM Automatic FB Steel Spur Gears Spiral Coil Binding Machine

Patr No. Z Diameter Type Stock Bores Marked "● " Dimensions wt
Lbs
PD OD 5/8 3/4 7/8 1" 11/8 F L P H
FB8S12 12 1.500 1.75 1 ● 11/4 2 3/4 11/8 0.5
FB8S14 14 1.750 2.00 1 ● 11/4 2 3/4 13/8 0.8
FB8S15 15 1.875 2.12 1 ● 11/4 2 3/4 11/2 1.0
FB8S16 16 2.000 2.25 1 ● ● ● 11/4 2 3/4 15/8 1.2
FB8S18 18 2.250 2.50 1 ● ● ● ● 11/4 2 3/4 17/8 1.6
FB8S20 20 2.500 2.75 1 ● ● ● ● 11/4 2 3/4 21/8 2.2
FB8S22 22 2.750 3.00 1 ● ● ● ● 11/4 2 3/4 23/8 2.6

Part No. Z Diameter Type stock Bores Marked "●" Dimensions wt
Lbs
PD OD 1/2 5/8 3/4 7/8 1" F L P H
FB10S12 12 1.200 1.40 ● 1 15/8 5/8 29/32 0.3
FB10S14 14 1.400 1.60 ● 1 15/8 5/8 17/64 0.4
FB10S15 15 1.500 1.70 ● 1 15/8 5/8 17/32 0.5
FB10S16 16 1.600 1.80 ● ● 1 15/8 5/8 15/16 0.6
FB10S18 18 1.800 2.00 ● ● 1 15/8 5/8 133/64 0.7
FB10S20 20 2.000 2.20 ● ● ● 1 15/8 5/8 123/32 0.9
FB10S24 24 2.400 2.60 ● ● ● 1 15/8 5/8 27/64 1.6

Part No. Z Diameter Type stock Bores Marked"●" Dimensions wt
Lbs
PD OD 1/2 5/8 3/4 7/8 1" F L P H
FB12S11 11 1.000 1.16 1 ● 3/4 11/4 1/2 3/4 0.1
FB12S12 12 1.000 1.16 1 ● 3/4 11/4 1/2 3/4 0.1
FB12S13 13 1.083 1.25 1 ● 3/4 11/4 1/2 13/16 0.2
FB12S14 14 1.167 1.33 1 ● 3/4 11/4 1/2 29/32 0.2
FB12S15 15 1.250 1.41 1 ● 3/4 11/4 1/2 1 0.3
FB12S16 16 1.333 1.50 1 ● 3/4 11/4 1/2 11/16 0.3
FB12S18 18 1.500 1.66 1 ● 3/4 11/4 1/2 11/4 0.4
FB12S20 20 1.667 1.83 1 ● ● 3/4 11/4 1/2 113/32 0.5
FB12S21 21 1.750 1.91 1 ● ● ● 3/4 11/4 1/2 11/2 0.6
FB12S22 22 1.833 2.00 1 ● ● ● ● 3/4 11/4 1/2 19/16 0.7
FB12S24 24 2.000 2.16 1 ● ● ● ● 3/4 11/4 1/2 13/4 0.8

Part No. Z Diameter Type Stock Bores Marked "●" Dimensions wt
Lbs
PD OD 5/16 3/8 1/2 5/8 3/4 F L P H
FB16S12 12 0.750 0.87 1 ● 1/2 15/16 7/16 9/16 0.1
FB16S13 13 0.813 0.93 1 ● 1/2 15/16 7/16 5/8 0.1
FB16S14 14 0.875 1.00 1 ● 1/2 15/16 7/16 11/16 0.13
FB16S15 15 0.938 1.06 1 ● ● 1/2 15/16 7/16 3/4 0.13
FB16S16 16 1.000 1.12 1 ● ● 1/2 15/16 7/16 13/16 0.19
FB16S18 18 1.125 1.25 1 ● 1/2 15/16 7/16 15/16 0.21
FB16S20 20 1.250 1.37 1 ● ● 1/2 15/16 7/16 11/16 0.23
FB16S22 22 1.375 1.50 1 ● ● 1/2 15/16 7/16 13/16 0.25
FB16S24 24 1.500 1.62 1 ● ● ● 1/2 15/16 7/16 15/16 0.31
FB16S26 26 1.625 1.75 1 ● ● ● 1/2 15/16 7/16 17/16 0.44
FB16S28 28 1.750 1.87 1 ● ● ● 1/2 1 1/2 11/2 0.50
FB16S30 30 1.875 2.00 1 ● ● ● 1/2 1 1/2 15/8 0.60
FB16S32 32 2.000 2.12 1 ● ● ● 1/2 1 1/2 13/4 0.69

Technical Parameters:

Spline 29
Gear Accuracy Class 6-9
Direction Left Hand
Color Standard
Outside Diameter 4 Inches
Length Of Pinion 269mm
OEM Service Yes
Application Power Transmission
Surface Anti-Oil
Warranty One Year

FAQ:

Here are some frequently asked questions and answers about MW Spiral Bevel Gears:

Q: What is a Spiral Bevel Gear?

A: A Spiral Bevel Gear is a type of gear used in power transmission applications. It is designed to transmit power between two intersecting shafts at a right angle.

Q: What makes MW Spiral Bevel Gears unique?

A: MW Spiral Bevel Gears are made in China and are designed to meet high quality standards. They are made with precise machining and high-quality materials to ensure dependable performance.

Q: What are the benefits of using MW Spiral Bevel Gears?

A: MW Spiral Bevel Gears offer high efficiency, low noise, and high torque capacity. They are also highly durable and require minimal maintenance.

Q: What industries are MW Spiral Bevel Gears used in?

A: MW Spiral Bevel Gears are used in a variety of industries, including automotive, aerospace, agriculture, and industrial equipment manufacturing.

Q: Can MW Spiral Bevel Gears be customized?

A: Yes, MW Spiral Bevel Gears can be customized to meet specific application requirements. Contact us for more information.
