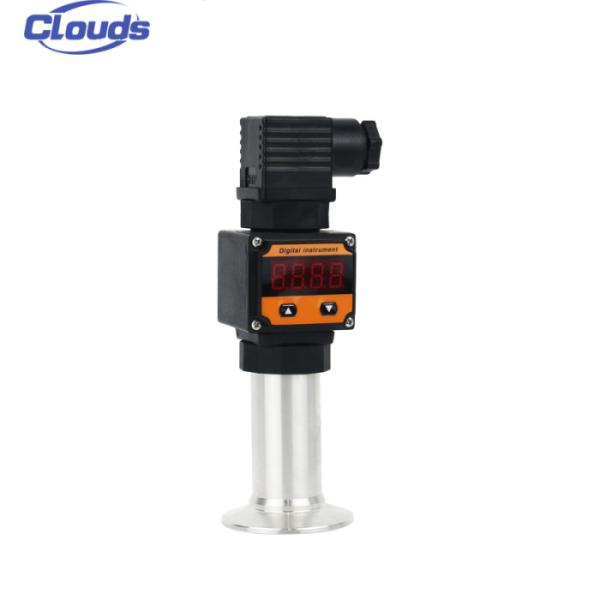

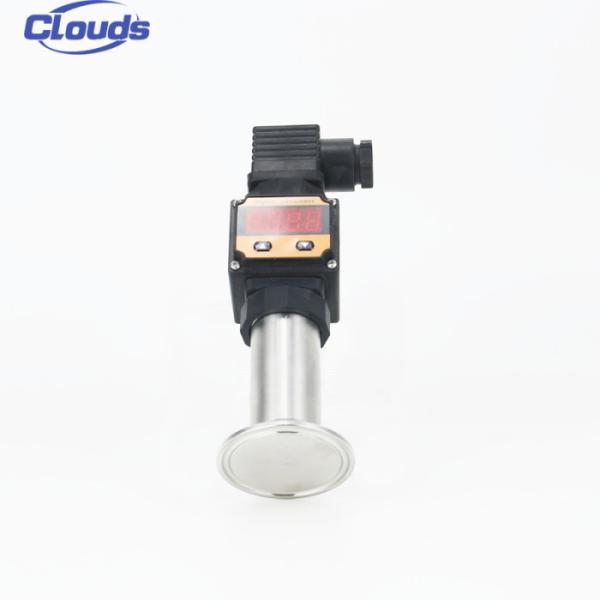

YD34-1/YD34-2 The Ultimate Smart Water Pressure Sensor for Industrial Automation
YD34-1/YD34-2 The Ultimate Smart Water Pressure Sensor for Industrial Automation
YD34-1/YD34-2 The Ultimate Smart Water Pressure Sensor for Industrial Automation
YD34-1/YD34-2 The Ultimate Smart Water Pressure Sensor for Industrial Automation
Specifications
Brand Name :
Clouds
Model Number :
YD34
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
USD$72-USD$88/Unit
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
1000 unit/month
Delivery Time :
5-10 working days
Packaging Details :
Standard export package
Model :
YD-2088
Load Inductance :
3.3mH or less
Connection :
1/4
Protection Class :
IP65
Item :
air temperature humidity sensor
Humidity Range :
0~100 (no condensation) %RH
Display :
LCD
Description

Description:

The Sanitary Flush flat Diaphragm membrane pressure transducer, a hot-selling pressure sensor, finds widespread application in various industrial automation scenarios. It is extensively utilized in oil pipelines, water conservancy and hydropower projects, railway transportation, intelligent buildings, production control systems, aerospace, military applications, petrochemical processing, oil wells, electrical systems, ships, machine tools, pipeline air supply systems, boiler vacuum systems, and numerous other industries.

Specification:

Parameter YD34-1/YD34-2
Pressure Range Clamp flush type -1 bar-0-0.1 bar...100 Bar Optional<br>Thread flush type 0-20 bar...600bar option
Overload 150% F.S.
Burst Pressure 300% F.S.
Accuracy ≤ ±0.5%F.S@25 degree C (≤ ±0.25%F.S@25 degree C by customized)<br>Including non-lin., rep. and hys.<br>Optional: Standard: 0.1%F.S±0.05%
Working Temp. -40℃~80℃ (non-corrosive medium)
Storage Temp. -40℃~125℃ (Nitrile rubber sealing ring);<br>-30℃~150℃ (fluororubber rubber sealing ring)
Temperature Compensation 0~80℃
Medium Compatible YD34-1, YD34-2<br>Compatible with 304/316L Stainless Steel
Electrical Wire 2 Wires, 3 Wires
Output 4-20mA, 1-5V; 0-5V, 0-10V, 0.5-4.5V non-ratiometric, RS485 Modbus RTU
Power Supply 7-30Vdc, 8-30Vdc, 13-30Vdc, 5Vdc±5%, 3.5-36Vdc
Polarity protection Yes (for certain options), No (for others)
Insulate resistance ＞100M Ω@50V
Zero Temp. Drift 0.2%FS/℃ (≤100kPa);<br>0.1%FS/℃ (>100kPa)
FS Temp. Drift 0.02%FS/℃ (≤100kPa);<br>0.01%FS/℃ (>100kPa)
Electronic connection DIN43650 Hirschmann Terminal Box;<br>Fixed cable and water proof IP67 optional
Response time ≤10 ms
Pressure Type Gauge pressure;<br>Sealed gauge and absolute optional
Certificate Ex ia IICT6, TUV RoHS and CE Certificate
EMC Standard EN 61326-1:2013;<br>EN 61326-2-3:2013<br>EN 61000-6-2:2005;<br>EN61000-6-4:2007+A1
Process Connect G1/2’’, M20*1.5;<br>G1’’, Φ50 clamp or by customized

Features:

  • For Sanitary or CIP (Clean-in-Place) applications
  • 316L stainless steel diaphragm
  • welded 316SS body construction shock and erosion
  • Custom pressure ranges from 0-1m thru 0-500m
  • Flush process connection eliminates plugging
  • Advanced digital temperature compensation
  • Available with an integral cooling extension for high
  • temperature applications

YD34-1/YD34-2 The Ultimate Smart Water Pressure Sensor for Industrial Automation
