Specifications
Brand Name :
Clouds
Model Number :
YK series
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
USD34.7-USD68.5/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
200PCS/week
Delivery Time :
7days
Packaging Details :
Carton box
Nterface Type :
usb
Allowed Overload :
2 times the full range pressure
Quality Certification :
CE
Work Pressure :
0~16bar
Response Time :
≤2ms
Application Temp :
-10 ℃ ~ 80 ℃
Description

Stainless Steel Precision Digital Pressure Gauge Air Pressure Gauge Digital Fuel Pressure Gauge

Description Stainless Steel Precision Digital Pressure Gauge Air Pressure Gauge Digital Fuel Pressure Gauge

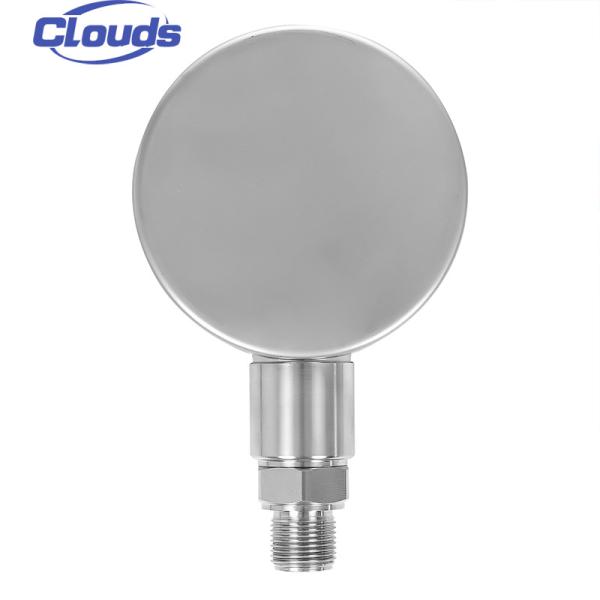

YK series Digital Pressure Gauge utilizes high accuracy pressure sensors to measure and display the target
pressure. It has many features such as high tolerance against vibrations, high accuracy display, reset, auto
stand by, etc. This series of gauges utilize advanced technologies such as low power signal processing
circuitry, auto-standby, one key reset, etc., to ensure long battery life and ease of use. It is a perfect
replacement for the traditional mechanical pressure gauge in a wide range of situations like portable
pressure measurement, equipment supporting and standard pressure calibrations.

Application Stainless Steel Precision Digital Pressure Gauge Air Pressure Gauge Digital Fuel Pressure Gauge

Used to petroleum, chemical industry, power plant, water supply of town, Horologic exploration fields.

Specification Stainless Steel Precision Digital Pressure Gauge Air Pressure Gauge Digital Fuel Pressure Gauge

Range -0.1~0~100MPa Accuracy 0.1 ,0.2 ,0.25,0.4 ,0.5
Overload capacity 1.5 times full Pressure Type Vacuum,Gauge,Absolute Pressure

Response time:

≤50ms

 Battery voltage AAA 7 batteries (3V),Lithium battery,External 220V/24V
Display

up to 5 dynamic pressure display

 Measuring medium:

water, gas, etc. compatible with stainless steel
Medium temperature: -20~80°C Relative humidity ≤80%
Connection size M20x1.5 Male or oem Pressure unit MPa/KPa/Bar/Psi/mBar
Case material ABS plastic Working temperature:

-10~60°C
Dial size 60,80,100mm

Features Stainless Steel Precision Digital Pressure Gauge Air Pressure Gauge Digital Fuel Pressure Gauge

1. The keys are made of rubber conductive keys, which are gentle to touch, easy to rebound, and have a longer life span.

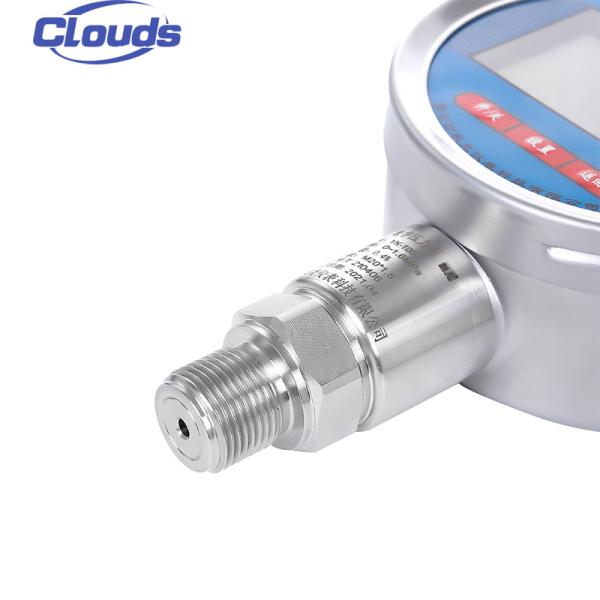

2. The instrument interface use stainless steel, high hardness, impact resistance, anti-rust and anti-fouling

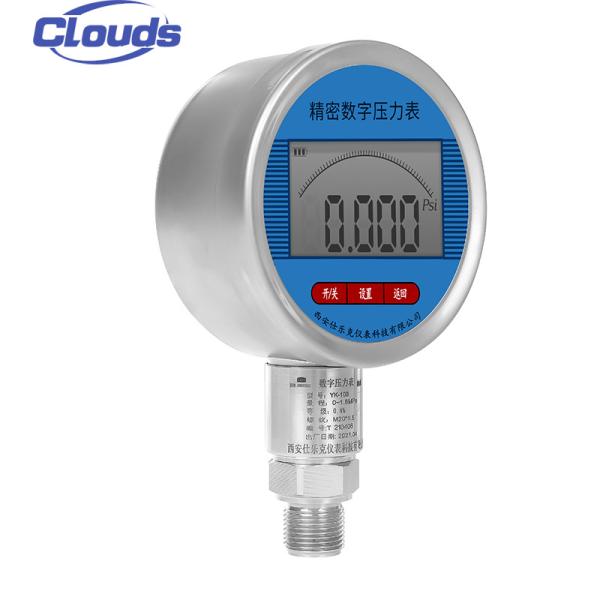

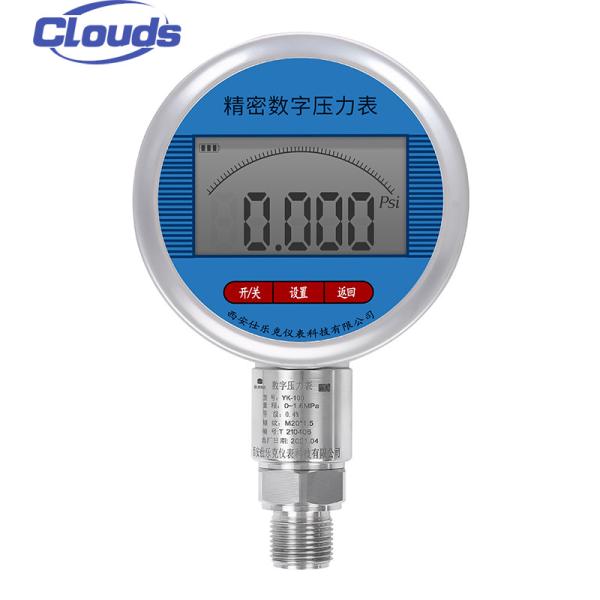

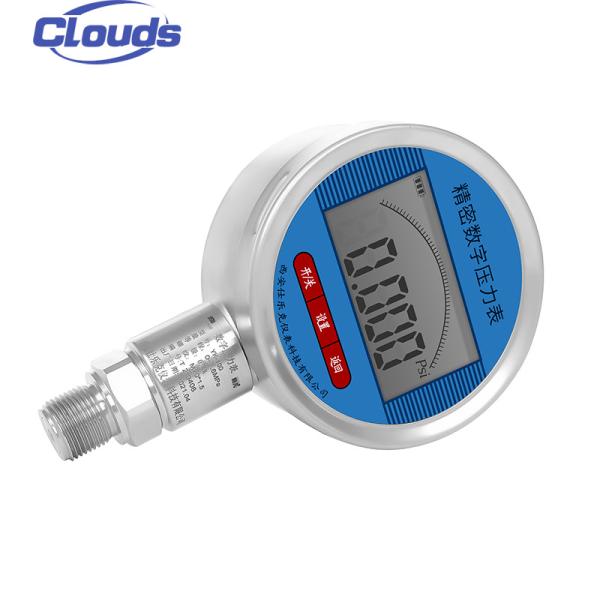

3. FSTN large LCD screen, clear display, easy to read, viewing angle and low temperature resistance performance is stronger than ordinary STN

4. Using high-precision imported AD chip, low power consumption and fast processing speed

5. Optimized circuit design, reduce signal transmission loss, accurate sensing, accurate measurement

6. One-key zero calibration, long press the zero key under atmospheric pressure to calibrate the zero.

7. The backlight time can be set freely. Long press the backlight to adjust the duration of the backlight.

8.Muti dispaly unit likeMpa,kpa,bar,pa,mH2O,mmH2o,kg/cm2,psi,mmHg,mbar,in.Hg,in.WC based on different

Range,default 3-5 type.

Ordering Stainless Steel Precision Digital Pressure Gauge Air Pressure Gauge Digital Fuel Pressure Gauge

YK-60/80/100 Digital Pressure Gauge
Code Measuring range
-0.1~0MPa, 0.6MPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa,25MPa, 40MPa..100Mpa
Code Process connection
M1 M20*1.5 M4 NPT1/2
M2 G1/4 M5 NPT1/4
M3 G1/2 M6 Customized
Code Power supply
P1 AAA 7 batteries
P2 Lithium battery
P3 External 220V/24V power supply
Code Accuracy
2 0.1
3 0.2
4 0.25
4 0.4
4 0.5
