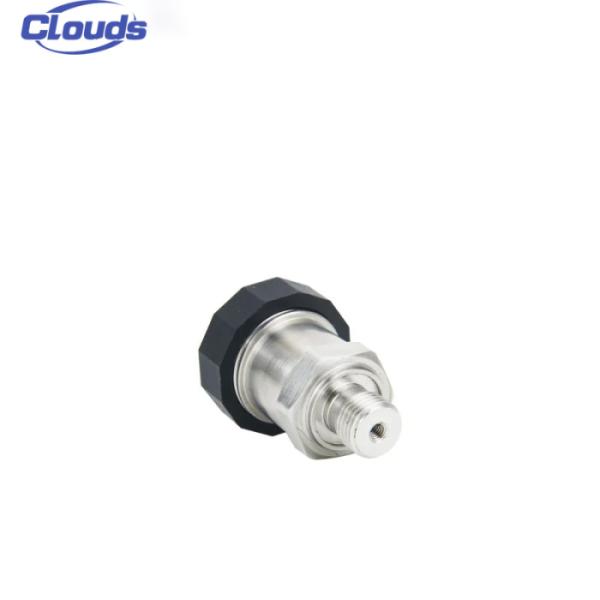

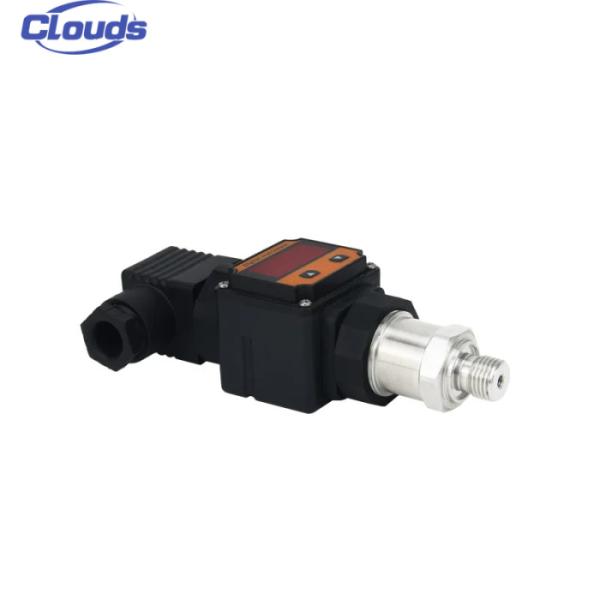

YD33 Digital Industrial Pressure Transmitter Smart Water Pressure Sensor
YD33 Digital Industrial Pressure Transmitter Smart Water Pressure Sensor
YD33 Digital Industrial Pressure Transmitter Smart Water Pressure Sensor
YD33 Digital Industrial Pressure Transmitter Smart Water Pressure Sensor
Specifications
Brand Name :
Clouds
Model Number :
YD33
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1pc
Price :
USD35.00/PC-USD55.00/PC
Payment Terms :
T/T, Western Union, MoneyGram, D/P
Supply Ability :
10000PCS per month
Delivery Time :
5-7days
Packaging Details :
Standard export carton box
Other Response Time :
50 msec
Material :
Stainless Steel
Housing Protection :
IP65
Application :
oil, gas, air, water etc
Storage Temperature :
-40 ~ 100 ℃
Sensor Type :
Ceramic pressure sensor
Product Package :
Plastic Box
Description

Description:

The YD33 digital smart industrial pressure transmitter, featuring an LED/LCD display, incorporates a high-quality imported piezoresistive pressure sensor. This transmitter offers local value reading for ease of use. Its fully welded 316L stainless steel housing ensures superior resistance to shock and vibration, along with EMI/RFI protection. Thanks to these features, the YD33 is resilient enough to withstand even the harshest operational conditions.

Specification:

Parameter YD33
Pressure Range Gauge / Absolute pressure optional.
Overload 200% F.S.
Burst Pressure 500% F.S.
Accuracy ≤ ±0.5%F.S typical<br>≤ ±0.25%F.S optional<br>≤ ±0.1%F.S (by customized) at 25℃<br>Including non-lin., rep. and hys.
Long-term Stability 0.1%F.S/Year
Working Temp. -20℃~80℃ (corrosive medium);<br>-40℃~80℃ (non-corrosive medium)
Compensation Temp. 0℃....50℃ (P≤35KPa) or -10℃...80℃ (P>35KPa)
Storage Temp. -40℃~125℃ (Nitrile rubber sealing ring);<br>-30℃~150℃ (fluororubber rubber sealing ring)
Medium Compatible Compatible with 316L Stainless Steel
Electrical Wire 2 Wires / 3 Wires
Output 4-20mA, 0-5V, 1-5V
Power Supply N/A (Not Specified)
Insulate resistance N/A (Not Specified)
Zero Temp. Drift N/A (Not Specified)
FS Temp. Drift 0.03%FS/℃ (≤35kPa), 0.02%FS/℃ (>35kPa)
Local display LED indicator
Specification 4 -1/2 bits LED/LCD local display<br>Non-linear: ±0.02%F.S.;<br>Display scope: -9999 to +9999
Sampling rate 10 times / sec.;<br>Working temp range: -30 to +80℃
Overload display ‘ERR’
Backlight Suitable for dark environment application.
Electrical connection DIN Hirschmann Terminal Box 4 Pins and IP65.
Mechanical vibration ±20g
Pressure connect port 1/4’‘NPT male, 1/2’‘NPT Female;<br>G1/2’’; G1/4’’male optional. (By customized)
IP rating IP65
Response time ≤10ms

Features:

  • With 4-1/2 bits LED display
  • 2 times range standard overload
  • 5 times range burst pressure
  • Fully Welded Stainless Steel Housing
  • Surge(lightning) protection
  • EMI/RFI Protection
  • Zero point and span adjustable
  • CE, RoHS certifificate approvedYD33 Digital Industrial Pressure Transmitter Smart Water Pressure Sensor
