Stainless Steel Thread Material 0-5v 4-20mA Hydraulic Mini Pressure Transmitter Sensor
Stainless Steel Thread Material 0-5v 4-20mA Hydraulic Mini Pressure Transmitter Sensor
Stainless Steel Thread Material 0-5v 4-20mA Hydraulic Mini Pressure Transmitter Sensor
Stainless Steel Thread Material 0-5v 4-20mA Hydraulic Mini Pressure Transmitter Sensor
Specifications
Brand Name :
Clouds
Model Number :
YD35
Certification :
ce
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000pcs/month
Delivery Time :
10days
Allowed Overload :
2 times the full range pressure
Display :
LCD
Electrical Connection :
Air plug connector
Thread :
M20 *1.5
Pressure Port :
M20×1.5 or customize
Output Signal :
4-20mA, 0-5V, or 0-10v
Description

0-5v 4-20mA Hydraulic Mini Pressure Transmitter Sensor

Description 0-5v 4-20ma hydraulic mini pressure transmitter sensor

0-5v 4-20mA Hydraulic Mini Pressure Transmitter Sensor

The Clouds YD35 pressure transmitter is meticulously designed to cater to a wide array of industrial pressure measurement applications. Its compact and robust design renders it suitable for various applications, such as hydraulics and pneumatics, vacuum operations, test equipment, level measurement, pressure control, compressor control, pump protection, and numerous other processing and control tasks. With a comprehensive selection of electrical and process connection options, it can fulfill nearly any specific requirement.

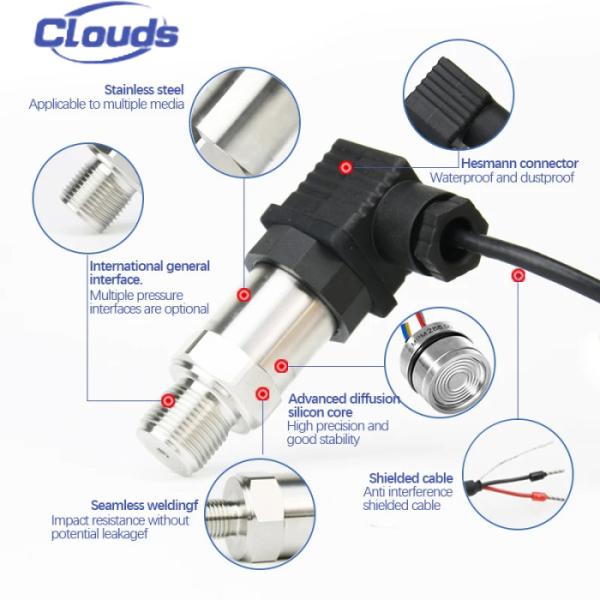

Detailed Images 0-5v 4-20ma hydraulic mini pressure transmitter sensor

Specification 0-5v 4-20ma hydraulic mini pressure transmitter sensor


Item 0-5v 4-20mA Hydraulic Mini Pressure Transmitter Sensor
Pressure Range 0-0.1bar to 0-1000bar
Output signal 4-20mA, 0-20mA, 0-5V,0-10V and others
Pressure Interface G1/4, G1/2 1/4NPT, 1/2NPT, M20*1.5 and others
Electric Interface L plug interface, Circular plug interface, Wire output, With cable
Thread material stainless steel
Measure Medium -30-100°C
Environmental temperature -20-80°C
Storage temperature -40-100°C
Case material stainless steel

Dimension 0-5v 4-20ma hydraulic mini pressure transmitter sensor

Features 0-5v 4-20ma hydraulic mini pressure transmitter sensor

Small size, easy installation Durable stainless steel housing Wide temperature range: -40~125℃ Durable thin film sensor technology Pressure range from -1 bar to 60bar 0.5-4.5V ,1-5V ,0-5V proportional output 0-10V, 4-20 mA, others available High resistance to pressure peaks and vibrations
