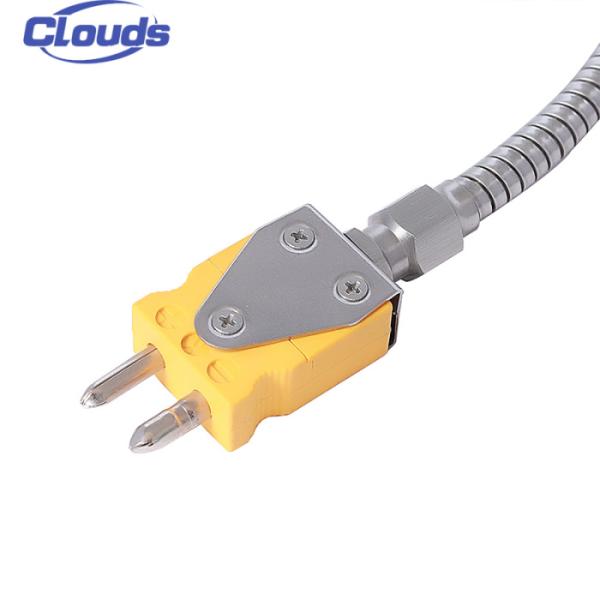

Flexible Stem High-Temperature Melt Pressure Transducer with Thermocouple for Measurements
Flexible Stem High-Temperature Melt Pressure Transducer with Thermocouple for Measurements
Flexible Stem High-Temperature Melt Pressure Transducer with Thermocouple for Measurements
Flexible Stem High-Temperature Melt Pressure Transducer with Thermocouple for Measurements
Specifications
Brand Name :
Clouds
Model Number :
YD38
Place of Origin :
China
MOQ :
1pc
Price :
USD149/PC-USD180/PC
Payment Terms :
T/T, Western Union, D/A, D/P
Supply Ability :
1000PCS per month
Delivery Time :
10days
Packaging Details :
Standard export carton box Low cost High temperature melt pressure sensor transmitter
Sensor Type :
Ceramic pressure sensor
Flow Range :
0~100 (6110) / 0~10000 (6150) SLPM
Response Speed :
0.1m/s
Pressure Type :
Gauge, absolute ,sealed gauge
Overpressure :
300%F.S.(≤70Kpa) | 200%F.S.(＜4Mpa)
Flow Accuracy :
±(2.0+0.5FS)
Load Capacitance :
0.22uF less
Nterface Type :
usb
Description

Description

The YD38 Series High-Temperature Melt Pressure Transducer (Flexible Stem) is capable of measuring both pressure and temperature at a single point. The YD-38 model offers an optional thermocouple feature.

This series can be seamlessly integrated with an Intelligent Digital Pressure Instrument, allowing for adjustable zero and full span settings. The amplified signal output can be seamlessly connected to a PLC, offering the benefits of highly precise and reliable pressure measurements, excellent quality, and internal calibration accuracy of 80%.

Specification

Specification YD38 Series High-Temperature Melt Pressure Transducer (Flexible Stem)
Insulation Resistance 1000Megohms @50Vdc
Max Diaphragm Temperature 0~350℃
Thermocouple Type J, K, E, PT100 Optional (PT124B-121T)
Electric Connector 5PIN, 6PIN
Process Connector 1/2ʺ-20UNF, M14×1.5, M18×1.5 (Customer Design)

Features

  • Stainless steel welding
  • Easy to install
  • Zero and span adjustable
  • Various amplified signals optional
  • Internal 80% shunt calibration
  • Good stability and anti-jamming capability
  • Excellent stability and repeatability
