Specifications
Brand Name :
YunYi
Model Number :
3051 / UC-800
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
1 - 19 pieces $300.00 20 - 49 pieces $235.00 50 - 99 pieces $220.00 >= 100 pieces $200.00
Payment Terms :
L/C, D/P, T/T
Supply Ability :
4000pcs / month
Packaging Details :
carton box
accuracy :
0.2% FS - 0.5%FS
pressure range :
0 ~ 1.6Kpa 1.6~2.5MPa 2.5Mpa~20Mpa
Description

Digital Differential Pressure Transmitter 4-20ma Air Adjustable With Lcd Display Water Pressure Transmitter LiquidDigital Differential Pressure Transmitter 4-20ma Air Adjustable With Lcd Display Water Pressure Transmitter Liquid

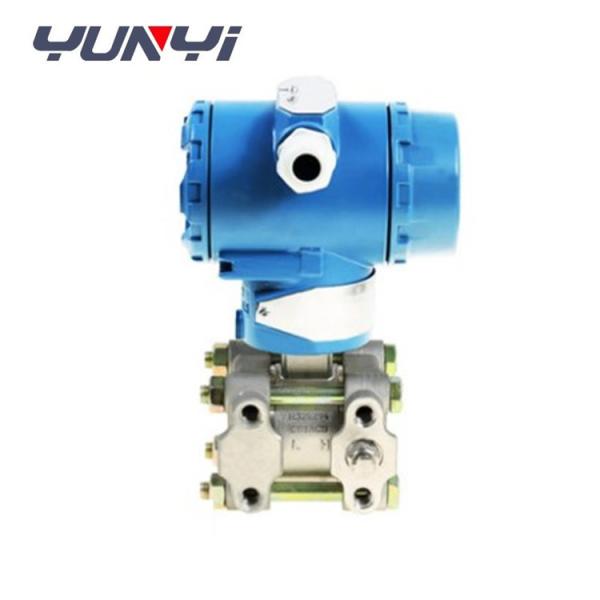

UC800 Project Special Differential Industrial Pressure Transmitter

Description of Differential Industrial Pressure Transmitter

Special Pressure Transmitter is the result of a combination of self-developed anti-jamming, high stability digital circuits and the introduction of foreign Single crystal resonant silicon sensor technology. Its performance much better than our domestic metal capacitive sensor technology transmitter, and main show in the field zero stability and long-term operation stability, and rapid response.

.


Specification of Differential Industrial Pressure Transmitter

Differential Industrial Pressure Transmitter
Measuring Rang Differential Pressure: 0.12~7.5Kpa,0.21-21Kpa
Gauge Pressure: 0~40Mpa
Absolute Pressure 0.12~21Mpa
Turn Down Ration 40:1
Application Different Pressure
Accuracy ±0.1, 0.3, 0.5% of Span
Process Fluid Liquid, Gas, Vapor
Temperature Drift Zero Drift: 0.5%FS/50℃
Span Drift:0.7%FS/50℃
Stability ±0.1%/year
Working Temperature -40℃ ~ 105℃
Power Supply 9~46V DC
Output 4~20mA two-wire system
Max Pressure 40Mpa
Respond Time Less Than 5 Seconds
Humidity Limits 0 to 100% Relative Humidity
Turn On Time 2 Seconds With Minimum Damping
Display LCD LED
Electrical Connections 1/4" Npt (M20 Conduit Threads)
Temperature Effect ±0.18% of Span Per 200C
Process Connection 1/4-18NPT
Diaphragms SS316L / Hastelloy B / Hastelloy C / Monel / Tantalum
Wetted O-Rings Buna N/Viton/PTFE
Bolts & Nuts Carbon Steel / SS316
Mounting Bracket Carbon Steel / SS304 or SS316
Coverter Housing Low Copper Cast Aluminium Alloy With Polyurethane
Fill Fluid Silicone
Casing Protection IP67
Process Connection Flange, Direct, Side Mounted, Diaphragm, Insert Type
Weight Approximately 4.5KG


Features of Differential Industrial Pressure Transmitter

  • Single crystal resonant silicon sensor technology
  • Super performance, use to measure pressure, differential pressure and temperature..
  • Stability: ≤0.2%
  • Accuracy: ±0.05%~±0.1%F.S/±0.2%F.S
  • Overload can reach 2 times
  • Support upgrade of basic scene control technique
  • Standard 4～20mA,RS-485 communication interface
  • Little static effect

Overview
Essential details
Warranty:
1 years
Customized support:
OEM, ODM, OBM
Place of Origin:
China
Brand Name:
Yunyi
Model Number:
3051
Measurement medium:
liquid, gas, air
Accuracy:
±0.1% URL ±0.2% URL
Operating Temperature Range:
-20~+100°C
Storage Temperature Range:
-40~+100°C
Power supply:
24VDC(12VDC~45VDC) Explosion-proof type:12~28VDC
Output signal:
4~20mA 4~20mA with HART
Protection:
IP65
Medium temperature;:
-40~+100°C
Explosion-proof grade::
Exia II CT6 /Exd II BT5
name:
Smart Sensor Water differential Pressure Transmitter
Supply Ability
Supply Ability
1000 Piece/Pieces per Month wind pressure transmitter / sensor
Packaging & delivery
Packaging Details
Hot Seling Smart Sensor System 4-20Ma Supplier pressure Transducer Rs485 Water differential Pressure Transmitter
Corrugated cardboard boxes outer and foam paper inner
Port
Shanghai,Shenzhen,Tianjin
Lead time:
Quantity(pieces) 1 - 100 >100
Lead time (days) 15 To be negotiated

Hot Seling Smart Sensor System 4-20Ma Supplier pressure Transducer Rs485 Water differential Pressure Transmitter

Application Hot Seling Smart Sensor System 4-20Ma Supplier pressure Transducer Rs485 Water differential Pressure Transmitter

Widely used in pharmaceutical, medical equipment, oil, gas, chemical, urban construction power, metallurgy, textile, aerospace, scientific research, leak detection, automation equipment and other fields.
