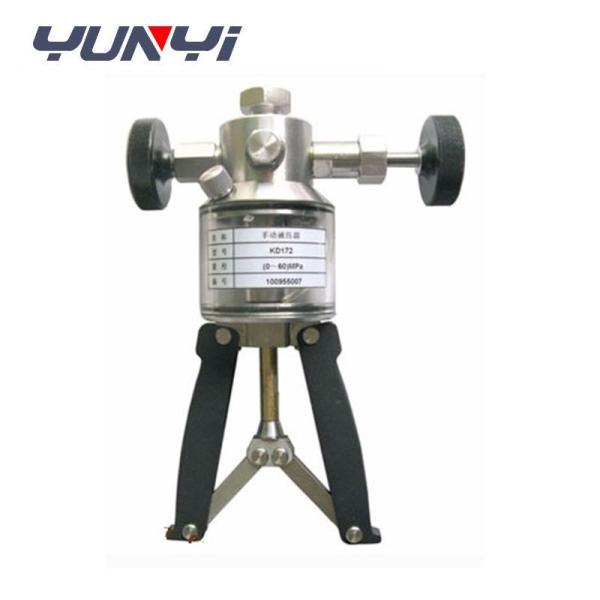

Handheld Pressure Test Pump Calibrator Pressure Gauge Calibrator XYSB60 60MPa
Handheld Pressure Test Pump Calibrator Pressure Gauge Calibrator XYSB60 60MPa
Handheld Pressure Test Pump Calibrator Pressure Gauge Calibrator XYSB60 60MPa
Handheld Pressure Test Pump Calibrator Pressure Gauge Calibrator XYSB60 60MPa
Specifications
Brand Name :
Yunyi
Model Number :
XYSB 60
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
670 $
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs per month
Delivery Time :
5~8 working days
Packaging Details :
Standard export package
Pressure Range :
60MPa
Working Temperature :
0~40C
Gauge Connector :
1/4npt
Description

handheld pressure calibrator

Description YFP25 Pneumatic Pressure handheld pressure calibrator

Hand-Held Pressure Calibrator Pumps is a portable pressure pump.For field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.Can also provide pressure source correction table for pressure measuring instrument manufacturer.All kinds of pressure transmitter within every 60 M pa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pump.

Detailed Images handheld pressure calibrator

Handheld Pressure Test Pump Calibrator Pressure Gauge Calibrator XYSB60 60MPaHandheld Pressure Test Pump Calibrator Pressure Gauge Calibrator XYSB60 60MPaHandheld Pressure Test Pump Calibrator Pressure Gauge Calibrator XYSB60 60MPa

Specification Hydraulic handheld pressure calibrator

1. Pressure Range: 0～60MPa

2. Structure diagram( right)

3. Operation step

output pressure range

Y039: 0-1.6MPa

Y061: -0.1-0MPa

Y060: -25MPa

YFP-16: -0.088~1.6MPa(-0.88~16bar)

YFP-20: -0.088~2.0MPa(-0.88~20bar)

YFP-25: -0.088~2.5MPa(-0.88~25bar)
operating temperature -20~50C
operating relative humidity ~100%
flexible hose connector M20*1.5 female
master gage connector 1/4NPT male
dimensions 235×120×65 230 x 110 x 60
weight 0.6kg 0.5kg
Accessories 500 mm long plastic hose and a leatherette carrying bag
Outlet threads 1/4 NPT, or to custom request
Vernier-adjuster micro-adjustable, volume control

Features Hydraulic handheld pressure calibrator

1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing
,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.

Selection Guide Hydraulic handheld pressure calibrator

YFP-16: -0.088~1.6MPa

Stability: 0.05%

Type: Pneumatic pressure

YFP-20: -0.088~2.0MPa

Stability: 0.05%

Type: Pneumatic pressure

YFP-25: -0.088~2.5MPa

Stability: 0.05%

Type: Pneumatic pressure

Y039: 0~1.6MPa

Stability: 0.05%

Type: Pneumatic pressure

Y060: 0~25MPa

Stability: 0.05%

Type: Hydraulic pressure

Y061: -0.08~0MPa

Stability: 0.05%

Type: Pneumatic pressure

Handheld Pressure Test Pump Calibrator Pressure Gauge Calibrator XYSB60 60MPa
