Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment
Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment
Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment
Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment
Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment
Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment
Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment
Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment
Specifications
Brand Name :
Yunyi
Model Number :
LS
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
875~1250USD/PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs per week
Delivery Time :
10 work days
Packaging Details :
Carton Packaging
Pressure range :
0-60mpa
Working medium :
Oil
Thread Size :
M20*1.5
Upper Limit :
0.6MPa
Lower Limit :
0.04MPa
Power :
Hydraulic
Description

New Model Desk-top Hydraulic Piston Pressure Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment

Description
New Model Luxury Desk-top Hydraulic Piston Pressure Calibrator Dead Weight Tester, Pressure Gauge is a Standard calibration. Dead weight testers are so called primary standards which means that the pressure measured by a dead weight tester is defined through other quantities; Length, mass and time. Typically dead weight testers are used in calibration laboratories to calibrate pressure transfer standards like electronic pressure measuring devices.

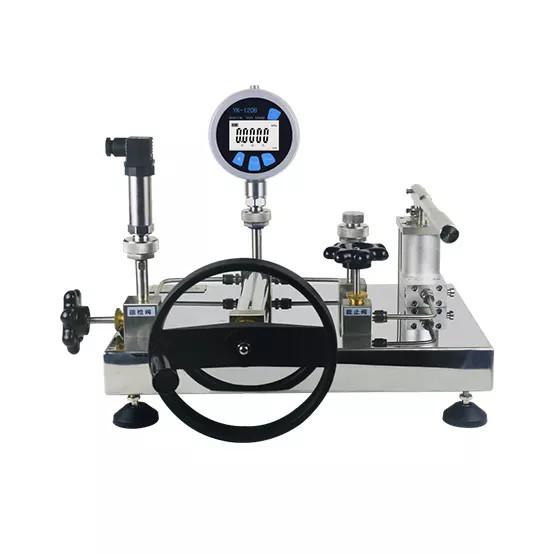

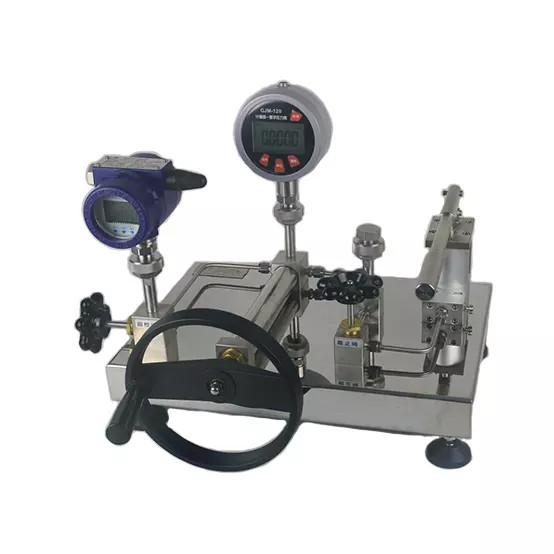

Detailed Image

Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration EquipmentDesktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration EquipmentDesktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment

Specification

Parameter Unit 0.6Mpa 6Mpa 25Mpa 60Mpa
Upper limit Mpa 0.6 6 25 60
Lower limit Mpa 0.04 0.1 0.5 1
Nominal piston area cm2 1 0.5 0.2 0.1
Nominal mass kg 0.4 0.5 1 1
Generated pressure MPa 0.04 0.1 0.5 1
Thread Size M20×1.5 M20×1.5 M20×1.5 M20×1.5
Medium 25# transformer oil or mixer of transformer oil and kerosene oil as 7:1, the kinematic viscosity is between 9 ~ 12 centistoke at 20℃,acid value is not more than 0.05mg KOH/g 25# transformer oil or mixer of transformer oil and kerosene oil as 7:1, the kinematic viscosity is between 9 ~ 12 centistoke at 20℃,acid value is not more than 0.05mg KOH/g Sebacate (DIDG or diisooctyl sebacate) the kinematic viscosity is between 20 ~ 25 centistoke at 20℃,acid value is less than 0.05mg KOH/g Sebacate (DIDG or diisooctyl sebacate) the kinematic viscosity is between 20 ~ 25 centistoke at 20℃,acid value is less than 0.05mg KOH/g
