Micro Differential Pressure Gauge Calibrator Hose plug Connection
Micro Differential Pressure Gauge Calibrator Hose plug Connection
Micro Differential Pressure Gauge Calibrator Hose plug Connection
Micro Differential Pressure Gauge Calibrator Hose plug Connection
Micro Differential Pressure Gauge Calibrator Hose plug Connection
Micro Differential Pressure Gauge Calibrator Hose plug Connection
Micro Differential Pressure Gauge Calibrator Hose plug Connection
Micro Differential Pressure Gauge Calibrator Hose plug Connection
Micro Differential Pressure Gauge Calibrator Hose plug Connection
Micro Differential Pressure Gauge Calibrator Hose plug Connection
Micro Differential Pressure Gauge Calibrator Hose plug Connection
Micro Differential Pressure Gauge Calibrator Hose plug Connection
Specifications
Brand Name :
Yunyi
Model Number :
YK20
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
USD$1282-USD$1398/Unit
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
100 unit/month
Delivery Time :
5-10 working days
Packaging Details :
Standard export package
Name :
Micro differential pressure gauge calibrator
Model :
YK201
Pressure range :
-10kpa~+10kPa
Accuracy :
0.05 level
Medium :
clean and free of air or nitrogen
Connection :
Hose plug
Weight :
4.5kg
Warranty :
365 days
Description
Description of Calibrator for micro differential pressure gauge
This Micro differential pressure gauge calibrator is composed of the miro generation pump ,standard gauage and the differential gauge bracket.It use high-quality stainless steel and aluminum alloy materials and thge seals and connectors imported from Germany. High-precision standard device to ensure accurate calibration .Easy to operate, stable lifting and lowering pressure, small adjustment fineness, easy maintenance, not easy to leak, with the highest safety performance in the industry, and widely used in power, petrochemical, metallurgy, transportation, pharmaceutical, metrology, education, scientific research and other fields

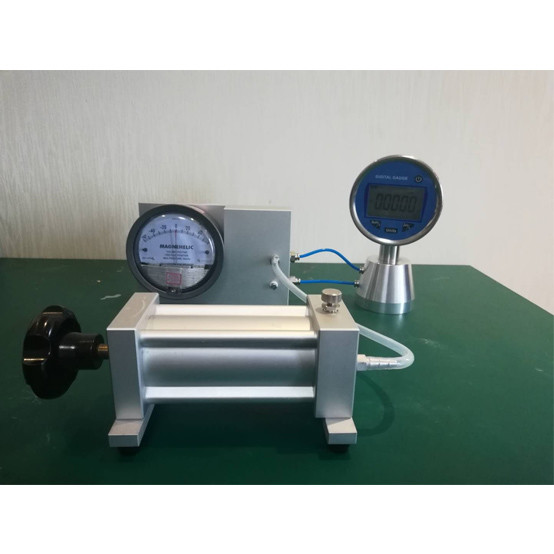

Detailed Images of Calibrator for micro differential pressure gauge
Micro Differential Pressure Gauge Calibrator Hose plug ConnectionMicro Differential Pressure Gauge Calibrator Hose plug Connection
Specification of Calibrator for micro differential pressure gauge
Name Micro differential pressure gauge calibrator
Model YK201
Pressure range -10kpa~+10kPa
Accuracy 0.05 level
Medium clean and free of air or nitrogen
Connection Hose plug
Components pressure pump + digital standard gauge + differential pressure gauge mounting bracket
Weights Around 4.5kg

Features of Calibrator for micro differential pressure gauge
1. Full range pressure calibration, equipped with high-precision digital standard gauge.
2. Small dimension,convient to check various pressure instruments on site or in the measuring room.
3. Portable metal shell, strong anti-interference, strong impact resistance.
4.Open structure, all parts and pipelines are combined on the front for easy maintenance.
5.Large capacity chamber, wide-stroke screw-type pressure generate pump, easy to make pressure, and high pressure speed.
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
