Specifications
Brand Name :
YunYi
Model Number :
YD31
Place of Origin :
China
MOQ :
1pc
Price :
USD26.0/PC-USD46.0/PC
Payment Terms :
T/T, Western Union, D/A, D/P
Supply Ability :
1000PCS per month
Delivery Time :
10days
Packaging Details :
Standard export carton box 4-20ma absolute gauge smart water pressure transmitter sensor
Name :
GPT230 analog 0~5V 4~20mA stainless steel CE RoHs ceramic pressure transducer
range :
0-20Mpa
accuracy :
0.5% FS
power supply :
24VDC
Pressure connection :
1/2npt
Output :
4-20mA pressure transducer
Application :
Chemical Industry
Sensor :
Diffused silicon pressure transducer
Type :
gauge pressure transmitter
Description

GPT230 analog 0~5V 4~20mA stainless steel CE RoHs ceramic pressure transducer

Product description 4-20ma absolute pressure intelligent water pressure transmitter sensor

YD31 series pressure transmitter have the characteristics of high quality, high stability, small size, low weight, compact structure, low cost and volume-production. It is widely used to measure pressure such as occasion of compressor, Auto, air condition etc. The product is made of stainless steel and well-known brand sensor. The special transmitter converting circuit can adjust the zero value and the full range expediently. It also has the intrinsically safe certificate, the explosion-proof certificate. The product is produced with military craft and has the characteristics of advanced design, perfect technology, strict production, superior device, superior management, perfect quality control system.

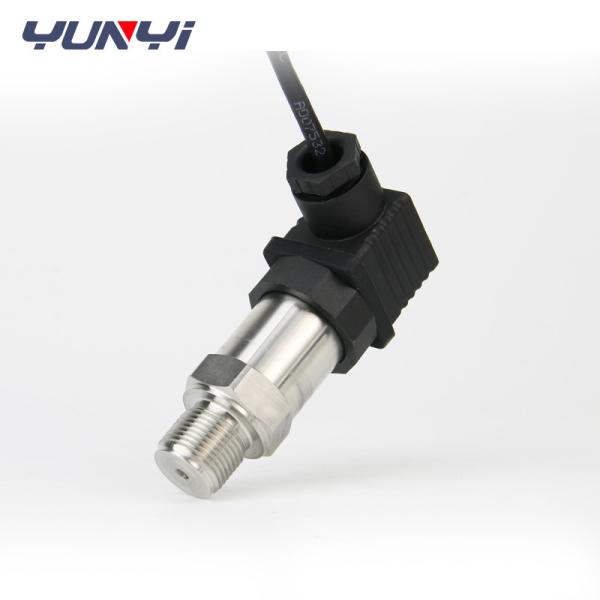

Detailed Images 4-20ma absolute gauge smart water pressure transmitter sensor
GPT230 Analog Ceramic Pressure Transducer 0~5V 4~20mA Stainless Steel CE RoHsGPT230 Analog Ceramic Pressure Transducer 0~5V 4~20mA Stainless Steel CE RoHs
GPT230 Analog Ceramic Pressure Transducer 0~5V 4~20mA Stainless Steel CE RoHs
Specification 4-20ma absolute gauge smart water pressure transmitter sensor
Measure Range -100kPa~0.....10kPa...100MPa
Pressure Type gauge (G), absolute (A), sealed gauge (S)
Overpressure 150%FS
Accuracy 0.2%FS, 0.5%FS
Output signal 4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
Supply 12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
Temp.coefficient of zero ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Temp.coefficient of span ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Compensated temperature range -10~+70°C
Operating temperature range -40~+125°C
Storage temperature range -40~+125°C
Insulating resistance ≥100MΩ@100Vdc
Load resistance R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
Electrical interface DIN43650, option 1.5m cable connetion
Pressure interface G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
Material of pressure membrane 316L stainless steel
Material of housing 1Cr18Ni9Ti stainless steel
Response time(10%~90%) ≤10ms
Shock/impact 10gRMS,(20~2000)Hz/100g,11ms
Protection IP65
Dimension 4-20ma absolute gauge smart water pressure transmitter sensor
GPT230 Analog Ceramic Pressure Transducer 0~5V 4~20mA Stainless Steel CE RoHs
Application 4-20ma absolute gauge smart water pressure transmitter sensor

Absolute gauge smart pressure transmitter is widely used in a variety of industrial automation environment, involving water conservancy and hydropower, railway transportation, intelligent building, production control, aerospace, military, petrochemical, oil wells, electricity, ships, machine tools, pipes and many other industries.

GPT230 Analog Ceramic Pressure Transducer 0~5V 4~20mA Stainless Steel CE RoHs

Selection Guide 4-20ma absolute gauge smart water pressure transmitter sensor

Model YD31
Pressure Range
(0-X)KPa or MPa: -100kPa~0.....10kPa...100MPa
Pressure type
G Gauge D Differential A Absolute

Output signal
E 4-20mA F 0-5Vdc J 1-5Vdc

K 0-10Vdc V 1-10Vdc

Power Supply

A1 10~36VDC

Electrical Interface
B1 Hirschman connector

B2 Directly cable connection

B3 Pin aviation connector

Display

D1 No display

D2 LED display

Pressure Interface
C1 1/2NPTM C2 1/4NPTM

C3 M20x1.5M C4 G1/2M

C5 G1/4M Cx other customized

GPT230 Analog Ceramic Pressure Transducer 0~5V 4~20mA Stainless Steel CE RoHs

GPT230 Analog Ceramic Pressure Transducer 0~5V 4~20mA Stainless Steel CE RoHs
