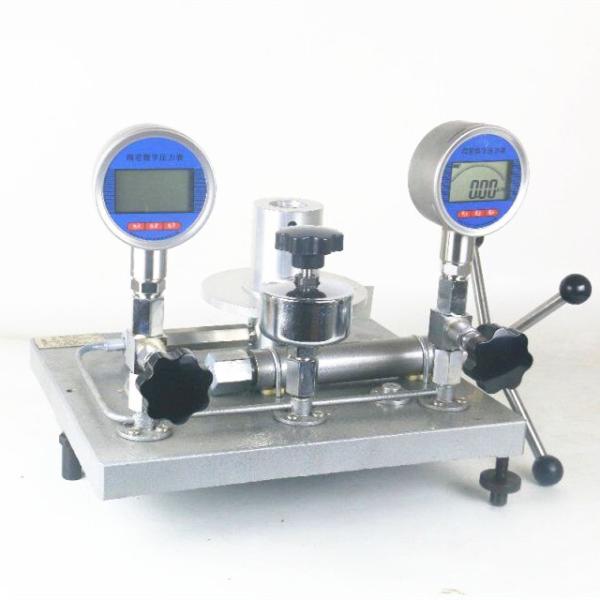

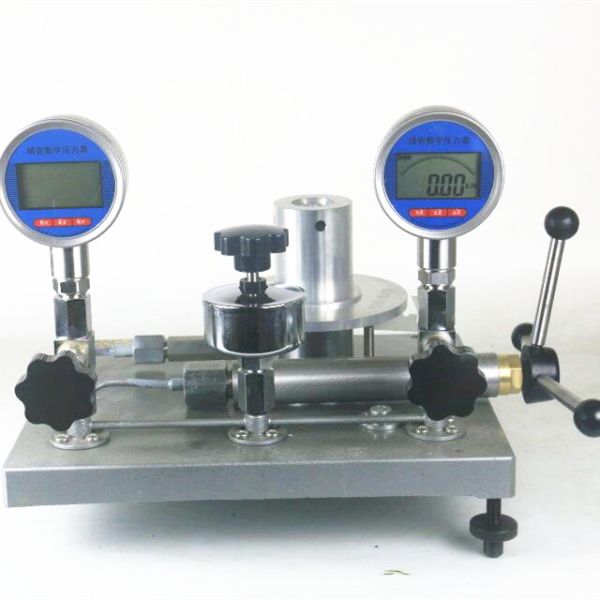

Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester
Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester
Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester
Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester
Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester
Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester
Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester
Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester
Specifications
Brand Name :
Yunyi
Model Number :
YS series
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
$845-$932/p
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10pcs/w
Delivery Time :
7 days
Packaging Details :
Wooden box
Item :
Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester
Model :
YS-6 、 YS-60 、YS-250、 YS-600、YS-2.5 YS-1000
Range :
0.04 ～ 0.6MPa ； 0.1～6 MPa ； 0.5～25 Mpa； 1～60 Mpa ；2-100MPa
Piston material :
Tungsten Carbide
Weights material :
Carbon steel
Working medium :
Transformer oil
Warranty :
1 year
Port :
Shenzhen
Description

Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester

Description Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester

Dead Weight Tester are also often referred to as piston pressure gauges or pressure gauges, and are also called pressure balances. They are mainly used in measurement rooms, laboratories, and production or scientific experiments as pressure reference devices. Piston pressure gauges are also directly used in The high-reliability monitoring link monitors the voting of other local instruments.

Parameters Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester

Parameters

unit

 Pressure value
0.6MPa 6MPa 25MPa 60MPa
upper limit of measurement

MPa

0.6

6

25

60

lower limit of

measurement

MPa

0.04

0.1

0.5

1
piston pressure gauge cm² 1 0.5 0.2 0.1

nominal area

Chassis and piston

Nominal

mass

kg

0.4

0.5

1

1

pressure

generated

MPa

0.04

0.1

0.5

1

Special weight

Nominal

mass

kg

 0.1；0.5 0.5；2.5 1；5 1；5

pressure

generated

MPa

 0.01；0.05 0.1；0.5 0.5；2.5 1；5
Number 个 6；10 4；11 4；9 4；11
Both ends of the lock nut M20×1.5 M20×1.5 M20×1.5 M20×1.5
Weight kg 35 65 85 95

Working liquid

Transformer oil to 20 ℃ Kinematic viscosity 9 ~ 12 centistokes,

The acid value of not more than 0.5 mg KOH/ G

Medicinal castor oil to 20 ℃ kinematic

viscosity 900 ~ 1100 centistokes, acid value is not greater than 1.6 mg

KOH/ G

Purpose Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester
YS-6 Deadweight Tester. Pressure Range 5.8 - 87psi. Accuracy: 0.05% or 0.020% of reading.
YS-60 Deadweight Tester. Pressure Range 14.5 - 870 psi. Accuracy: 0.05% or 0.020% of reading.
YS600 Deadweight Tester. Pressure Range 145 - 8700 psi. Accuracy: 0.05% or 0.020% of reading

Pressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight TesterPressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight TesterPressure Gauge Calibrator Dead Weight Tester Piston Pressure Gauge Deadweight Tester
