Cheap Stainless Steel 316L Digital Air Pressure Gauge /Manometer IndustriaPressure Gauge Digital Display Pressure Meter

Description

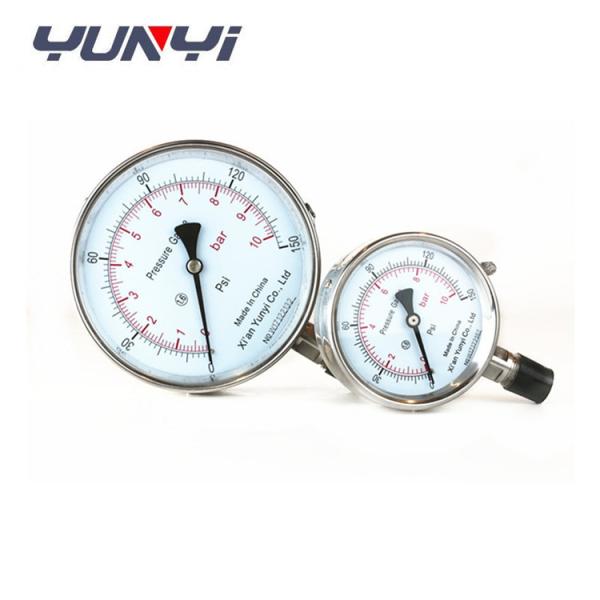

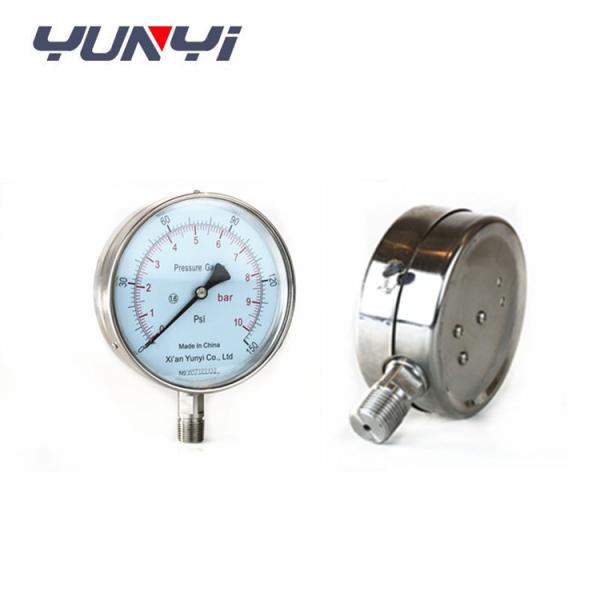

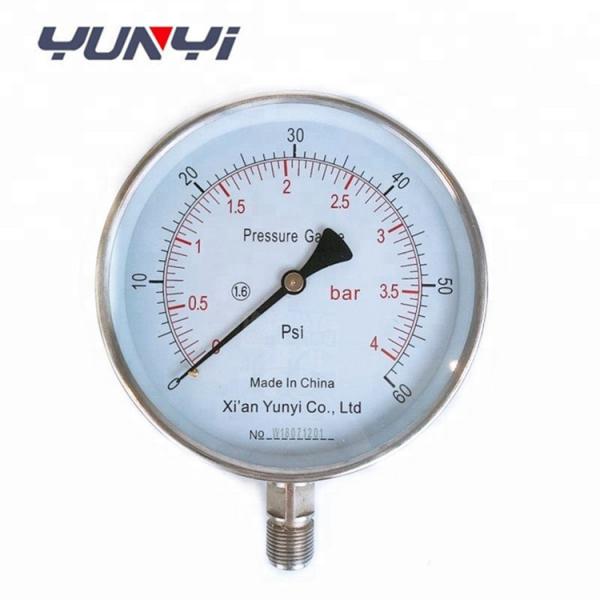

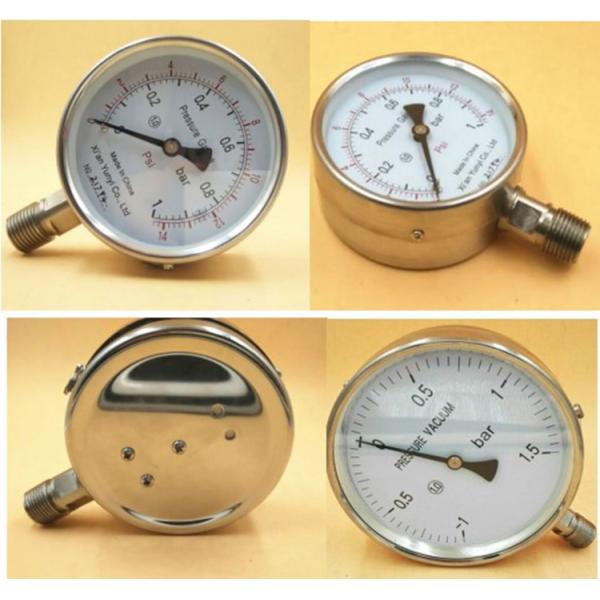

YTF series stainless steel pressure gauge with direct contact, fittings and pressure sensitive element of SUS316 material, has strong anti-corrosion properties of the measured medium, at the same time, housing, machines and other core components are all 1Crl8Ni9Ti, OCrl8Ni 12M02Ti material. Hermetically structure, the outer surface of the entire spray PTFE coating, has the best corrosion resistance to environmental capacity, so that the product is suitable for corrosive medium stainless steel element detection and harsh external corrosive environments.

Specification
1.Accuracy class: 1.6, 2.5,1.0(custom)
2.Measuring range: (Mpa) (custom)
0-0.16 0-0.25 0-0.1 0-0.4
0-0.6 0-1.6 0-2.5 0-1
0-40-60-100-16
0-250-400-60
-0.1-0 -0.1-0.06 -0.1-0.15 -0.1-0.3
-0.1-0.5 -0.1-0.9 -0.1-1.5 -0.1-2.4
3. Parts material: SUS316, SUS316L, 1Crl8Ni9Ti(custom)
4. The instrument nominal diameter: Φ60mm Φ100mm Φ150mm( custom)
5. Connector thread size: M20X1.5 (G3 / 8 ", Gl / 4", NPTl / 2 "or custom)
6.Working conditions:
(1) Ambient temperature: -40-70 ℃
(2) Working pressure: Static load: with a scale value 3/4 alternating load: The scale value short 2/3 pressure: the scale value

Details Images

Features

Widely used in petroleum, chemical, chemical fiber, metallurgy, power station, food and other industrial sectors of the corrosion resistance, high temperature requirements of the process of measuring a variety of fluid medium pressure.

Applications
Industrial, petroleum, chemical, heating systems, piping, instrumentation, pneumatic line and auxiliary equipment
