CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L
Specifications
Brand Name :
Yunyi
Model Number :
YR11
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
USD$168-USD$298/Unit
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
1000 unit/month
Delivery Time :
5-10 working days
Packaging Details :
Standard export package
Material :
316L, BrassCover: 316L, Brass
Maximum input pressure :
500, 3000psig
Output pressure :
0~25, 0~50, 0~100, 0~250, 0~500psig
Safety test pressure :
1.5 times the maximum input pressure
Applicable temperature :
-40F~+165F (-40~74ºC)
Leak rate :
2*10-8 atm cc/sec He
Cv value :
0.08
Weight :
2.5kg
Description

Description

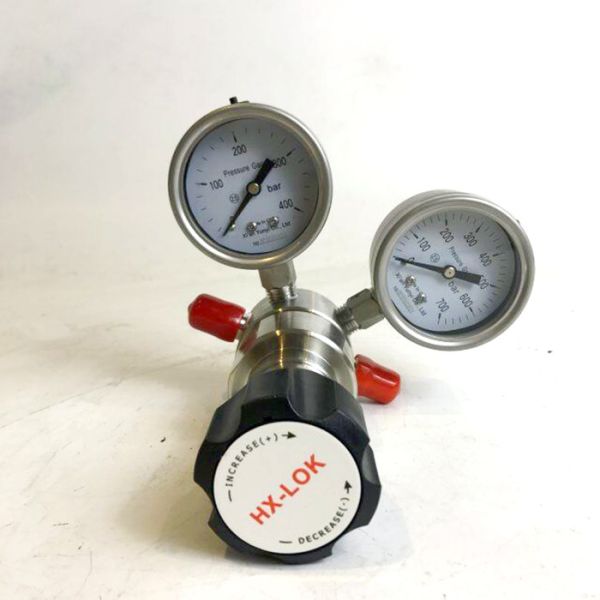

YR11 series stainless steel pressure reducer, unipolar diaphragm decompression structure, stainless steel diaphragm pressure transmission, stable combing pressure, high response sensitivity, suitable for pure gas, standard gas, corrosive gas
1: Unipolar decompression structure
2. The mother body and the diaphragm adopt a hard seal form
3. Female thread: 1/4''NPT (F)
4. Internal structure is easy to purge
5. Built-in filter
6. Can be installed in panel or wall
7 Scope of application: laboratory/gas chromatography instruments/ gas lasers/gas busbars/petrochemical industry/test equipment

Detailed Images air pressure regulator

CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L

CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L

Specification gas pressure regulator

Diaphragm Hastelloy, 316L
Material Body: 316L, BrassCover: 316L, Brass
Filter 316L (10um)
Seat PCTFE, PTFE, Vespel
Spring 316L
Spool jack 316L

Features air gas pressure regulator

Maximum input pressure 500, 3000psig
Output pressure 0~25, 0~50, 0~100, 0~250, 0~500psig
Safety test pressure 1.5 times the maximum input pressure
Applicable temperature -40F~+165F (-40~74ºC)
Leak rate 2*10-8 atm cc/sec He
Cv value 0.08

FAQ

Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.

Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?
A: We offer 12 months warranty time.

Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
