SS316L Stainless Steel Pressure Regulator DN2 Air Gas Needle Valve
SS316L Stainless Steel Pressure Regulator DN2 Air Gas Needle Valve
SS316L Stainless Steel Pressure Regulator DN2 Air Gas Needle Valve
SS316L Stainless Steel Pressure Regulator DN2 Air Gas Needle Valve
SS316L Stainless Steel Pressure Regulator DN2 Air Gas Needle Valve
SS316L Stainless Steel Pressure Regulator DN2 Air Gas Needle Valve
SS316L Stainless Steel Pressure Regulator DN2 Air Gas Needle Valve
SS316L Stainless Steel Pressure Regulator DN2 Air Gas Needle Valve
Specifications
Brand Name :
yunyi
Model Number :
YR35
Certification :
ce
Place of Origin :
china
MOQ :
1
Price :
$25/pcs
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100-00/month
Delivery Time :
7days
name :
316L SS mini high pressure air gas needle valve
Medium :
Liquid,gas
Max working pressure :
138 bar (2000 psig)
Nominal diameter :
DN2-DN5(mm)
Description

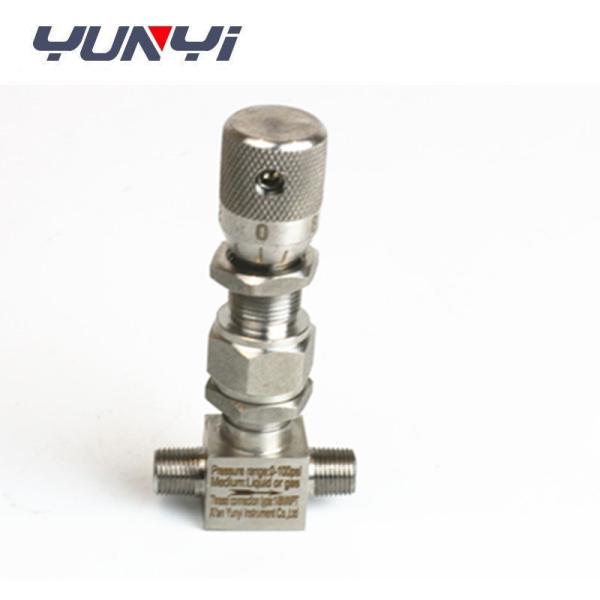

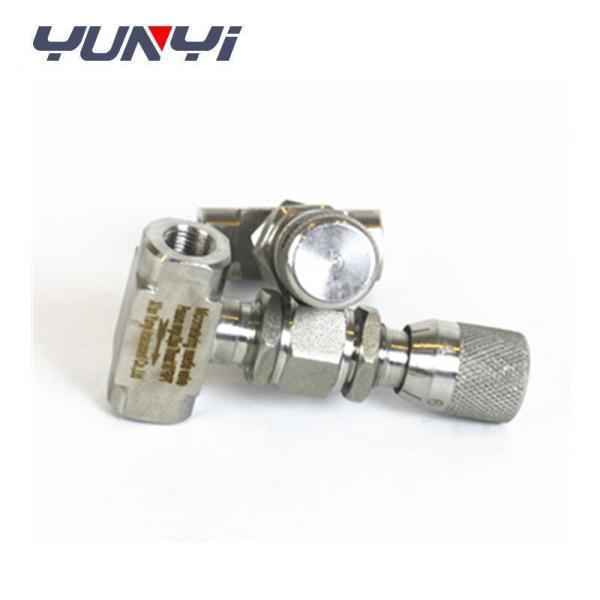

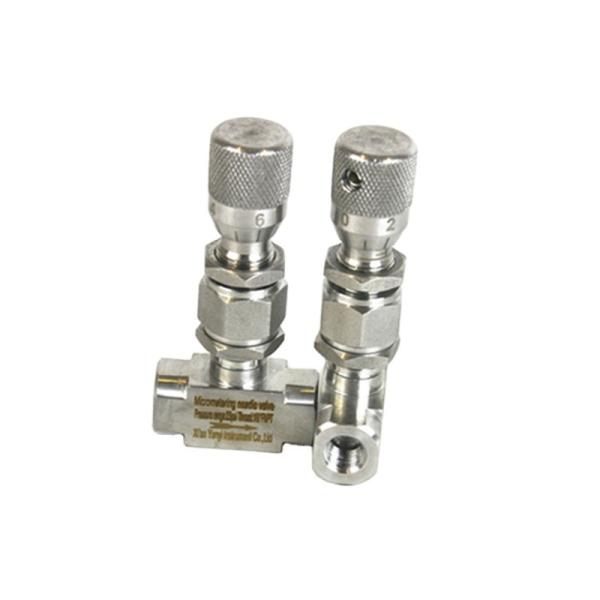

Description 316L SS mini high pressure air gas needle valve

Micro metering needle valve is one kind of needle valve, with nice appearance, reasonably structured,

long life features, mainly suitable for corrosion resistance and corrosive chemical medium with high

temperature and high pressure, it can achieve the purpose of control flow through precision adjustment.

Specification 316L SS mini high pressure air gas needle valve

Material 304 stainless steel, 316 stainless steel
Type Needle type
Drive mode Manual
Flow direction single
Nominal diameter DW2—DW10
Nominal pressure 1.0MPa—16.0MPa
Max working pressure 6000PSI
Working temperature -23 °C to 204°C (-10°F to 400°F)
CV value 0.004 or others
Connection type Ferrule-type, thread type or weld type.
Medium gas or liquid
Weight About 200g

Features 316L SS mini high pressure air gas needle valve

1. needle valve micro metering valve
2. Instrument needle valve
2. working pressures up to 6000 psig (318 bar)

Applications 316L mini high pressure gas air needle valve

Mainly suitable for corrosion resistance and corrosive chemical medium with high temperature and

high pressure, it can achieve the purpose of control flow through precision adjustment.

Selection Guide 316L mini high pressure gas air needle valve

1. What's the pressure range do you need?

2. What's the your medium temperature? normal temperature or high temperature?

3. What's the thread connection type do you need?
