4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter
4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter
4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter
4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter
4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter
4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter
4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter
4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter
Specifications
Brand Name :
Yunyi
Model Number :
HT20
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
18-30usd
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500/month
Delivery Time :
5-7 days
Packaging Details :
carton
Item :
Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter
Type :
split plug in
Display :
LCD with backlight
Application :
clean room air or gas
Temperature :
-40~125C
humidity :
0-100% RH (relative humidity)
Power supply :
12~24VDC
Output :
RS485, 4-20mA, 0-10vdc
Work temp :
-20~85C
cable :
φ 5 shielded cable
Size :
100x70mm
Description

Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter

Description of Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter

Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter is applicable to the measurement of temperature and humidity in pipes or boxes. Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter is the
responsibility of the operator to verify that the Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter is suitable for the operating conditions of the application.

Parameter of Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter

Measuring medium: gas (compatible with contact material)
Overall material: ABS engineering plastic for main shell
Filter (contact) polyethylene (density 50 μ m)
Cable locking head nylon (locking wire diameter 5-8mm)
Display LCD with backlight
Installation flange (contact) ABS engineering plastics
Insert bar (contact) ABS engineering plastics
Seal (contact) NBR / silicone
Connecting wire (contact) 4 * 0.3 polyurethane cable(diameter φ 5)
Temperature range: - 40 ～ 0 ～ 125 ℃ (Note 1)
Humidity range: 0-100% RH (relative humidity)
Supply voltage: 24VDC (current / voltage output)12-24vdc (RS485 output)
Output signal: RS485, 4-20mA, 0-10vdc

Item Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter
Type Split type Plug in type
Cable φ 5 shielded cable
Temperature Range -40~125C
Humidity range 0-100%RH
Accuracy 1.0% FS
Output signal 4-20mA, 0-10V, RS485 modbus
Supply voltage standard 24VDC, 12VDC~36VDC
Display LCD or not display
Material ABS plastic
Protection IP65
Application Clean and dry air
Operating temperature -20-80C
Safety overload 150%
Ultimate Overload 200%
Temperature drift 0.02% FS / ° C
Long-term stability 0.2% FS / Year

Feature Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter

A) long term stability and full range temperature compensation
B) wide operating temperature range (- 40 ℃ ~ 85 ℃)
C) multi parameter selection of temperature range
D) easy to install, wall mounted and rail mounted
E) high level of dust protection (IP65)
F) LCD display (optional)
G) self replaceable probe

Application of Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter

Suitable for indoor environment
Temperature and humidity controlof ventilation pipe
Heating and air conditioning system
Constant temperature and humidity controller / box, etc

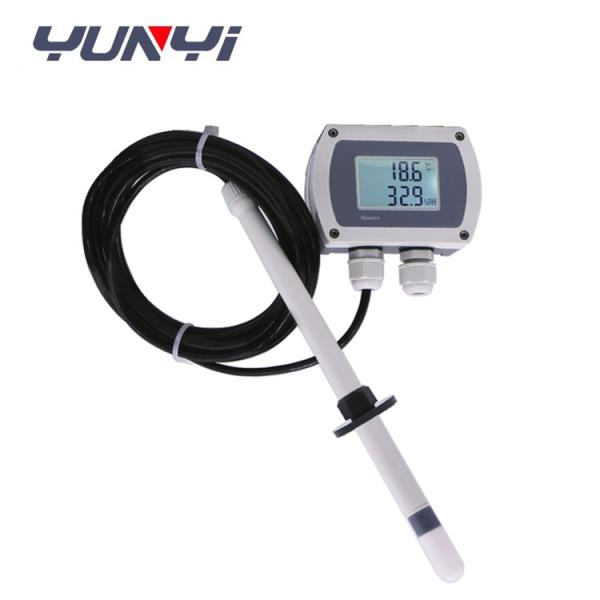

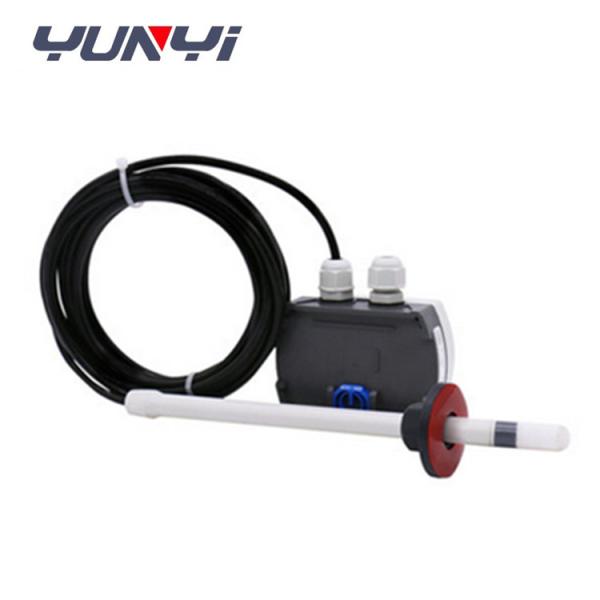

Detailed picture of Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter

4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter4-20mA Air Pressure Transducer Sensor Temperature And Humidity Transmitter

Company of Air Pressure Transducer Senosr 4-20mA Output Temperature And Humidity Transmitter
