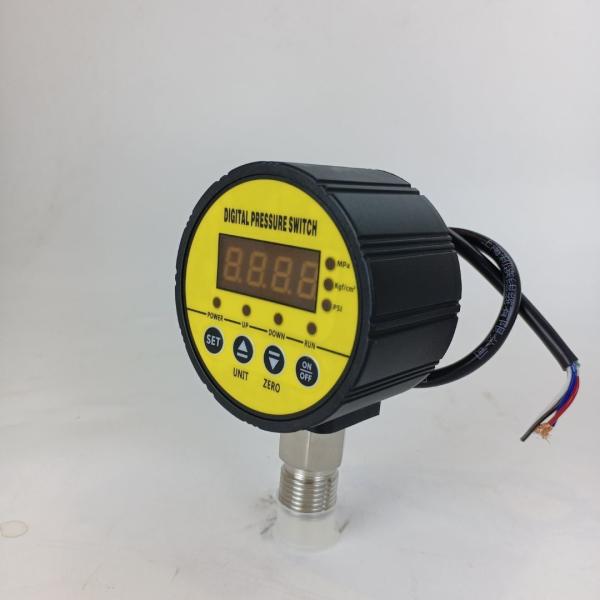

Well Inline Water Pump Digital Pressure Gauge Switch Controller 12bar
Well Inline Water Pump Digital Pressure Gauge Switch Controller 12bar
Well Inline Water Pump Digital Pressure Gauge Switch Controller 12bar
Well Inline Water Pump Digital Pressure Gauge Switch Controller 12bar
Well Inline Water Pump Digital Pressure Gauge Switch Controller 12bar
Well Inline Water Pump Digital Pressure Gauge Switch Controller 12bar
Well Inline Water Pump Digital Pressure Gauge Switch Controller 12bar
Well Inline Water Pump Digital Pressure Gauge Switch Controller 12bar
Specifications
Brand Name :
Yunyi
Model Number :
YK
Certification :
/
Place of Origin :
China
MOQ :
1
Price :
$28
Payment Terms :
T/T, Western Union
Supply Ability :
500 Piece/Pieces per Month
Delivery Time :
10 works day
Packaging Details :
standard
Max. Voltage :
240V
Max. Working Pressure :
100MPA
Stability :
≤ 0.2% / year
Storage temperature :
-40 ℃ ~ 85 ℃
Description

Description Well Inline Water Pump Pressure Control Switch Controller 12bar

It is an intelligent digital pressure switch setting pressure measurement, pressure display, control in one professional unit. It has followed features: easy operation, good shock resistance, high precision, long-term stability.

It can realize the control function: low pressure to stop, the high pressure to start or the high pressure to stop, the low pressure to start. The control pressure can be set up in the whole range. It also has the followed functions: delay control, reverse control, three pressure units to change, one key to error clearing, leakage pressure protection, password protection, pressure detection automatically.

It is widely used in building water supply, hydraulic pressure control, supporting equipment of automated machine.

Detailed Images Well Inline Water Pump Pressure Control Switch Controller 12bar
Well Inline Water Pump Digital Pressure Gauge Switch Controller 12barWell Inline Water Pump Digital Pressure Gauge Switch Controller 12bar

Specification Well Inline Water Pump Pressure Control Switch Controller 12bar

Pressure Range 0-0.2...0.6...1...1.6...2.5...5...10...25...40...60Mpa
Overload Pressure 150%
Acc. 0.5%FS
Supply 24VDC, 220VAC, 380VAC (Selectable)
Alarm Point Set Any point can be set within the range.
Output Signal Relay signal
Load Capacity 380V 3A 220V 5A 24V 5A
Sampling Frequency 5 Times/sec
Operation Temperature -20℃~80℃
Measurement Medium Liquid, gas compatible with 316L stainless steel.
Connection Protection Reverse protection, short-circuit protection
Connector M20*1.5, G1/2, G1/4 (selectable)
Outlet Line Power: red blue Output: black white


Features Well Inline Water Pump Pressure Control Switch Controller 12bar

Forward and reverse action switch
One-key reset without pressure
Small range shield
Error linear correction
Multi-unit switching
Anti-water shortage pump
Control delay
Scanning speed adjustment
Large-capacity relay
Reverse polarity protection
