19mm probe 4-20mA stainless steel hydrostatic piezometer submersible water level sensor transmitter

Description of 19mm probe 4-20mA stainless steel hydrostatic piezometer submersible water level sensor transmitter

19mm probe 4-20mA stainless steel hydrostatic piezometer submersible water level sensor transmitter is based on the principle that the static pressure of the measured liquid is proportional to the height of the liquid, and uses the piezoresistive effect of diffused silicon or ceramic sensing elements to convert the static pressure into an electrical signal. After temperature compensation and linear correction, it is converted into 4-20mADC standard current signal output. The sensor part of the submerged static pressure liquid level transmitter can be directly put into the liquid, and the transmitter part can be fixed by flange or bracket, which is very convenient to install and use.

Dimension of 19mm probe 4-20mA stainless steel hydrostatic piezometer submersible water level sensor transmitter

Specification of 19mm probe 4-20mA stainless steel hydrostatic piezometer submersible water level sensor transmitter

Feature of 19mm probe 4-20mA stainless steel hydrostatic piezometer submersible water level sensor transmitter

·High precision,corrosive and other media pressure measurement;
·Separate construction; full sealed stainless steel construction for submersible sensor, easy for installation,wiring and calibration;
·Lightning Protection,Water-proof and oil-proof cable.

Application of 19mm probe 4-20mA stainless steel hydrostatic piezometer submersible water level sensor transmitter

★ Industrial field level measurement and control
★ Urban water supply and sewage treatment
★ Hydrological monitoring and control
★ Big river dam and water conservancy construction
★ Navigation and Ship System

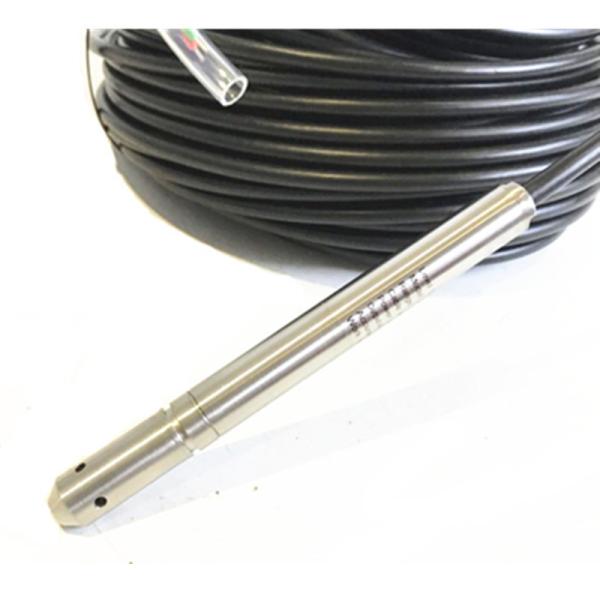

Detaild picture of 19mm probe 4-20mA stainless steel hydrostatic piezometer submersible water level sensor transmitter
