Specifications
Brand Name :
Yunyi
Model Number :
UC800L2
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
350~500USD/PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs per week
Delivery Time :
10 work days
Packaging Details :
Carton Packaging
Process Thread :
1/4NPT, 1/2NPT, M20*1.5
Output :
4-20mA
Pressure Range :
0-10MPa
Material :
SS304
Power Supply :
12~36VDC
Application :
Oil, Air, Gas, Water
Electrical Connection :
M20*1.5
Warranty :
12 Months
Description

Double Flange Differential Pressure Transmitter 4-20mA RS-485 Capacitive Pressure Transducer Sensor

Description Single Flange Differential Pressure Transmitter

UC800 Project Special Pressure Transmitter is the result of a combination of self-developed anti-jamming, high stability digital circuits and the introduction of foreign Single crystal resonant silicon sensor technology. Its performance much better than our domestic metal capacitive sensor technology transmitter, and main show in the field zero stability and long-term operation stability, and rapid response.

Specification Single Flange Differential Pressure Transmitter

Range digital smart differential pressure transmitter

Range code Range Measuring range
Min. Max.
4 0.374KPa 37.4KPa -37.4~37.4KPa
5 1.868KPa 186.8KPa -186.8~186.8KPa
6 6.9KPa 690KPa -690~690KPa
7 20.68KPa 2068KPa -2068~2068KPa

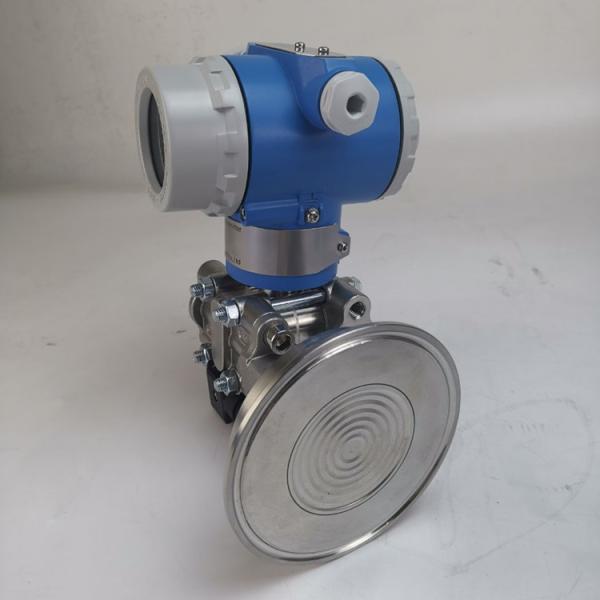

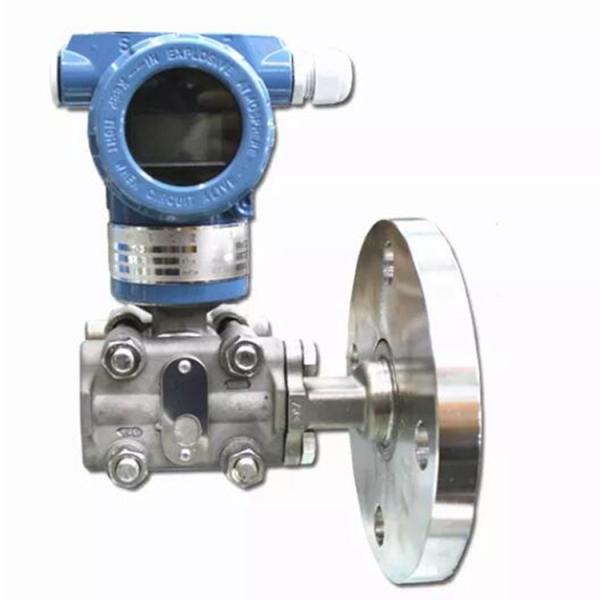

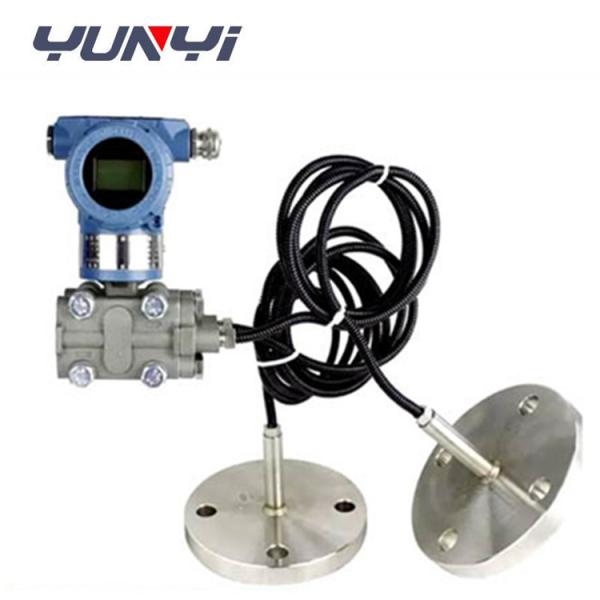

Detailed Picture Single Flange Differential Pressure Transmitter

Applications Single Flange Differential Pressure Transmitter

Compatible with 316LSS,noncorrosive liquids.
Shipping and aviation industry.
Hydraulic pressure and pneumatic control system
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.


Features Single Flange Differential Pressure Transmitter

Single crystal resonant silicon sensor technology
Super performance, use to measure pressure, differential pressure and temperature..
Accuracy: ±0.075%~±0.1%F.S/±0.2%F.S
Stability: ≤0.2%
Standard 4~20mA,RS-485 communication interface
Support upgrade of basic scene control technique

Little temperature effect

Little static effect

Overload can reach 2 times
