150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
Specifications
Brand Name :
Yiyun
Model Number :
YD31
Certification :
CE/3C/ISO
Place of Origin :
China
MOQ :
5 pieces
Price :
15-18USD/Unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20000unit/week
Delivery Time :
5-8 days
Packaging Details :
Carton
Description
Measure Range
-100kPa~0.....10kPa...100MPa
Pressure Type
gauge (G), absolute (A), sealed gauge (S)
Overpressure
150%FS
Accuracy
0.2%FS, 0.5%FS
Output signal
4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
Supply
12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
Temp.coefficient of zero
±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Temp.coefficient of span
±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Compensated temperature range
-10~+70°C
Operating temperature range
-40~+125°C
Storage temperature range
-40~+125°C
Insulating resistance
≥100MΩ@100Vdc
Load resistance
R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
Electrical interface
DIN43650, option 1.5m cable connetion
Pressure interface
G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
Material of pressure membrane
316L stainless steel
Material of housing
1Cr18Ni9Ti stainless steel
Response time(10%~90%)
≤10ms
Shock/impact
10gRMS,(20~2000)Hz/100g,11ms

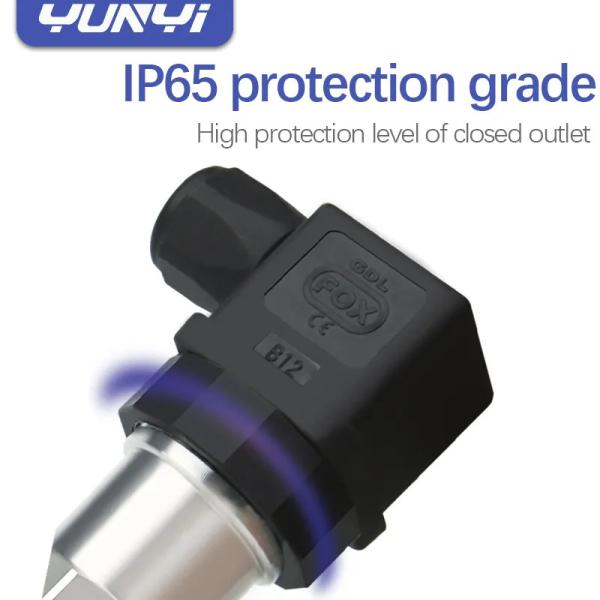

Protection
IP65

150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor

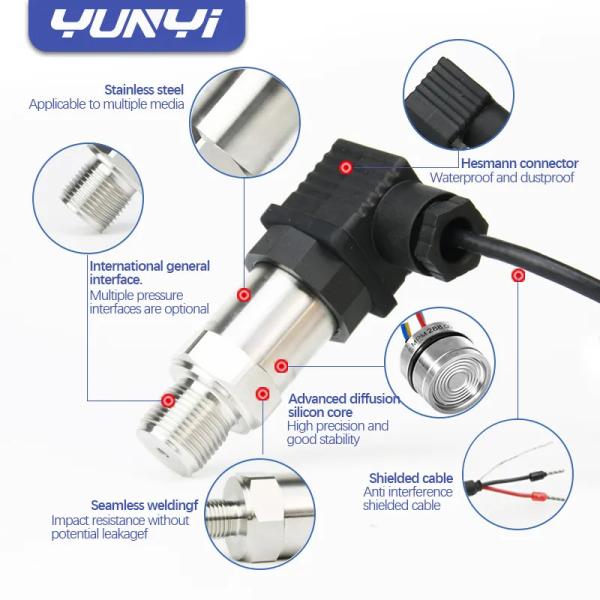

Absolute gauge smart pressure transmitter is standard and most popular transmitter applied in air and liquid pressure measuring. A
high sensitivity silicon pressure chip is employed in the sensor.

150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor

Through the high reliability of amplifying circuit and precise temperature compensation, and perfect assembly process to ensure
the quality and performance of the product.This pressure transmitter is designed for industry application with perfect long term
stability.

Specificaiton

Measure Range
-100kPa~0.....10kPa...100MPa
Pressure Type
gauge (G), absolute (A), sealed gauge (S)
Overpressure
150%FS
Accuracy
0.2%FS, 0.5%FS
Output signal
4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
Supply
12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
Temp.coefficient of zero
±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Temp.coefficient of span
±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Compensated temperature range
-10~+70°C
Operating temperature range
-40~+125°C
Storage temperature range
-40~+125°C
Insulating resistance
≥100MΩ@100Vdc
Load resistance
R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
Electrical interface
DIN43650, option 1.5m cable connetion
Pressure interface
G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
Material of pressure membrane
316L stainless steel
Material of housing
1Cr18Ni9Ti stainless steel
Response time(10%~90%)
≤10ms
Shock/impact
10gRMS,(20~2000)Hz/100g,11ms
Protection
IP65

150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor

150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor

Model YD31
Pressure Range
(0-X)KPa or MPa: -100kPa~0.....10kPa...100MPa
Pressure type
G Gauge D Differential A Absolute
Output signal
E 4-20mA F 0-5Vdc J 1-5Vdc
K 0-10Vdc V 1-10Vdc
Power Supply
A1 10~36VDC

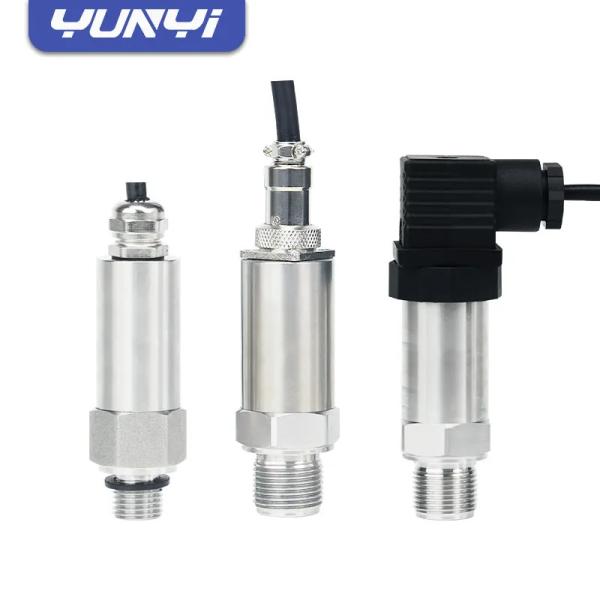

Electrical Interface
B1 Hirschman connector
B2 Directly cable connection
B3 Pin aviation connector
Display
D1 No display
D2 LED display
Pressure Interface
C1 1/2NPTM C2 1/4NPTM
C3 M20x1.5M C4 G1/2M
C5 G1/4M Cx other customized

150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor

150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor

150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor

150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor

150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor
