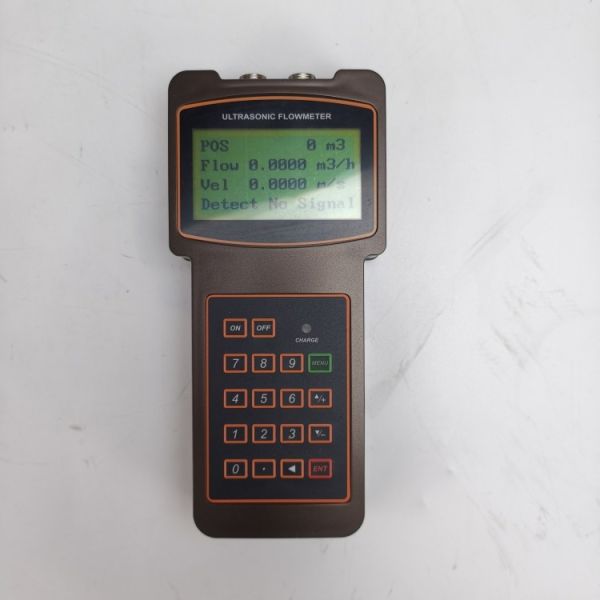

1.5W Handheld Water Flow Meter ABS Plastic Housing
1.5W Handheld Water Flow Meter ABS Plastic Housing
1.5W Handheld Water Flow Meter ABS Plastic Housing
1.5W Handheld Water Flow Meter ABS Plastic Housing
1.5W Handheld Water Flow Meter ABS Plastic Housing
1.5W Handheld Water Flow Meter ABS Plastic Housing
1.5W Handheld Water Flow Meter ABS Plastic Housing
1.5W Handheld Water Flow Meter ABS Plastic Housing
Specifications
Brand Name :
Yunyi
Model Number :
TUF-2000H
Certification :
/
Place of Origin :
China
MOQ :
1
Price :
$400~$800
Payment Terms :
T/T, Western Union
Supply Ability :
10/per week
Delivery Time :
10
Packaging Details :
standard
Principle :
Transit- time ultrasonic flowmeter
Pipe Material :
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
Temperature :
- 30~160℃
Turbidity :
No more than 10000ppm and less bubble
Description

Description Handheld Ultrasonic Water Flow Meter Plastic China Price


This flowmeter can be virtually applied to a wide range of measurement. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent. etc


Detailed Images Handheld Ultrasonic Water Flow Meter Plastic China Price

1.5W Handheld Water Flow Meter ABS Plastic Housing

Specification Handheld Ultrasonic Water Flow Meter Plastic China Price

Items Performance & Parameter

Convertor

 Principle Transit- time ultrasonic flowmeter
Accuracy ±1%

Display

4×16 character LCD with backlight, support the language of Chinese, English and Italy
Data Interface

Insulate Rs232 serial interface, upgrade the flowmeter software by computer

Pipe Installation Condition

 Pipe Material Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed

Pipe

Diameter

 25~6000mm
Straight Pipe Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump

Measuring Medium

Type of Liquid

Single liquid can transmit sound wave,

such as Water (hot water, chilled water, city water, sea water, waste water, etc.);

Sewage with small particle content; Oil ( crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals ( alcohol, etc.); Plant effluent; Beverage;

Ultra- pure liquids, etc.
Temperature - 30~160℃
Turbidity No more than 10000ppm and less bubble
Flowrate 0~±10m/ s
Working Environment Temperature Convertor:- 20~60℃；Flow Transducer:- 30~160℃
Humidity Convertor: 85% RH；Flow Transducer: Ip67
Power Supply

3 AAA built-in Ni-MH batteries 1.2V(for over 12 hours of operation). 90V-260V AC adapter
Power Consumption 1. 5W
Case Material ABS
Dimension 200*93*32MM(Convertor)

Features Handheld Ultrasonic Water Flow Meter Plastic China Price

Better than 1% accuracy.
0.2% of repeatability.
Positive / negative / net flow totaliser
4 line LCD display.
Operate with clamp-on transducers.
RS-232/OCT output
Ni-MH Battery life for up to 12 hours continuous operation.

Applications Handheld Ultrasonic Water Flow Meter Plastic China Price

Water supply and drainage Heating

Construction of Energy-saving Metallurgy

1.5W Handheld Water Flow Meter ABS Plastic Housing
