Hart Communicate 4 - 20mA 3051 Type Differential Pressure Transmitter Popular In
Hart Communicate 4 - 20mA 3051 Type Differential Pressure Transmitter Popular In
Hart Communicate 4 - 20mA 3051 Type Differential Pressure Transmitter Popular In
Hart Communicate 4 - 20mA 3051 Type Differential Pressure Transmitter Popular In
Specifications
Brand Name :
shelok
Model Number :
YD3051
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
1 - 99 sets $400.00 100 - 199 sets $300.00 >= 200 sets $250.00
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
4000/month
Delivery Time :
5-7 days
Packaging Details :
285mm*230mm*225mm
Description

Xi'an shelok instrument factory is a professional differential pressure transmitter , pressure sensor for more than 15 years .

Below is one of most popular products for oversea and domestic market ,

we develop comprehensive solutions based on our high-quality measurement technology components, with the solutions ultimately being integrated in their business processes.

Hart Communicate 4 - 20mA 3051 Type Differential Pressure Transmitter Popular In

Hart Communicate 4 - 20mA 3051 Type Differential Pressure Transmitter Popular In

Hart Communicate 4 - 20mA 3051 Type Differential Pressure Transmitter Popular In




UC800 Project Special Differential Industrial Pressure Transmitter

Description of Differential Industrial Pressure Transmitter

Special Pressure Transmitter is the result of a combination of self-developed anti-jamming, high stability digital circuits and the introduction of foreign Single crystal resonant silicon sensor technology. Its performance much better than our domestic metal capacitive sensor technology transmitter, and main show in the field zero stability and long-term operation stability, and rapid response.

.

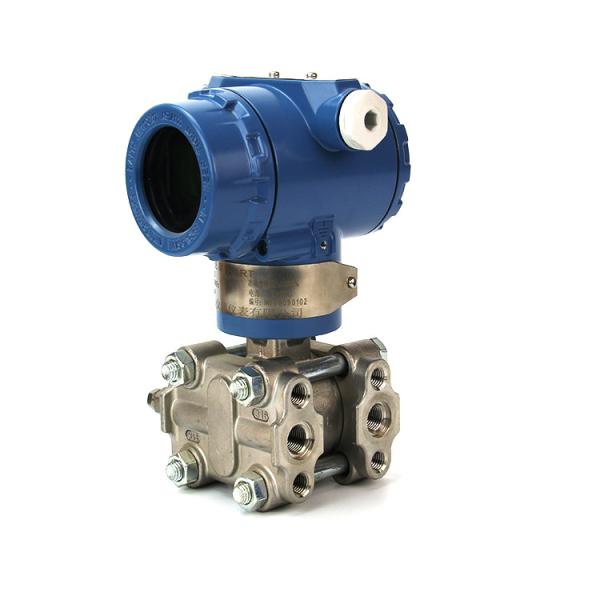

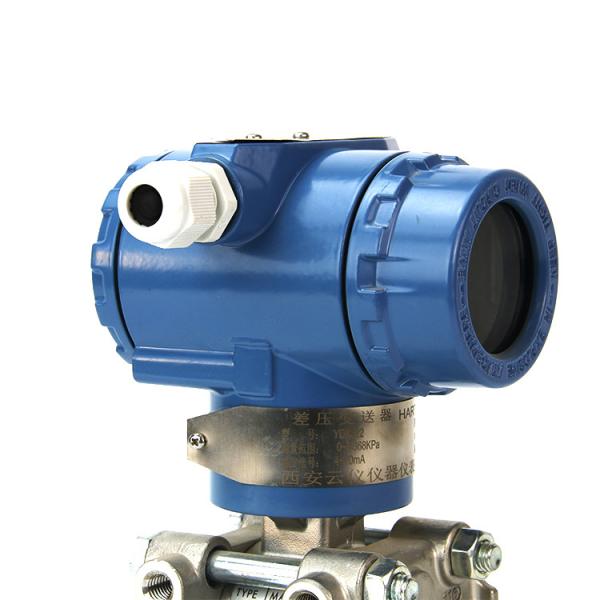

Detailed Images of Differential Industrial Pressure Transmitter
Hart Communicate 4 - 20mA 3051 Type Differential Pressure Transmitter Popular InHart Communicate 4 - 20mA 3051 Type Differential Pressure Transmitter Popular In

Specification of Differential Industrial Pressure Transmitter

Differential Industrial Pressure Transmitter
Measuring Rang Differential Pressure: 0.12~7.5Kpa,0.21-21Kpa
Gauge Pressure: 0~40Mpa
Absolute Pressure 0.12~21Mpa
Turn Down Ration 40:1
Application Different Pressure
Accuracy ±0.1, 0.3, 0.5% of Span
Process Fluid Liquid, Gas, Vapor
Temperature Drift Zero Drift: 0.5%FS/50℃
Span Drift:0.7%FS/50℃
Stability ±0.1%/year
Working Temperature -40℃ ~ 105℃
Power Supply 9~46V DC
Output 4~20mA two-wire system
Max Pressure 40Mpa
Respond Time Less Than 5 Seconds
Humidity Limits 0 to 100% Relative Humidity
Turn On Time 2 Seconds With Minimum Damping
Display LCD LED
Electrical Connections 1/4" Npt (M20 Conduit Threads)
Temperature Effect ±0.18% of Span Per 200C
Process Connection 1/4-18NPT
Diaphragms SS316L / Hastelloy B / Hastelloy C / Monel / Tantalum
Wetted O-Rings Buna N/Viton/PTFE
Bolts & Nuts Carbon Steel / SS316
Mounting Bracket Carbon Steel / SS304 or SS316
Coverter Housing Low Copper Cast Aluminium Alloy With Polyurethane
Fill Fluid Silicone
Casing Protection IP67
Process Connection Flange, Direct, Side Mounted, Diaphragm, Insert Type
Weight Approximately 4.5KG


Features of Differential Industrial Pressure Transmitter

  • Single crystal resonant silicon sensor technology
  • Super performance, use to measure pressure, differential pressure and temperature..
  • Stability: ≤0.2%
  • Accuracy: ±0.05%~±0.1%F.S/±0.2%F.S
  • Overload can reach 2 times
  • Support upgrade of basic scene control technique
  • Standard 4～20mA,RS-485 communication interface
  • Little static effect

Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:Can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
