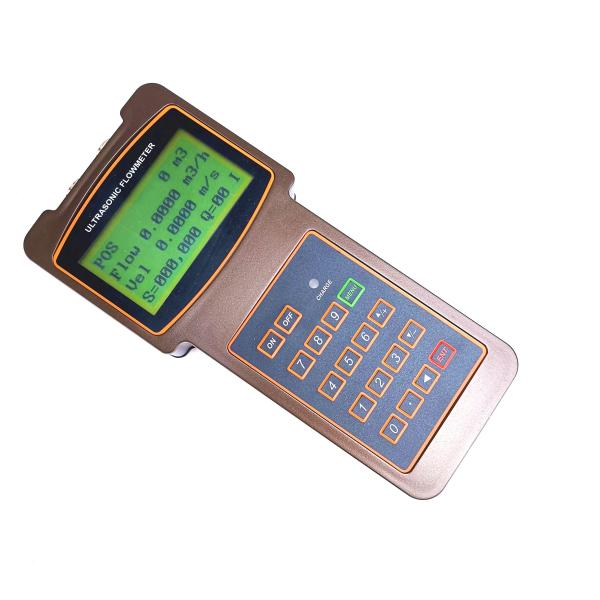

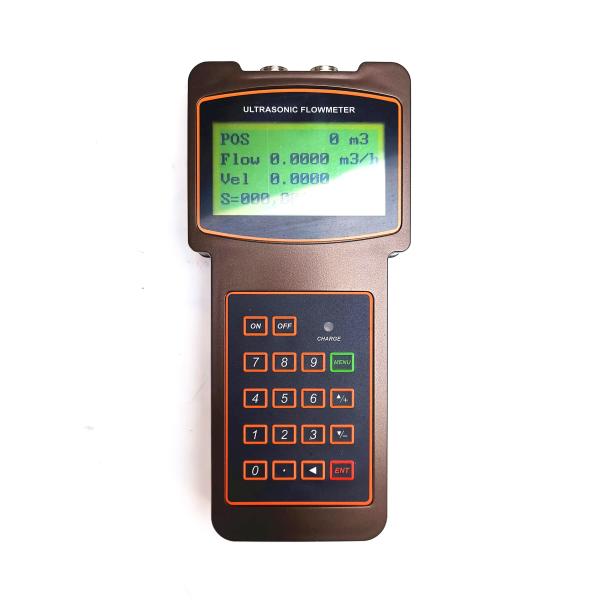

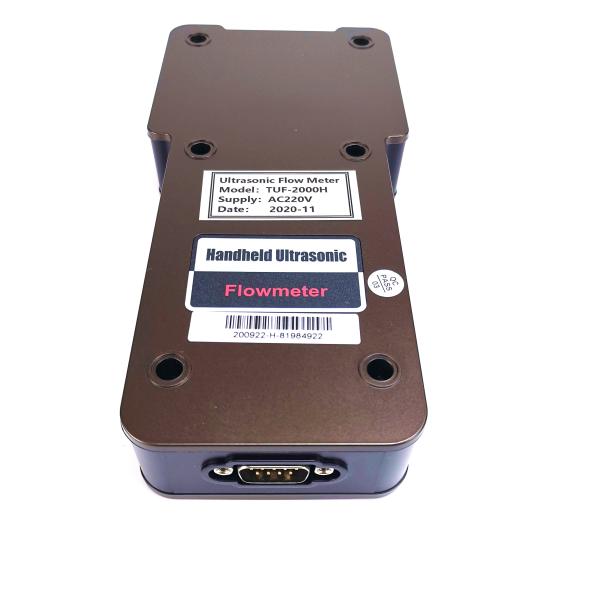

TUF-2000H 1.5 Inch 1%FS Portable Ultrasonic Flow Meter
TUF-2000H 1.5 Inch 1%FS Portable Ultrasonic Flow Meter
TUF-2000H 1.5 Inch 1%FS Portable Ultrasonic Flow Meter
TUF-2000H 1.5 Inch 1%FS Portable Ultrasonic Flow Meter
TUF-2000H 1.5 Inch 1%FS Portable Ultrasonic Flow Meter
TUF-2000H 1.5 Inch 1%FS Portable Ultrasonic Flow Meter
TUF-2000H 1.5 Inch 1%FS Portable Ultrasonic Flow Meter
TUF-2000H 1.5 Inch 1%FS Portable Ultrasonic Flow Meter
Specifications
Brand Name :
Yunyi
Model Number :
TUF-2000H
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
1pcs per week
Delivery Time :
5-8 work days
Packaging Details :
Plywood
Name :
TUF-2000H ultrasonic portable Digital Water Flow Meter 1.5 inch
Pipe size :
DN15--6000
Accuracy :
±1%
Temperature unit :
-30-160℃
Flowrate :
0~±7m/s
Display :
2X20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish
Power Consumption :
1. 5W
Power supply :
Dc8~36VorAc85~264V (optional)
Dimension :
132*150*85 mm(convertor)
Description

TUF-2000H ultrasonic portable Digital Water Flow Meter 1.5 inch

Description TUF-2000H ultrasonic portable Digital Water Flow Meter 1.5 inch

This flowmeter can be virtually applied to a wide range of measurement. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent. etc

Parameter TUF-2000H ultrasonic portable Digital Water Flow Meter 1.5 inch

Items Performance & Parameter

Convertor

 Principle Transit- time ultrasonic flowmeter
Accuracy ±1%

Display

4×16 character LCD with backlight, support the language of Chinese, English and Italy
Data Interface

Insulate Rs232 serial interface, upgrade the flowmeter software by computer

Pipe Installation Condition

 Pipe Material Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed

Pipe

Diameter

 25~6000mm
Straight Pipe Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump

Measuring Medium

Type of Liquid

Single liquid can transmit sound wave,

such as Water (hot water, chilled water, city water, sea water, waste water, etc.);

Sewage with small particle content; Oil ( crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals ( alcohol, etc.); Plant effluent; Beverage;

Ultra- pure liquids, etc.
Temperature - 30~160℃
Turbidity No more than 10000ppm and less bubble
Flowrate 0~±10m/ s
Working Environment Temperature Convertor:- 20~60℃；Flow Transducer:- 30~160℃
Humidity Convertor: 85% RH；Flow Transducer: Ip67
Power Supply

3 AAA built-in Ni-MH batteries 1.2V(for over 12 hours of operation). 90V-260V AC adapter
Power Consumption 1. 5W
Case Material ABS
Dimension 200*93*32MM(Convertor)

Types Spec. Model Measurement Range Temperature Dimension

Clamp on

 Small Size TS- 2 DN15~ DN100 - 30~ 90℃ 45×25×32mm
Medium Size TM- 1 DN50~ DN700 - 30~ 90℃ 64×39×44mm
Large Size TL- 1 DN300~ DN6000 - 30~ 90℃ 97×54×53mm

High Temperature

Clamp on

 Small Size TS- 2- HT DN15~ DN100 - 30~ 160℃ 45×25×32mm
Medium Size TM- 1- HT DN50~ DN700 - 30~ 160℃ 64×39×44mm
Large Size TL- 1- HT DN300~ DN6000 - 30~ 160℃ 97×54×53mm

Mounting Bracket Clamp on

 Small Size HS DN15~ DN100 - 30~ 90℃ 318×59×85mm
Medium Size HM DN50~ DN300 - 30~ 90℃ 568×59×85mm
Extended EB- 1 DN300~ DN700 - 30~ 90℃ 188×59×49mm

High Temperature Mounting

Bracket Clamp on

 Small Size HS- HT DN15~ DN100 - 30~ 160℃ 318×59×110mm
Medium Size HM- HT DN50~ DN300 - 30~ 160℃ 568×59×110mm
Extended EB- 1- HT DN300~ DN700 - 30~ 160℃ 188×59×49mm
