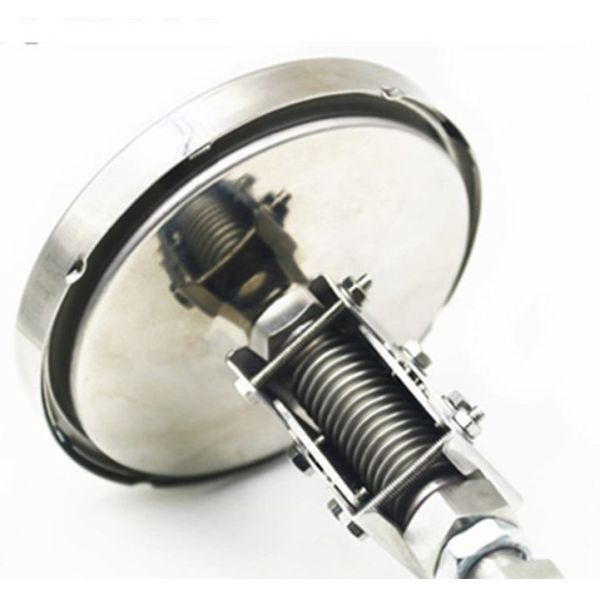

Specification Smart thermometers industrial temperature gauge prices

1. The thermoelectric potential of the bimetal thermometer is only related to the thermoelectric properties of the hot electrode material and the temperature difference between the two ends.
2. Using the same homogeneous conductor or semiconductor to form a circuit will not generate thermoelectric potential.
3. The temperature of the two junctions of the thermocouple is T, T0. If T=T0, the thermoelectric potential of the thermocouple is zero. The law of intermediate temperatures provided the basis for the development of thermocouple scales.
4. For many years, scientists have tried to study whether the relationship between the temperature of the hot end (measuring end) of the thermocouple and the thermoelectric potential generated by the thermocouple loop can be expressed by a functional relationship or even a piecewise function, but failed. .
5. If the two conductors A and B are formed with the third conductor respectively, the thermoelectric has a wide temperature measurement range, and the physical and chemical properties of long-term use are stable.
6. High conductivity and small temperature coefficient of resistance; ※The thermoelectric potential of the configuration is highly sensitive, and the thermoelectric potential and temperature are linear, easy to reproduce, simple process and low price.

7. But the compensation bridge of nickel-chromium-nickel-silicon is wrongly used, and the balance point of the compensation bridge is 0º C. When the temperature of the cold end is 30º C, and the thermometer indicates a temperature of 900º C, what is the actual temperature of the heating furnace? Use the standard electrode law to determine the components that change with temperature.
Generally, bimetal thermometers are used at low temperatures, and thermocouples are used at high temperatures. If the temperature exceeds 500 degrees, the resistance of the bimetal thermometer will be very large, which may affect the measurement results, and even the measurement results cannot be obtained.

Application Smart thermometers industrial temperature gauge prices

Features Smart thermometers industrial temperature gauge prices

●Product implementation standard: JB/T8803-1998 GB3836-83;
●Nominal diameter of dial: 100;
●Accuracy grade: 1.0, 1.5;
Thermal response time: ≤40S;
●Protection level: IP55;
Normal working atmospheric conditions: temperature -25 ~ +55 ℃, relative humidity ≤ 85%;
●Set point error: The set point error should not exceed 1.5 times of the basic error limit;
●Switching difference: The switching difference should not exceed 1.5 times of the basic error limit;
●Switching repeatability: The switching repeatability range is not more than 1/2 of the basic error limit.

Selection Guide Smart thermometers industrial temperature gauge prices
