4mA Differential Pressure Transmitter Sensor For Water Gas Oil
4mA Differential Pressure Transmitter Sensor For Water Gas Oil
4mA Differential Pressure Transmitter Sensor For Water Gas Oil
4mA Differential Pressure Transmitter Sensor For Water Gas Oil
4mA Differential Pressure Transmitter Sensor For Water Gas Oil
4mA Differential Pressure Transmitter Sensor For Water Gas Oil
4mA Differential Pressure Transmitter Sensor For Water Gas Oil
4mA Differential Pressure Transmitter Sensor For Water Gas Oil
4mA Differential Pressure Transmitter Sensor For Water Gas Oil
4mA Differential Pressure Transmitter Sensor For Water Gas Oil
4mA Differential Pressure Transmitter Sensor For Water Gas Oil
4mA Differential Pressure Transmitter Sensor For Water Gas Oil
Specifications
Brand Name :
Yunyi
Model Number :
YD39
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
120USD/PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs per week
Delivery Time :
10 work days
Packaging Details :
Carton Packaging
Pressure range :
0~20Kpa…..35Kpa...~2MPa
Medium :
Liquids or gases compatible with 316LSS
Proof pressure :
1.5X rated range or 7MPa(Which ever is less)
Accuracy :
±0.25%(Typical) ±0.5%(Max.)
Static pressure :
5X rated range or 7MPa which ever is less
Power supply :
15~36VDC
Description

Pressure Transducer 4-20mA Pressure Transmitter Sensor For Water Gas Oil

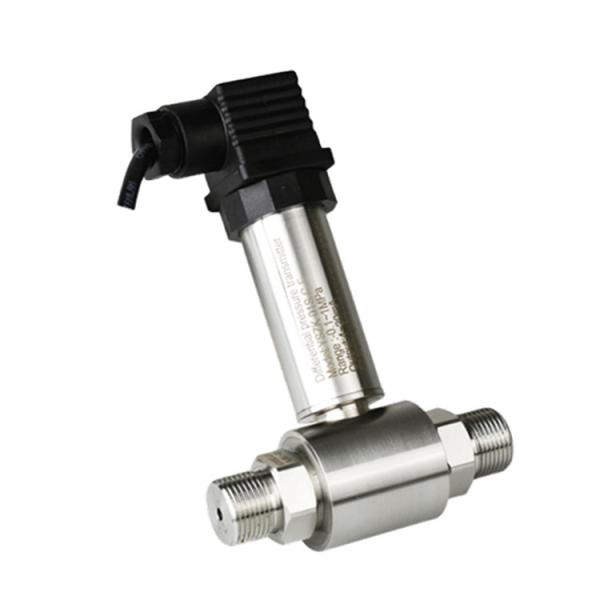

Description Differential Pressure Transmitter

China 4-20mA Differetial pressure transmitter is consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Also can build high-performancemicroprocessor(MCU)which can correct nonlinearity and compensate temperature drift. Achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication.

Detailed Images Differential Pressure Transmitter

Specification Differential Pressure Transmitter

Range: 0~20Kpa…..35Kpa...~2MPa
Medium : Liquids or gases compatible with 316LSS
Proof pressure: 1.5X rated range or 7MPa(Which ever is less)
Accuracy : ±0.25%(Typical) ±0.5%(Max.)
Operating temperature range : -20℃~80℃
Storage temperature range: -40℃~120℃
Power supply: 15~36VDC
Output signal : 4~20mA 0~10/20mA 0/1~5/10VDC
Pressure port : G1/4 Female 6 air cock or customize
Diaphragm material : 316L

Static pressure: 5X rated range or 7MPa which ever is less

Long term stability: ±0.5%F.S/Y(≤200KPa) ±0.2%F.S/Y(≤2000KPa)

Zero temperature Drift: ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)

Span temperature Drift: ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)

Housing material :1Cr18Ni9Ti Stainless steel , aluminium casting or plastic

O ring :Fluororubber

Cable :Polyethylene ventilate cable

Insulation resistance: 100MΩ,100VDC

Protection: IP65

Features Differential Pressure Transmitter

Compatible with 316LSS,noncorrosive gases & liquids

Wind pressure & velocity of flow in industry process

Measuring pressure of pipeline &firepot

Petroleum industry, chemical industry

Meteorological monitoring
