Wall mount Ultrasonic Flow Meter Clamp On Flow Meter DN15-DN6000 Ultrasonic Liquid FlowMeter

Description of Wall mount Ultrasonic Flow Meter Clamp On Flow Meter DN15-DN6000 Ultrasonic Liquid FlowMeter

Wall mount Ultrasonic Flow Meter Clamp On Flow Meter DN15-DN6000 Ultrasonic Liquid FlowMeter utilizes two transducers that function as both ultrasonic transmitters and receivers. The transducers are clamped on the outside of a closed pipe at a specific distance from each other. The transducers can be mounted in V-method where the sound transverses the pipe twice, or W-method where the sound transverses the pipe four times, or in Z-method where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once. This selection of the mounting method depends on pipe and liquid characteristics. The flow meter operates by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers and measuring the transit time that it takes for sound to travel between the two transducers. The difference in the transit time measured is directly and exactly related to the velocity of the liquid in the pipe.

Specification of Wall mount Ultrasonic Flow Meter Clamp On Flow Meter DN15-DN6000 Ultrasonic Liquid FlowMeter

Feature of Wall mount Ultrasonic Flow Meter Clamp On Flow Meter DN15-DN6000 Ultrasonic Liquid FlowMeter

◆ Linearity: 0.5%, Repeatability: 0.2%, Accuracy:±1%
◆ Easy to operate.
◆ Several type transducers for selection, measuring pipe size is from DN15mm to DN6000mm
◆ Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability.
◆ Powerful Recording Function, record the totalizer data of the last 64 days/64 monthes/5 years.

Application of Wall mount Ultrasonic Flow Meter Clamp On Flow Meter DN15-DN6000 Ultrasonic Liquid FlowMeter

★ Water (hot water, chilled water, city water, sea water, waste water, etc.);
★ Sewage with small particle content;
★ Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.);
★ Chemicals (alcohol, acids, etc.);
★ Plant effluent;
★ Beverage, liquid food;
★ Ultra-pure liquids;
★ Solvents and other liquids

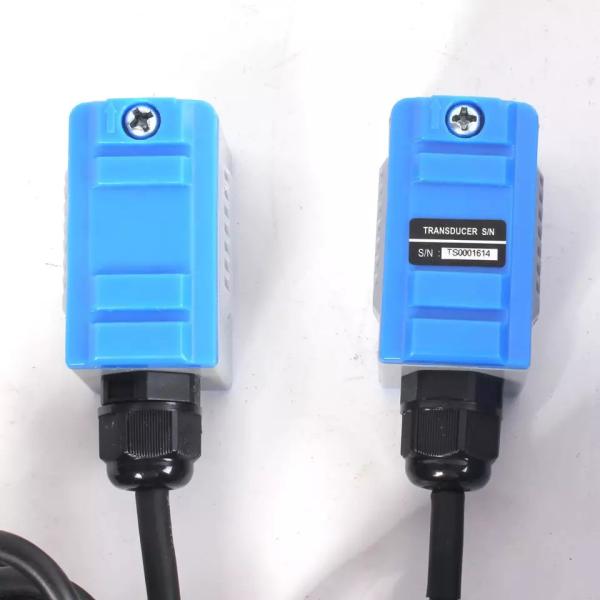

Detaild picture of Wall mount Ultrasonic Flow Meter Clamp On Flow Meter DN15-DN6000 Ultrasonic Liquid FlowMeter
