Air Mass Flowmeter MF5700 MF5706 MF5712
Air Mass Flowmeter MF5700 MF5706 MF5712
Air Mass Flowmeter MF5700 MF5706 MF5712
Air Mass Flowmeter MF5700 MF5706 MF5712
Air Mass Flowmeter MF5700 MF5706 MF5712
Air Mass Flowmeter MF5700 MF5706 MF5712
Air Mass Flowmeter MF5700 MF5706 MF5712
Air Mass Flowmeter MF5700 MF5706 MF5712
Specifications
Brand Name :
Yunyi
Model Number :
MF5700
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
$172~$175
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
10000 units perweek
Delivery Time :
5-8 days
Description

Air mass flowmeter MF5700 MF5706 MF5712

Description Air mass flowmeter MF5700 MF5706 MF5712

The MF5700 series mass flow meters are specifically designed for a wide range of flow metering and control applications. These meters incorporate IoT and wireless data capabilities, allowing for convenient remote monitoring and control. Additionally, they offer the option of mobile power, enhancing their portability and flexibility.

Siargo, the manufacturer of these meters, utilizes their proprietary MEMS (Micro-Electro-Mechanical Systems) mass flow sensing technology, combined with smart electronic circuitry. This combination ensures exceptional cost-effectiveness without compromising performance.

The mass flow sensors integrated into these meters directly measure the mass flow rate with minimal pressure loss. They are also compatible with various wireless transmission protocols, enabling seamless data transfer. Moreover, the meters can control ON/OFF valves, providing additional functionality and control options.

The current models of the MF5700 series mass flow meters are versatile and can be easily applied to numerous process applications. They offer accurate and reliable flow measurement, while their advanced features and connectivity options make them suitable for modern industrial environments.

Specification Air mass flowmeter MF5700 MF5706 MF5712

Model MF5706 MF5710 MF5712
DN size 6mm 10mm 12mm
Flowrate (SLPM) 0~10…25 (06) 0~50…100 (08) 0~150…200 (12)
Accuracy ±(2.0+0.25FS) %
Repeatability 0.5 %
Response time < 2.0 on battery sec
Power supply 4-AA (LR) / 6~15 Vdc with AC adapter
OUtput RS485 Modbus
Wireless LoRa / WIFI / NB-IoT / BT LE
Pressure rating 0.8 MPa
Temperature -10 ~ 55 °C
Humidity <95 (no condensation) %RH
Mechanical connection BSPP
Data interface USB Type-C
User program Front face, 3 keys, or via Modbus
Calibration Air @ 20°C, 101.325 kPa
Storage temperature -20 ~ 70 °C
Note Parameters specified at the calibration conditions.

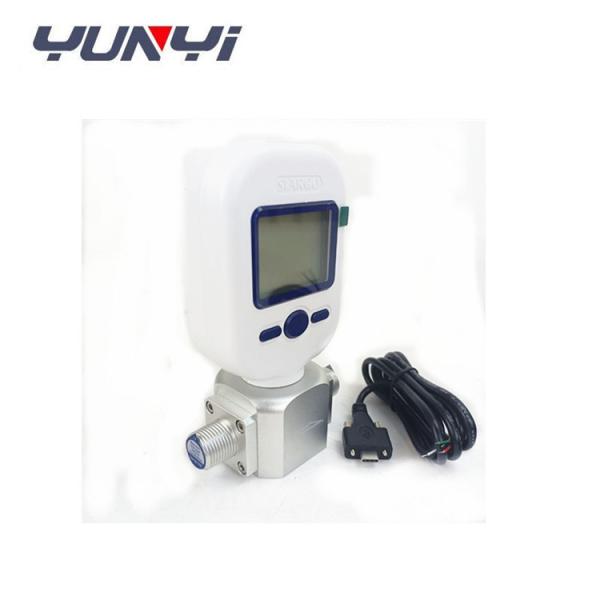

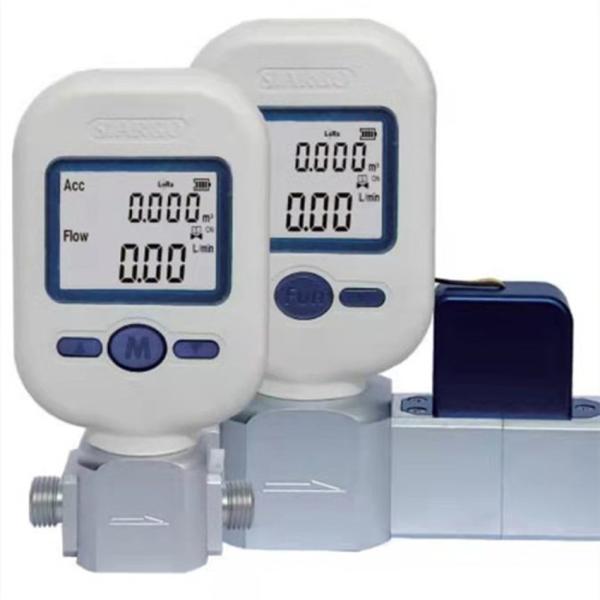

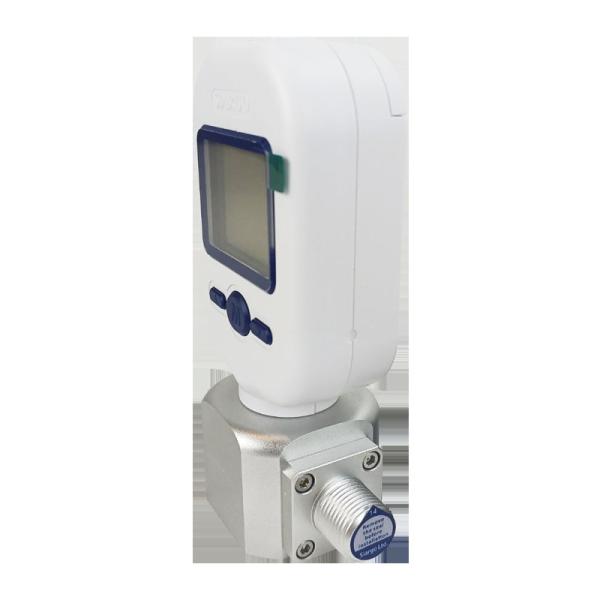

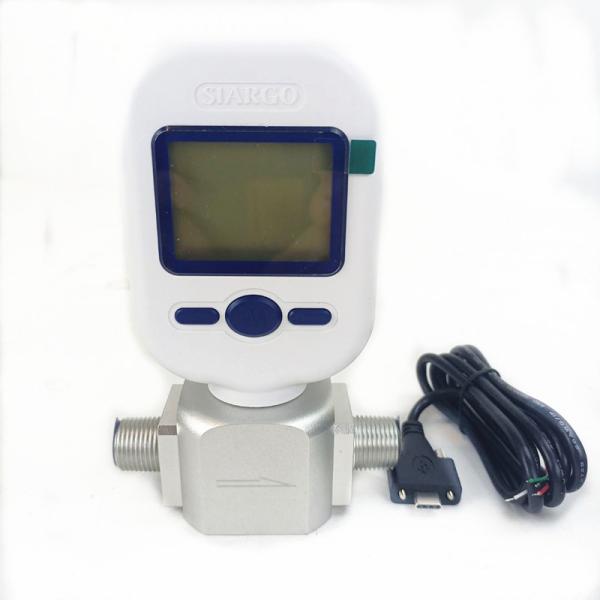

Detailed Images Air mass flowmeter MF5700 MF5706 MF5712

Dimension Air mass flowmeter MF5700 MF5706 MF5712

Model Selection Air mass flowmeter MF5700 MF5706 MF5712
