4-20mA RS485 Electromagnetic Flowmeter Magnetic Water Flow Meter

The 4-20mA RS485 electromagnetic flowmeter, also known as a magnetic water flow meter, is designed for accurate measurement of water flow rates. It features a stainless steel watchcase with increased thickness for durability and a high-pressure flange for withstanding pressures up to 42MPa.

The flowmeter consists of two main components: the sensor and the converter. It operates based on Faraday's law of electromagnetic induction, which allows it to measure the volumetric flow rate of conductive liquids with a conductivity greater than 5μS/cm. It is particularly suitable for measuring the flow of conductive media, serving as an inductive meter.

In addition to measuring the flow of conductive liquids, the electromagnetic flowmeter can also be used to measure the volume of liquid-solid two-phase flow, such as homogeneous liquid suspensions, corrosive liquids (e.g., acids and alkalis), slurries, and pulp in the paper industry. Its versatility makes it applicable in various industries where accurate flow measurement is crucial.

The electromagnetic flowmeter offers a 4-20mA RS485 output, allowing for convenient integration into control systems. This output signal format provides a standardized and reliable means of transmitting flow data. With its robust construction and ability to measure a wide range of liquids, the electromagnetic flowmeter is a reliable choice for water flow measurement applications.

Specification of 4-20mA RS485 Electromagnetic Flowmeter Magnetic Water Flow Meter

Feature of 4-20mA RS485 Electromagnetic Flowmeter Magnetic Water Flow Meter

1. The structure of the instrument is simple and reliable, without moving parts, and has a long working life
2. There is no shut-off and flow-blocking parts, and there is no pressure loss and fluid blockage.
3. No mechanical inertia, fast response, good stability, can be applied to automatic detection and adjustment program control system.
4. The measurement accuracy is not affected by the type of the measured medium and its temperature, viscosity, pressure and other physical parameters.
5. Different combinations of PTFE or rubber lining and HC, HB, 316L, Ti and other electrode materials can meet the needs of different media.
6. All-digital processing, strong anti-interference ability, reliable measurement, high accuracy, and flow measurement range up to 150:1.
7. Full Chinese character menu operation, easy to use and simple to operate.
8. High-definition backlit LCD display.

Application of 4-20mA RS485 Electromagnetic Flowmeter Magnetic Water Flow Meter

Electromagnetic water flow meter is the most accurate and reliable instrument for measuring conductive media. water flow meter widely used in electric power, chemical industry, metallurgy, water conservancy, municipal administration, medicine and food production and other industries.

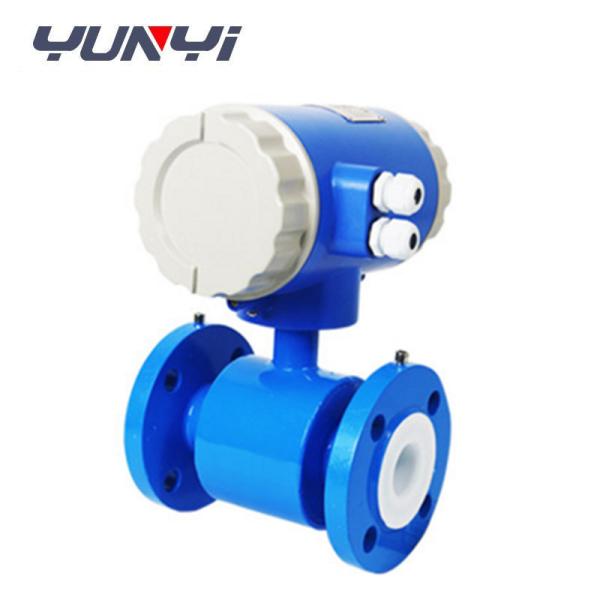

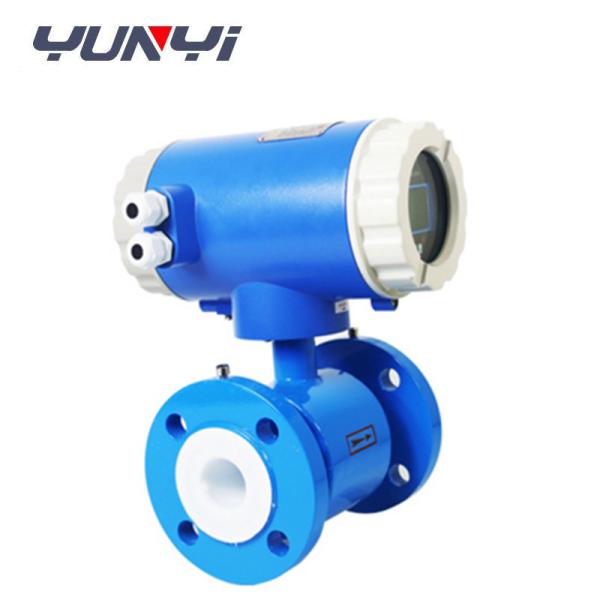

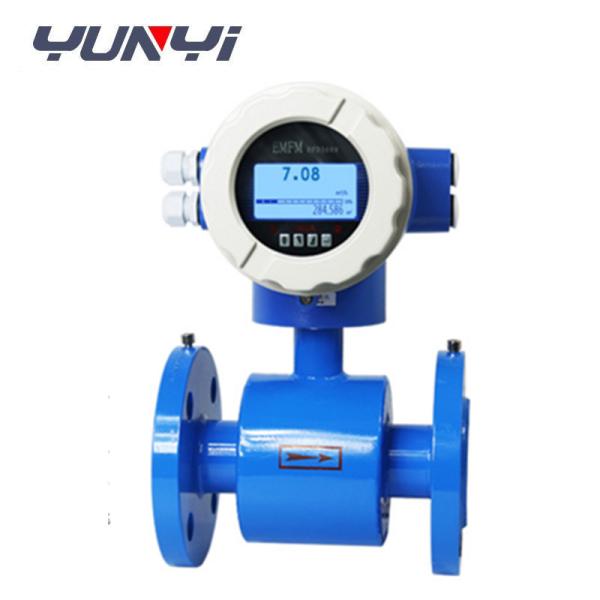

Detaild picture of 4-20mA RS485 Electromagnetic Flowmeter Magnetic Water Flow Meter
