Ultrasonic Flow Meter for HART Communication Protocol Smart Transmitter Operatio
Ultrasonic Flow Meter for HART Communication Protocol Smart Transmitter Operatio
Ultrasonic Flow Meter for HART Communication Protocol Smart Transmitter Operatio
Ultrasonic Flow Meter for HART Communication Protocol Smart Transmitter Operatio
Specifications
Brand Name :
Yunyi
Model Number :
Hart 475
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
450~520USD/PCS
Payment Terms :
T/T, Western Union
Supply Ability :
300pcs per week
Delivery Time :
8 work days
Packaging Details :
Carton Packaging
Product Name :
handheld 475 hart field communicator
Connections :
Dedicated cable, long 1.1m (3.6ft)
Load Capacitance :
0.22uF less
Display :
128 * 64 dot matrix LCD
Power :
4 1.2V rechargeable battery
Working temperature :
-15~55℃
Warranty :
12 Months
Storage temperature :
0`50℃
Description

Ultrasonic Flow Meter for HART Communication Protocol Smart Transmitter Operatio

Description

The HART475 Field Communicator is a specialized device designed for the management and operation of smart transmitters utilizing the HART Communication protocol. It demonstrates exceptional compatibility, enabling seamless interaction with an extensive range of devices such as models 1151, 3051, EJA, ABB, and other flow-related HART protocol instruments from international manufacturers. This device facilitates comprehensive interfacing with various smart transmitters, enhancing their functionality and performance in diverse applications.

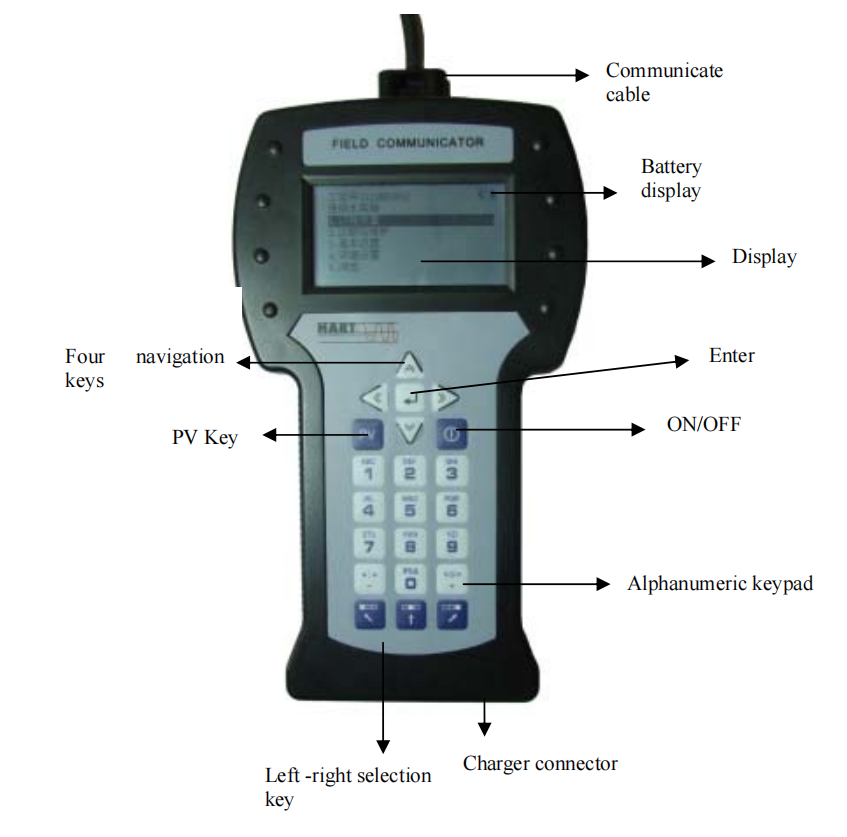

Detailed Image

Ultrasonic Flow Meter for HART Communication Protocol Smart Transmitter Operatio

Ultrasonic Flow Meter for HART Communication Protocol Smart Transmitter Operatio


Specification

Working temperature: -15~55C
Storage temperature: 0`50C
Dimension: 180x80x30(mm)

Communication signal connections Dedicated cable, long 1.1m (3.6ft)
Length: 1Km (0.62 mile) (0.75 ~ 1.25mm2)
Load resistance: 250 ~ 600Ω
Communication lines Load Capacitance: 0.22uF less
Load Inductance: 3.3mH or less
Spacing and power cord: 15cm above (to avoid parallel lines)
Display 128 * 64 dot matrix LCD
Controls Touch switch (four direction keys, 19 function keys, a power switch)
Power supply 4 1.2V rechargeable battery
Size 180 * 80 * 54mm (L * W * H)
Weight 700g

Features
Compatible with HART equipment
Online monitoring and communication
Easy Operation.
Big LCD screen display.
Auto Diagnositc function
Low battery alarm
LCD display, easy readout.

The device comes with: hart 475 field communicator
* Manual operator *1
* Carrying case *1
* charger *1
* communication cable *1
* Operation Manual*1
* 250 ohm resistor *1
