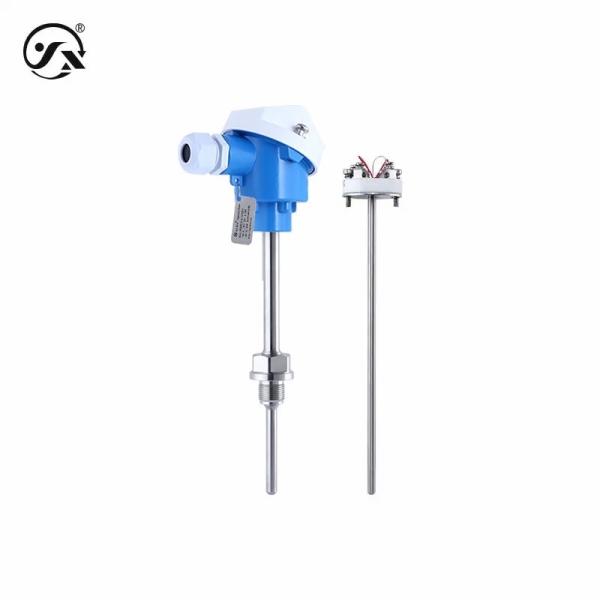

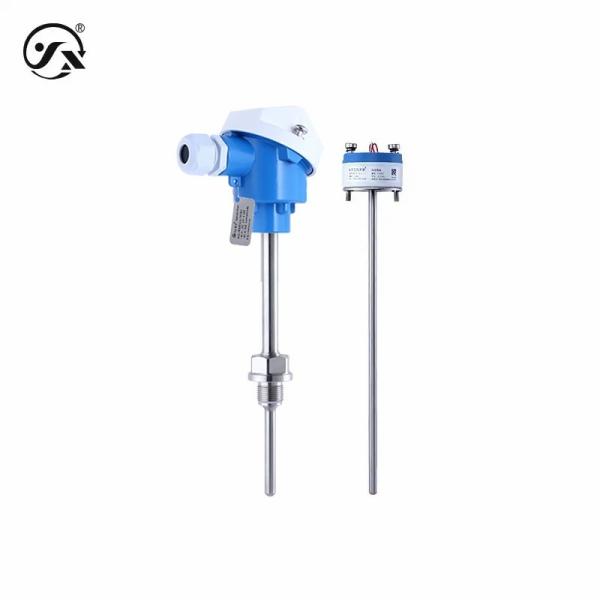

CWDZ33KY Armoured Plug-In Temperature Transmitter Measuring Range -200~500°C
CWDZ33KY Armoured Plug-In Temperature Transmitter Measuring Range -200~500°C
CWDZ33KY Armoured Plug-In Temperature Transmitter Measuring Range -200~500°C
CWDZ33KY Armoured Plug-In Temperature Transmitter Measuring Range -200~500°C
CWDZ33KY Armoured Plug-In Temperature Transmitter Measuring Range -200~500°C
CWDZ33KY Armoured Plug-In Temperature Transmitter Measuring Range -200~500°C
CWDZ33KY Armoured Plug-In Temperature Transmitter Measuring Range -200~500°C
CWDZ33KY Armoured Plug-In Temperature Transmitter Measuring Range -200~500°C
CWDZ33KY Armoured Plug-In Temperature Transmitter Measuring Range -200~500°C
CWDZ33KY Armoured Plug-In Temperature Transmitter Measuring Range -200~500°C
Specifications
Brand Name :
Star merter
Model Number :
CWDZ33KY
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30000 Piece/Month
Range :
-200~500°C (see range parameter selection table for details)
Output :
4~20mA, RS485, Pt100
Power supply :
12~36VDC
Accuracy :
0.25%FS, 0.5%FS
Description

CWDZ33KY Armoured Plug-In Temperature Transmitter General Industry Measuring Range -200~500°C Accuracy 0.25%FS, 0.5%FS

CWDZ33KY armoured plug-in temperature transmitter is carefully designed and uses a special process to enhance dielectric strength and electromagnetic compatibility. Suitable for general industry, a variety of interfaces, suitable for different working conditions of choice.

Base parameters
Measuring medium Liquids or gases, etc. (compatible with contact materials)
Measuring range -200~500°C (see range parameter selection table for details)
Output signal 4~20mA,RS485,Pt100
Supply voltage 12～36VDC
Measuring cell 1*Pt100 (Class 1/3B)
Response time Protection tube φ10mm≈36s (conforms to IEC60751, 0.4m/s water flow, 10°C step)
Stable performance ± 0.1% FS/year
On-time 400ms
Degree of protection IP65 Note: The above protection level refers to the electrical connection after it is complete
Overall weight ≈400g
Accuracy class 0.25%FS,0.5%FS
Resolution Analog output 0.02%FS, digital output 0.1°C
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
Load characteristics
Current type Load ≤{(Us-9)/0.02(Us=Supply voltage)}Ω
Environmental conditions
Ambient temperature -40～85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Overall material
Protective pipe material 304 stainless steel (contact with the medium to be measured)
Process connection 304 stainless steel (contact with the medium to be measured)
Cable locking head Nylon (lock wire diameter 5~9mm)
enclosure Die-cast aluminum
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms complies with IEC60068-2-27 standard
Output limits
4-20mA Output min. 2.5mA, output max 26mA
RS485 Output minimum 0, output maximum 3500/7000
