Specifications
Brand Name :
Star merter
Model Number :
FD01Y
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30000 Piece/Month
Name :
Torque Transmitter Sensor
Output signal :
0~5VDC, 0~10VDC, ±10VDC, ±5VDC, 0~20mA, 4~20mA, 10 ±10mA, 12 ±8mA, RS485
Supply voltage :
12~28VDC
Description

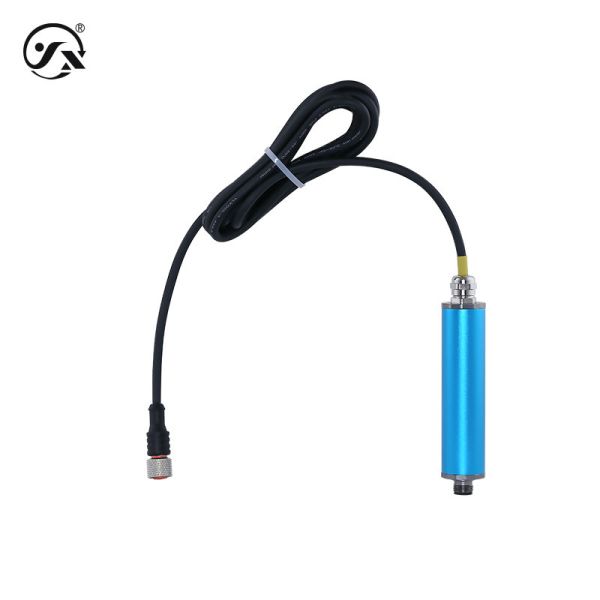

FD01Y Signal Converter Used For Torque Sensor Signal Amplification

FD01Y This signal converter is used for torque sensor signal amplification, which can improve the anti-interference, measurement accuracy and transmission distance of torque sensor.

Base parameters
Output
Output signal RS485,0~5VDC,0~10VDC,±10VDC,±5VDC,0~20mA,4~20mA,10±10mA,12±8mA
Supply voltage 12～28VDC
Linearity ＜0.02%
Output resistance <1Ω
Temperature drift ≤0.02%FS/10K (Reference temperature 23°C)
Nominal load ≥10kΩ,≤400Ω
Power supply residual ripple ≤100mV
Residual ripple at 400Ω ≤10mV
Maximum current of the power loop 30mA
Maximum cable transmission length ≤1000m,≤10m,≤100m
Input
Sensor power supply 3.3V <20mA
Supply voltage temperature coefficient <25ppm/K (Reference temperature 23°C)
Input signal 0.8~2mV/V
Input resistance 10⁹Ω
Cable length included 2m
Degree of protection IP67 (after complete electrical connection)
Environmental conditions
Ambient temperature 0～60℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
Overall weight ≈160g (with 2m cable)
Outer shell 6061 aluminum
Plug material Interior: PUR polyurethane Exterior: PVC (black) Female pin: Copper gold plated Sealing ring: FKM (fluoroelastomer) Lock mother: brass nickel plated
Cable material PUR polyurethane (black) φ5 shielded cable 4*0.2mm
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
