IP68 PT100 Temperature Indicator Transmitter CWDZ05TY Armored Temperature Sensor
IP68 PT100 Temperature Indicator Transmitter CWDZ05TY Armored Temperature Sensor
IP68 PT100 Temperature Indicator Transmitter CWDZ05TY Armored Temperature Sensor
IP68 PT100 Temperature Indicator Transmitter CWDZ05TY Armored Temperature Sensor
IP68 PT100 Temperature Indicator Transmitter CWDZ05TY Armored Temperature Sensor
IP68 PT100 Temperature Indicator Transmitter CWDZ05TY Armored Temperature Sensor
IP68 PT100 Temperature Indicator Transmitter CWDZ05TY Armored Temperature Sensor
IP68 PT100 Temperature Indicator Transmitter CWDZ05TY Armored Temperature Sensor
IP68 PT100 Temperature Indicator Transmitter CWDZ05TY Armored Temperature Sensor
IP68 PT100 Temperature Indicator Transmitter CWDZ05TY Armored Temperature Sensor
Specifications
Brand Name :
Star merter
Model Number :
CWDZ05TY
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30000 Piece/Month
Measuring element :
platinum resistance Pt100 (1/3B class)
Measuring range :
-50~300°C, -200~300°C, -50~500°C
Output :
PT100
Name :
Armored Temperature Sensor
Description

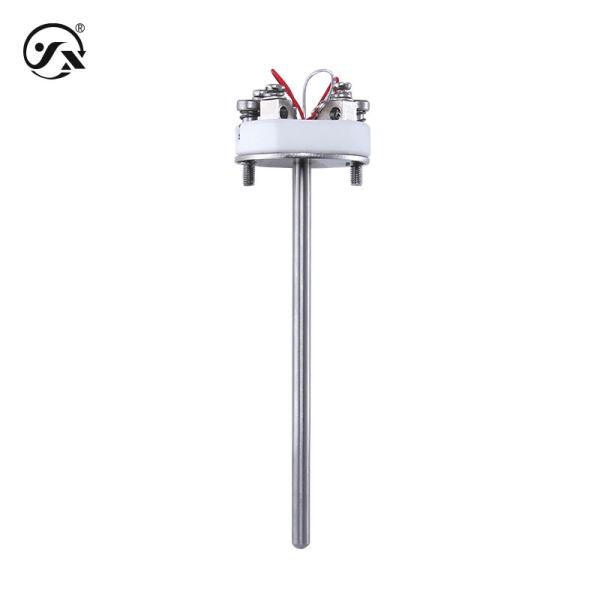

CWDZ05TY Armored Temperature Sensor Measuring Range -50～300℃,-200～300℃, -50 ～500℃ 1*Pt100 (Class 1/3B) General Industry

CWDZ05TY armoured temperature sensor core is suitable for armoured temperature transmitters that meet this size. The dielectric strength is enhanced by a special process.

Base parameters
Measuring medium Solid, liquid or gas (compatible with contact material)
Measuring range -50～300℃,-200～300℃, -50～500℃
Measuring cell 1*Pt100 (Class 1/3B)
Response time ≤18s (conforms to IEC60751, 0.4m/s water flow, 10°C step)
Stable performance ± 0.1% FS/year
Degree of protection IP68
Electrical protection
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Overall material
Cable Header ceramics
Outer shell 304 stainless steel
Cable 0.2 compensation cable
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms complies with IEC60068-2-27 standard

Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
