P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel
P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel
P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel
P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel
P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel
P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel
P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel
P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel
Specifications
Brand Name :
Charming
Model Number :
P4,P5,P8
Certification :
CE, ROHS, LVD, EMC, CB, BIS, UL
Place of Origin :
china
MOQ :
5 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,paypal,cash
Supply Ability :
1000 PCS per week
Delivery Time :
5 Working Days after Payment
Packaging Details :
Carton Case, Wooden Case, Flight Case
Max Power Consumption :
1200w
Cabinet Material :
Die-casting aluminum
Cabinet Weight :
38KG
Design :
suctomized
Function :
outdoor using
Led Size :
SMD3535
Pixel :
P4,P5,P8,P10
Pixel Configuration :
RGB
Type :
P5 Outdoor LED Display
Viewing Distance :
8-150M
Working Humidity :
10%~90%RH
Description

Product Description

P5 P8 Outdoor Video Wall Led Display Big Billboard Waterproof

P5/P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel

Product Description

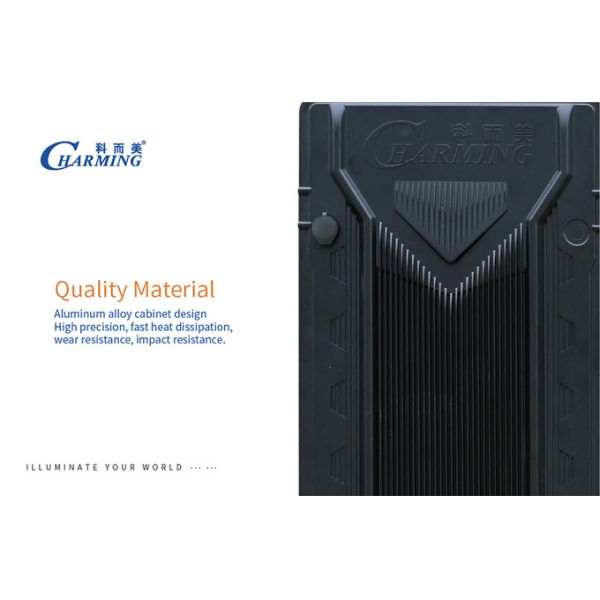

1. Fine design can be used outdoor application, good heat dissipation, no need air conditioners.

2. Seamless surface, no gaps, more beautiful display effect.

3. Can support front maintenance customazation.

4. High quality material, wear resistance and impact resistance.

5. Strong rigidity, high quality.

6. Wider color range, color reproduction perfectly, more vivid display pictures.

P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel

Technical Specifications

Type Number

 M4

M5

M8

Pixel Pitch
4.0mm
 5.0mm 8.0mm

Pixel Density
62500 Dot/㎡
 40000 Dot/㎡
15625 Dot/㎡

Scan Type
1/10 Scan
 1/8 Scan 1/5 Scan
Brightness
≥5000CD/㎡
≥6000CD/㎡
≥5500CD/㎡
Best Viewing Distance
≥4M
≥5M
≥8M
Cabinet Resolution 320x240 256x192 160x120

Refresh Rate(Hz)

 3840Hz / 1920Hz

Module Size

 320x160mm

Cabinet Max Power

 1200W

Viewing Angle

 130°

IP Rate

 IP65

Cabinet Material

 Magnesium/Aluminum Alloy

Maintenance

 Back Service

Working Temperature

 -30~60℃

Working Humidity

 10%~90%RH

Life Span

 ≥50000 Hours

Working Voltage

 AC110V/220V, 50/60HZ

P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness PanelP5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel

Detail Showing

P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel

P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness PanelP5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness PanelP5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel

Front/Back Access is available
Modules, power supplies, and receiving cards can be maintained and used in various environments.

P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel

APPLICATION WITH STAGE, EVENT, CONCERT, EXHIBITION, CHURCH, RALLIES, AWARD SHOWS...

P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness PanelP5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel

Our Advantages

1. 20 years led manufacturer

Our company was established in 2003, so we have almost 20 years history to produce high quality products.

2. Professional led leader

Going through 20 years,we have own factory and we have built whole-set management system, R&D department, SMT department, 24 hours online technician department.Therefore, we are enough to have professional technology.

3. Patient Service Team

We have a profeesional team to solve the tech problem, answer what you are confused and meet your needs.

4. Import more than 150 countries

So far, we have imported more than 150 countries and got the support and trust from our customers.

P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel

P5 / P8 Outdoor LED Screen Wall Display For Advertising Brightness Panel
