Specifications
Brand Name :
AHL
Model Number :
CP15-31D
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1 Square Meter
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5,000 square meters per month
Delivery Time :
20-25 day
Packaging Details :
Wooden box or Flight case
Pixel configuration :
1R1G1B
LED type :
DIP 346
Cabinets position :
Vertically/Horizont
Waterproof :
IP67
Description

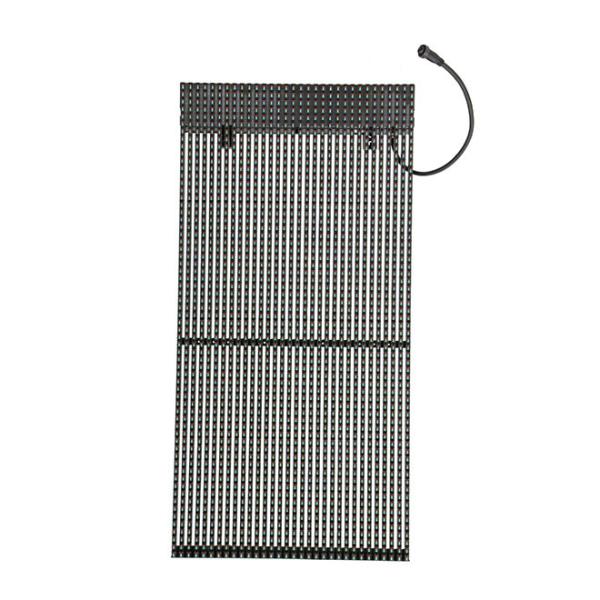

DIP Media LED Mesh Facade EV series

1. Design construction and flexible connect, can fold and roll

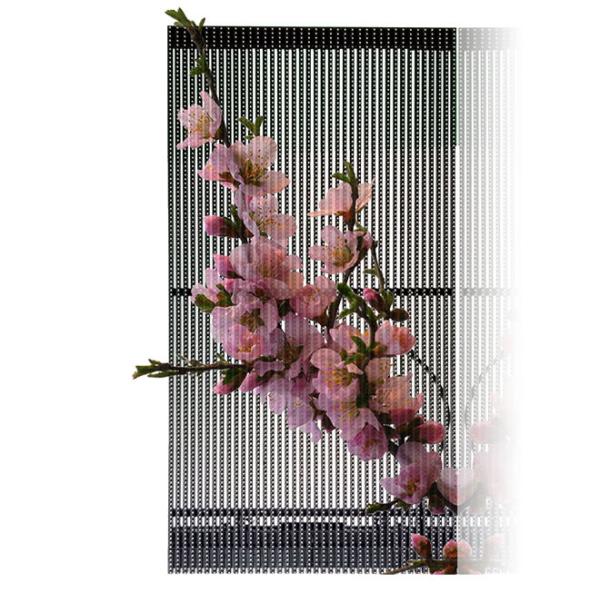

2. Can display various video, cartoon, text, picture and so on

3. Embedded with wireless technology; with grid software easy to edit display file

4. Easy to install

5. Waterproof, low/high-temperature resistance

LED Mesh Facade Product features

LED Mesh Facade Specification:

Parameter Specification
Product model EV12 EV15 EV 20 EV15-31 EV25 EV25-50 EV 31
Pixel configuration 1R1G1B
LED type DIP 346
Pixel Pitch(mm) 12.5 mm 15.625 mm 20 mm 15.625/31.25 mm 25 mm 25-50 mm 31.25 mm
Cabinet size(W×H×D) L500×H1000mm L500×H1000mm L520×H1000mm L500×H1000mm L500×H1000mm L500×H1000mm L500×H1000mm
Cabinet resolution(W×H) 40×80 32 × 64 26 ×50 16×64 20×40 10×40 16×32
Pixel density 6400 dots/㎡ 4096 dots/㎡ 2500 dots/㎡ 2048 dots/㎡ 1600 dots/㎡ 800 dots/㎡ 2048 dots/㎡
Cabinets position Vertically Horizont/Vertically Horizont/Vertically Vertically Vertically Vertically Vertically
Transparency level 20% 30% 36% 58% 58% 75% 65%
Brightness ≥4500nit ≥7500nit ≥7000nit ≥6500nit ≥6000nit ≥6000nit ≥6000nit
Weight 25 KG/㎡ 21 KG/㎡ 19 KG/㎡ 16 KG/㎡ 18 KG/㎡ 18 KG/㎡ 18 KG/㎡
Maximun power consumption 480W/㎡ 400W/㎡ 375 W/㎡ 480W/㎡ 480W/㎡ 480W/㎡ 480W/㎡
Average power consumption 160W/㎡ 130W/㎡ 125W/㎡ 160W/㎡ 160W/㎡ 160W/㎡ 160W/㎡
Viewing Angle H100°/V60°
Waterproof IP67

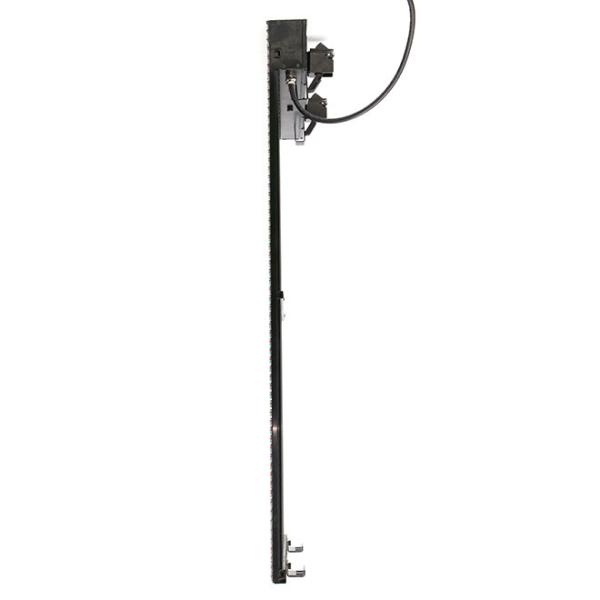

Cabinets width 113mm
Width after install 150mm
Wind resistancy level 12
Fire safety 10S/cabinet
Service method Front & rear
Scanning Static
White balance 3200-9300K
Frame-changing frequency 60Hz
Working temperature -40℃- 60℃
Storage temperature -55℃120℃
Life time ≥100,000 hours
Input voltage(V) AC110-220V
Grey scale 16bit

Application scopes

widely applied to the outdoor advertisement, stage shows, advertising screes, concerts, stadium display screen and so on.

Product Description & Features & advantages:

1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"

2. Brief introduction:

  • High Portability with strong water and wind resistance.
  • High stability of both screen and image performance, with Integrated light bar structure..
  • High protection level: IP65.
  • High: Brightness keeps continuously work for 96 h even in a harsh place.
  • Font and rear maintenance.


3. Main application:

  • Outdooroversize building facade, glass LED video wall, transparent LED curtain facade.
  • Fixed installation.
