Specifications
Brand Name :
AHL
Model Number :
M6
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1 Square Meter
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5,000 square meters per month
Delivery Time :
20-25 day
Packaging Details :
Wooden box or Flight case
Pixel configuration :
1R1G1B
LED type :
6* SMD3535
Cabinets position :
Vertically/Horizontally
Waterproof :
IP65
Description

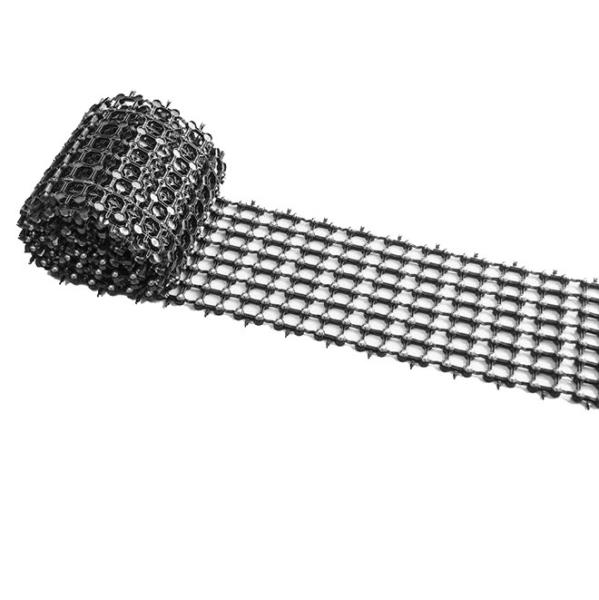

LED Mesh Facade M series

Mesh Facade is flexible full-color fashionable led display with creativity and artistry.It is IP66-rated, UV-resistant, and designed to withstand outdoor elements, rendering it a reliable solution for both indoor and outdoor environments. By providing a visual medium capable of being scaled to any size,complete with wide-angle viewing of more than 120 degrees, application for various media solutions.( advertising, mega screen, media facade, etc )

LED Mesh Facade Specification:

Parameter Specification
Model Name LED Mesh screen M 6
Pixel Pitch (pixel pitch can be customized) 37.5mm 56.25mm 75 mm
Pixel Configuration 6*SMD2727
Panel Size (size can be customized) 380*4800mm 450*7200mm 600*9600 mm
Panel Resolution 8*128 8*128 8*128
Panel Weight 10.5 kg/sqm 5.5 kg/sqm 3.5 kg/sqm
Brightness 7200nits (2727 SMD) 5100 nits (2727 SMD) 2400 nits (2727 SMD)
IP Rating (Front/Rear) IP 65
Fresh Rate 1000-3000Hz
Transparent Rate 55% 75% 85%

Max Power Consumption

 600 W/m² 400W/m² 250W/m²
Color Processing 12 bit
Viewing Angle (H/V) 140 /110 ° °
Operating Temperature -40~45°
Main Power Source AC100-240V; 50/60Hz
Input Voltage 24 V DC
Humidity 10~90% RH
Life Time 100000 Hours

Application scopes

widely applied to the outdoor advertisement, stage shows, advertising screes, concerts, stadium display screen and so on.

Product Description & Features & advantages:

1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"

2. Brief introduction:

  • High Portability with strong water and wind resistance.
  • High stability of both screen and image performance, with Integrated light bar structure..
  • High protection level: IP65.
  • High: Brightness keeps continuously work for 96 h even in a harsh place.
  • Font and rear maintenance.


3. Main application:

  • Outdooroversize building facade, glass LED video wall, transparent LED curtain facade.
  • Fixed installation.
