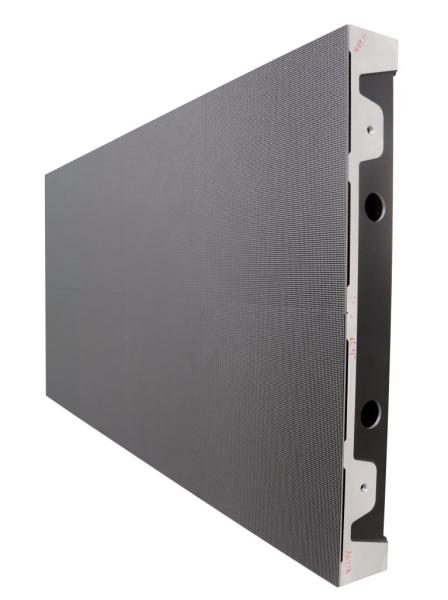

Slim Profile Small Pitch LED Display 1.2-2.00 Mm Small Pixel Pitch 960x480mm
Slim Profile Small Pitch LED Display 1.2-2.00 Mm Small Pixel Pitch 960x480mm
Specifications
Brand Name :
AHL
Model Number :
SP Series
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1 Square Meter
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5,000 square meters per month
Delivery Time :
20-25 day
Packaging Details :
Wooden box or Flight case
Pixel Configuration :
SMD 1010, SMD 1515, SMD2020
Panel Size :
960*480*60 mm; 480*480*60 mm
Panel Weight :
12 kg/unit & 6 kg/unit
Maintainance method :
Front service
Description

Specification:

Parameter Specification
Model Name LP 1.29 LP 1.57 LP 1.875 LP 2.5
Pixel Pitch 1.29 mm 1.579 mm 1.875 mm 2.5 mm
Pixel Configuration SMD 1010, SMD 1515, SMD2020
Panel Size 960*480*60 mm; 480*480*60 mm
Panel Resolution 960X480 mm 745*372 612*305 512*256 384*192
Panel Weight 12 kg/unit & 6 kg/unit
Pixel per ㎡ 600925 405695 284444 160000
Brightness 200-800nits 200- 1000 nits
IP Rating (Front/Rear) Back: IP44, Front: IP41
Fresh Rate 1920/ 3840 HZ - on request
Max / Avg Power Consumption per m2 650/235W/m² 600/205W/m² 600/205W/m² 690/255W/m²
Color Processing 16bit
Viewing Angle (H/V) 160 /140 °
Operating Temperature -10~45°
Main Power Source AC100-240V; 50/60Hz
Humidity 10~90% RH
Life Time 100000 Hours
Maintainance method Front service
Certification CE, EMC, Rohse - available on demand

Product Description & Features & advantages:

1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"
