Aluminum Alloy 4000 Nits Sports Led Screen Hire For Events waterproof
Aluminum Alloy 4000 Nits Sports Led Screen Hire For Events waterproof
Specifications
Brand Name :
AHL
Model Number :
GA series curved 45 °
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1 Square Meter
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5,000 square meters per month
Delivery Time :
20-25 day
Packaging Details :
Wooden box or Flight case
Panel size (W×H)   (mm) :
500×500X72/ 500×1000X72
Panel weight   (kg) :
8.5 / 13.5
Display refresh   rate (Hz) :
1920/3840 (optional)
Panel material :
Die cast Aluminum
Ingress protection (front/rear) :
Indoor: IP30/ Outdoor: IP 65
Pixel configuration ( Indoor) :
SMD 1921
Description

Aluminum Alloy 4000 Nits Sports Led Screen Hire For Events waterproof

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

2. Nice appearance and simple structures.

3. Jointed correctly, being instalLED & dismounted by one person without tool.

4. Humanized operating interface with breakdown indicator lights, easy to maintain.

5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

GA series

500×500X72/ 500×1000X72 Specification
Product name GA 2.6 GA-2.9 GA-3.91 GA-4.81 GA-5.95 GA-6.25
Application envionment Indoor rental Indoor / Outdoor rental
Pixel pitch (mm) 2.6 2.9 3.91 4.81 5.95 6.25
Brightness (nits) Indoor: 960-1200; Outdoor: 4000-6500
Pixel configuration ( Indoor) SMD 2121 SMD 2121 SMD 2121 SMD 2121 SMD 3528 SMD 3528
Pixel configuration (Outdoor) 　 SMD 1921 SMD 1921 SMD 1921 SMD 2727 SMD 2727
　
Panel size (W×H) (mm) 500×500X72/ 500×1000X72
Panel weight (kg) 8.5 / 13.5
Pixel per m2 147929 118906 65410 43222 28247 25600
Pixel density per panel 500X500 192 × 192 173 × 173 128 х 128 104× 104 84 х 84 80 × 80
Pixel density per panel 500X1000 192 × 385 173 × 345 128 х 256 104× 208 84 х 168 80 × 160
Display refresh rate (Hz) 1920/3840 (optional)
Input power per m2 (Max/Avg.) (w/㎡) 620/220 600/210 540/190 380/150 560/195 550/190
Panel area (㎡) 0.25/ 0.5
Panel material Aluminum alloy
Ingress protection (front/rear) Indoor: IP30/ Outdoor: IP 65
Certification on request CE, RoHS, EMC
Curved locks option ± 10 °
Maintenance Front/Back service- optional

Features:

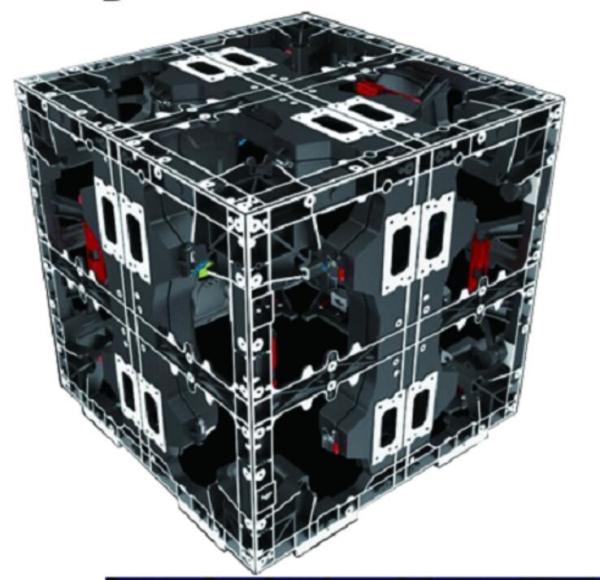

1. Cabinet only weighs 13.5kg, thickness 75mm, saving transportation cost and
labor intensity;
2. Spring locks connect the cabinets vertically, hanging max 15 cabinets in a line;
3. Fast spring locks connect the cabinets horizontally, only 10 seconds for per
cabinet;
4. Macromolecular flexible mask with glareless surface and better contrast ratio;
5. Nanotechnology and unique positioning system, making the installation and
dismantlement in one step;
6. Signal and power indicator & reset button well shows the working condition
of the whole screen;
7. All external cable with quick inserted plug for easy installation and
maintenance;
8. Adopting Silica gel to make the cabinet waterproof and sealed, IP65.
